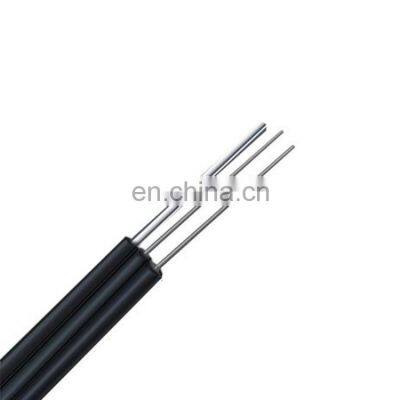

G652d Steel Wire Strength Member FTTH Fiber Drop Cable 4 Core Single Mode Fiber Optic Cable
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Single Mode Overhead G652D G657A LSZH 1 Core Flat Drop Fiber Optic Cable
-
GYTC8S Outdoor Figure 8 Aerial Multi Core/Single Mode 8 Core Fiber Optic Cable
-
GYTC8S Self-supporting Figure 8 Multi Core Overhead Armored 4 Core Fiber Optic Cable
-
GYTC8S Outdoor Aerial Multi Core Single Mode G652d Figure 8 Fiber Optic Cable 10 Core
-
Self Supporting Figure 8 Outdoor Single Mode GYTC8S 4 6 8 12 24 36 48 Core Fiber Optic Cable Price
-
GYTC8S Outdoor Overhead Armored Self-Supporting Figure 8 Single Mode 4 Core Fiber Optic Cable
Product Description
Related Products
Product Description
Product description:
The FTTH indoor cable is centered on the optical communication unit, with two parallel non-metallic reinforcing elements (FRP) placed on both sides, and finally, a black or colored low-smoke halogen-free sheath is extruded.
Features:
· Special bend-resistant fiber to provide greater bandwidth and enhance network transmission characteristics;
· Two parallel FRPs make the cable have good compression resistance and protect the fiber;
· The cable has a simple structure, light weight and strong practicability;
· Unique groove design, easy to peel, easy to connect, simplify installation and maintenance;
· Low-smoke, halogen-free flame retardant jacket, environmentally friendly.
The FTTH indoor cable is centered on the optical communication unit, with two parallel non-metallic reinforcing elements (FRP) placed on both sides, and finally, a black or colored low-smoke halogen-free sheath is extruded.
Features:
· Special bend-resistant fiber to provide greater bandwidth and enhance network transmission characteristics;
· Two parallel FRPs make the cable have good compression resistance and protect the fiber;
· The cable has a simple structure, light weight and strong practicability;
· Unique groove design, easy to peel, easy to connect, simplify installation and maintenance;
· Low-smoke, halogen-free flame retardant jacket, environmentally friendly.
Fiber count | 1/2/4/6/8/12 |
Color Of fiber | Blue Orange Green Brown |
Fiber Type | G652D/G657A1/G657A2 |
Strength member | Steel wire/FRP/KFRP |
Supporting messenger wire | 1.0MM*x1 steel wire |
Outer sheath | LSZH Lower smoke zero halogen frame retardant & UV Anti |
Cable Diameter dimensions | 2.0( Height) × 5.0W ± 0.1 mm(width) |
Operation temperature range | -20 ℃ to + 70 ℃ |
Installation temperature range | -20 ℃ to + 60 ℃ |
Transport and storage temperature range | -20 ℃ to + 70 ℃ |
Tension Load (N) | Short term :800N Long term :500N |
Crush Load(N) | Long term 1000 N/100mm Short term:2200N/100mm |
Minimal installation bending radius | 30 x OD |
Minimal operation bending radius | 15 x OD |
Cable marking | The marking length 1meter apart , as required |
Company Introduction
Shanghai Tanghu Optical Fiber Equipment Co., Ltd. is a high-tech enterprise specializing in the production of optical
communication products, with nearly 20 years of industry experience.At present, the company has passed the ISO9001 certification,has two production bases in Shenzhen and Xuzhou, and has a large modern warehouse in Shanghai.The company covers an area of 20000 m2, with more than 500 employees and annual sales of more than 300 million RMB.
communication products, with nearly 20 years of industry experience.At present, the company has passed the ISO9001 certification,has two production bases in Shenzhen and Xuzhou, and has a large modern warehouse in Shanghai.The company covers an area of 20000 m2, with more than 500 employees and annual sales of more than 300 million RMB.
Company has roboticized production and testing equipment, since its inception, the company has been committed to product innovation and R&D, the products include cable, patch cord, optical transceiver, POE switch, OPM, VFL, optical fiber fusion splicer, optical divider, fiber boxes, etc., which are widely used in the plot construction of campus network, security, monitoring, radio and television transmission, FTTH, etc.
The products are exported in large quantities to more than 60 countries and regions including the USA, Australia, India, Russia, Brazil and South Africa and so on, providing innovative technologies and product solutions for global telecom operators and enterprise network customers, and enabling users around the world to enjoy all-round communication such as voice, data, multimedia and wireless broadband.
Why Choose Us
Exhibition
FAQ
Q: What about delivery time?
A: We have big warehouses in Shanghai, also in Shenzhen factory, providing instant delivery service. Most products can be
delivered within 3~7 days.
Q: What is your warranty period?
delivered within 3~7 days.
Q: What is your warranty period?
A: We provide one year of unconditional warranty on our products for the manufacturing defects.
Q: Why should we buy from you?
Q: Why should we buy from you?
A: We are committed to provide best quality products at minimum delivery time and competitive price. We believe this is what customer wants. We are satisfied until customers are.
Q: Can you provide OEM, ODM service?
Q: Can you provide OEM, ODM service?
A: Yes. We have factories in Shenzhen and Xuzhou, we can make products according to your requirements.
Q: Do you provide free samples?
A: Yes, but the buyer should bear the shipping costs.
Q: What is your payment terms?
A: We accept Alibaba Trade Assurance, Western Union, Paypal, T/T, L/C, etc.
A: We accept Alibaba Trade Assurance, Western Union, Paypal, T/T, L/C, etc.
