Fiber Optic SC/A PC to SC/AP C Jumper sm 2 core 4 core ftth drop cable fiber optic cable
- 1000 per Month
- T/T Credit Card
You May Like
-
Outdoor FTTH 2fo Drop Cable Flat Type optical fibra cable for Vietnam market
-
China factory ftth fibra optical drop wire cables price Ecuador market suitable fiber optic cable figure 8
-
1000m/roll 2 cores 3 steel wire outdoor g657 ftth fiber optic drop wire cable lszh sheath g657a fiber optic cable for Malaysia
-
good quality Price FTTH Indoor Outdoor Jacket Sheath Fiber Optical Drop Wire Cable
-
Single Core FTTH Self-Support Butterfly Shape LSZH 2cores Outros Cabos Fibras Opticas Revest
-
GJXH single-mode self-supporting FTTH Bow-type LSZH sheath material 2 core ftth drop cable
Product Description

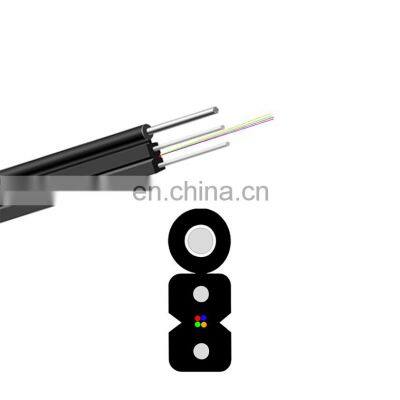

Fiber Optic SC/AP C to SC/A PC Jumper sm 2 core 4 core ftth drop cable fiber optic cable
Product Characteristics
• Flex durable fiber to provide greater bandwidth and enhance network transmission characteristics
• Two parallel metallic strength member to protect the fiber and provide adequate tension and pressure
• single metallic strength member makes optical cable having good tensile performance
• Optical cable has simple structure, light weight and strong practicability
• unique groove design, Easy peeled off and splice, simplify the installation and maintenance
• Low smoke halogen-free flame-retardant sheath, pro-environment
Application
• Indoor wiring system
• FTTH, terminal system
• Indoor shaft,building wiring
Structural Parameter
|
Model No. |
Count |
Cable Size (mm) |
Weight (kg/km) |
Tension |
Crush (N/100mm) |
Bending Radius Static / dynamic |
|
GJYXCH-1Xn |
1 |
(2.0±0.1)×(5.0±0.1) |
20 |
300/600 |
1000/2200 |
15/30 |
|
GJYXCH-2Xn |
2 |
(2.0±0.1)×(5.0±0.1) |
20 |
300/600 |
1000/2200 |
15/30 |
|
GJYXCJH-1Xn |
1 |
(2.0±0.1)×(5.6±0.1) |
21 |
300/600 |
1000/2200 |
15/30 |
|
GJYXCDH -4Xn |
4 |
(2.0±0.2)×(6.0±0.2) |
22 |
300/600 |
1000/2200 |
15/30 |
Optical Fibre Performance
|
Type |
Fiber attenuation(+20℃) |
OFL |
Band Width |
10G Ethernet link length |
Minimum bending radius |
|||
|
Condition |
1310/1550nm |
850/1300nm |
850/1300nm |
850nm |
850nm |
/ |
||
|
Typical value |
MAX |
Typical value |
MAX |
|||||
|
Unit |
dB/km |
dB/km |
dB/km |
dB/km |
MHZ.km |
MHZ.km |
m |
mm |
|
G657A1 |
0.36/0.22 |
0.5/0.4 |
--- |
--- |
--- |
--- |
--- |
10 |
|
G657A2 |
0.36/0.22 |
0.5/0.4 |
--- |
--- |
--- |
--- |
--- |
7.5 |
|
OM3 |
--- |
--- |
3.0/1.0 |
3.5/1.5 |
≥1500/500 |
≥2000 |
≤300 |
30 |
|
OM4 |
--- |
--- |
3.0/1.0 |
3.5/1.5 |
≥3500/500 |
≥4700 |
≤550 |
30 |
Transportation / storage / use temperature: -20 ℃ ~ + 60 ℃
The fiber optic cable are packed in carton, coiled on Bakelite & wooden drum.
During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture; kept away from high temperature and fire sparks; protected from over bending and crushing; protected from mechanical stress and damage.
• 24 hours online service • Free sample
COMPANY PROFILE
Hunan feibo guangtong communication equipment co.,LTD is a comprehensive high-tech optical fiber communication product development,production,sales and network engineering.
FEIBOER products mainly include: indoor & outdoor fiber optical cable, ADSS, OPGW, FTTH drop cable,patch cord,pigtail and other series and optical passive device series.View more
1.Are you the real manufacturer?
Us. We are the real manufacturer with 18 year’s history.
2.What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km.
3.What’s delivery time?
Us. The general delivery time is 7-10 days after order deposit.
If order quantity is more than 100000km, please check with us.
4.Can you supply customized products and logo?
Us.Yes. We provide OEM service.
6.What’s your payment terms?
Us. We accept T/T,L/C,Western Union, etc. 30% in advance and 70% before shipment.
7.Can you offer free samples?
Us. Yes,we provide free samples.
