Product Description
Manufacturers Optic Drum Aerial 1 Core Price Asu80 Optical 2 1km 24 Adss Outdoor 12 4 Drop 6 Single Mode 8 Cores Cable Fiber

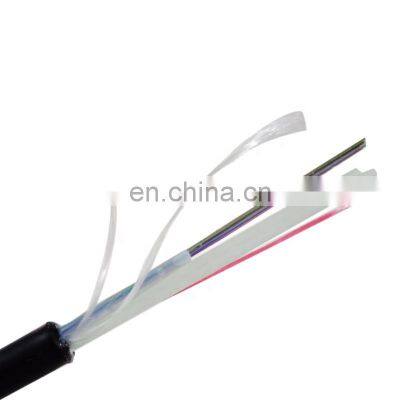

The fibers,250um, are positioned in a central tube made of a high modules plastic. The tubes are filled with a water-resistant filling compound. Two paralled FRP and outer sheath as a non-metallic strength member.
1-12 cores colored fiber.
Non-metallic self-supporting member.
Good-performance sheath materials.
Features:
Non-metal design can prevent the cable from radio interference and magnetic wave interference
Central tube filling compound ensure good moisture resistance performance
Compact structure
Able to be terminated onsite
All dielectric structure, resistant to electromagnetic interference
Easy for stripping, splicing, simplified installation and maintenance
Application:
Outdoor cabling
Suitable for aerial dropping
Technical parameters:
|
No. of cable |
1-12 |
|
|
Fiber Model |
G.652D |
|
|
Strength Member |
Material |
FRP |
|
Diameter(±0.05)mm |
1.8 |
|
|
Loose Tube |
Material |
PBT |
|
Diameter(±0.06)mm |
1.8 |
|
|
Thickness(±0.03)mm |
0.35 |
|
|
The Max.Core NO./Tube |
12 |
|
|
Outer Sheath |
Material |
PE |
|
Cable Diameter(±0.2)mm |
6.7 |
|
|
Cable Weight(±5)kg/km |
38 |
|
|
Min. bending radius |
Without Tension |
10.0×Cable-φ |
|
Under Maximum Tension |
20.0×Cable-φ |
|
|
Temperature range (℃) |
Installation |
-20~+60 |
|
Transport&Storage |
-40~+70 |
|
|
Operation |
-40~+7 |
|
