Home > Products > Inductor > High Impedance 40ohm 100ohm 500ohm SMD Common Mode Filters Choke Inductor

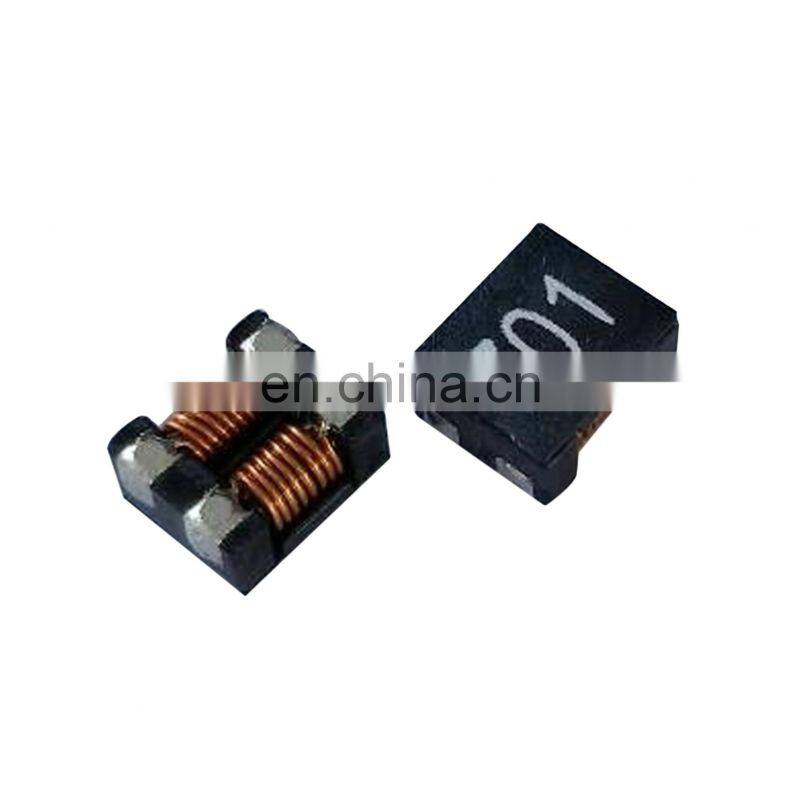

High Impedance 40ohm 100ohm 500ohm SMD Common Mode Filters Choke Inductor
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Wireless Charging Induction Coil
-
Wireless Charging Induction Coil
-
Customized Copper Wire Ferrite Rod Core Coil Inductor 10uh 100uh
-
Custom Copper Air Core Coil Inductor
-
Radial Lead Ferrite DR Core Inductors for Power Supplies and DC/DC Converters
-
3 Pins Radial Ferrite Drum Core Inductor Buzzer Power Inductor
Product Description
Product Description

The common-mode (CM) choke, where two coils are wound on a single core, is useful for suppression of electromagnetic interference (EMI) and radio frequency interference (RFI) from power supply lines and for prevention of malfunctioning of power electronics device. It passes differential currents (equal but opposite), while blocking common-mode currents.The magnetic flux produced by differential-mode (DM) currents in the core tend to cancel each other out since the windings are negative coupled. Thus, the choke presents little inductance or impedance to DM currents. Normally this also means that the core will not saturate for large DM currents and the maximum current rating is instead determined by the heating effect of the winding resistance.
Features
1.Low profile and small size SMD;
2.High frequency;
3. High Saturation materials;
4.Low EMI radiation.
Applications
1.DC/DC,DC/AC converters;
2.Isolation/coupling(transformer);
3.Input filter;
4.EMI/RFI SUPPRESSION.
