Copper Wire Winding Coil Ferrite Rod Core Choke Coil High Frequency Inductor
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
2R7 27uH 6R8 6.8uH 10uH SMD Chip Bead Inductor for Signal Line 1210 Size 28 Ohm 4A
-
Competitive Factory Price SMD Shielded Power Inductor With RoHS
-
China Factory Adjustable Inductor IFT Coil /Tuneable Inductor
-
Variable IFT Inductor RF Choke Coil Inductor 33uh IFT Inductor
-
Factory Toroidal Iron Powder Core Toroidal Inductor Common Mode Choke
-
China Factory Customize 3uh Copper Air Core Inductance Coil Inductor
Product Description
Product Description

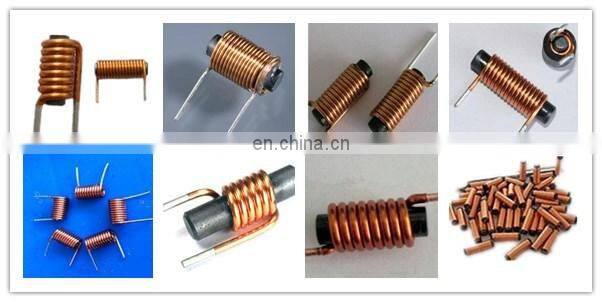

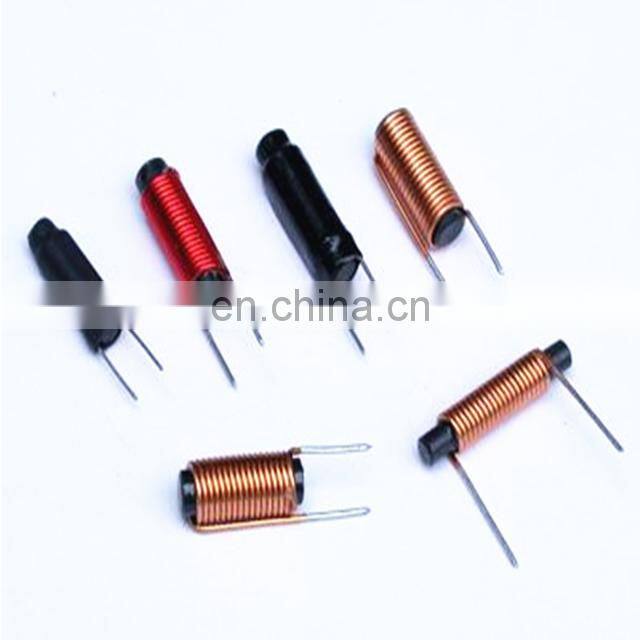

Copper Wire Winding Coil Ferrite Rod Core Choke Coil High Frequency Inductor
| FEATURES: | COMMON APPLICATIONS: |
| High current capability | Switching regulators |
| Very reliable mechanical design | Motors |
| Very high magnetic saturation | Power amplifiers |
| Operating temperature up to +150℃ | Power supplies |
| Broadband filtering | |
| (higher temperatures depending on mission profile) | Typical in VHF |
Features:
Higher frequency,lower wastage
High rated current and low DCR, the current can be reached 150A
Flat bottom surface,reliable installation.
Magnetic shielded,not easy affect by temperature.
Lead free products, RoHS compliant.
Factory direct price
Application:
Widely use in LED lights, Adaptors, Electrical ballast, Dimmers, Switching power supplies, Electric appliances, Digital VCR/LCD converter, DC-DC converter
| Part Number |
L uH |
Test Freq MHz |
DCR mΩ Max |
Irms Max A |
Isat Max A |

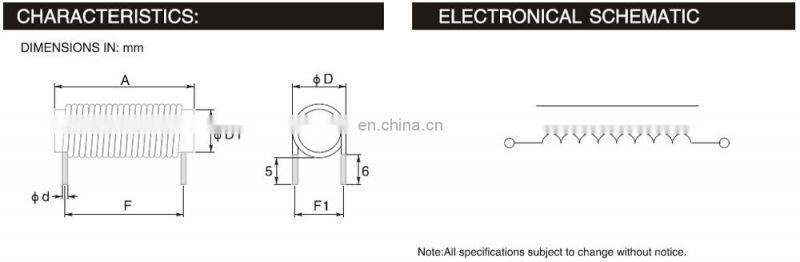

φd | φD1 | (A) | φD | F | F1 |
| LRC0312-1R8M | 1.8 | 1 | 8 | 2.5 | 10.0 | 0.67 | 3.0 | 12 | 4.6 | 8.8 | 3.7 |
| LRC0320-4R7M | 4.7 | 1 | 12 | 2.5 | 5.5 | 0.67 | 3.0 | 20 | 4.6 | 13.5 | 3.7 |
| LRC0322-7R0M | 7.0 | 1 | 16 | 1.9 | 4.6 | 0.63 | 3.3 | 22 | 4.8 | 14.5 | 4.0 |
| LRC0322-9R0M | 9.0 | 1 | 20 | 1.0 | 3.7 | 0.63 | 3.3 | 22 | 4.8 | 17.5 | 4.0 |
| LRC0420-1R8M | 1.8 | 1 | 3 | 10 | 15.0 | 1.32 | 4.0 | 20 | 6.9 | 15.9 | 5.4 |
| LRC0425-4R7M | 4.7 | 1 | 7 | 6 | 8.2 | 1.00 | 4.0 | 25 | 6.3 | 18.4 | 5.1 |
| LRC0430-7R0M | 7.0 | 1 | 8 | 5 | 6.5 | 0.95 | 4.0 | 30 | 6.2 | 19.5 | 5.0 |
| LRC0430-9R0M | 9.0 | 1 | 15 | 4 | 5.6 | 0.85 | 4.0 | 30 | 6.0 | 20.1 | 4.9 |
| LRC0425-120M | 12.0 | 0.1 | 22 | 2 | 5.0 | 0.63 | 4.0 | 25 | 5.5 | 16.9 | 4.7 |
| LRC0520-2R5M | 2.5 | 1 | 5 | 6 | 18.0 | 1.00 | 5.0 | 20 | 7.3 | 11.0 | 6.1 |
| LRC0525-4R7M | 4.7 | 1 | 8 | 5 | 13.0 | 0.95 | 5.0 | 25 | 7.2 | 14.5 | 6.0 |
| LRC0520-7R0M | 7.0 | 1 | 17 | 3 | 11.0 | 0.71 | 5.0 | 20 | 6.7 | 15.3 | 5.7 |
| LRC0520-100M | 10.0 | 0.1 | 24 | 2 | 9.0 | 0.63 | 5.0 | 20 | 6.5 | 16.2 | 5.7 |
| LRC0525-120M | 12.0 | 0.1 | 27 | 2.5 | 8.5 | 0.63 | 5.0 | 25 | 6.5 | 14.9 | 5.7 |
| LRC0530-250M | 25.0 | 0.1 | 38 | 1 | 5.0 | 0.63 | 5.0 | 30 | 6.5 | 22.8 | 5.7 |
| LRC0625-4R0M | 4.0 | 1 | 5 | 10 | 19.0 | 1.32 | 6.0 | 25 | 8.9 | 18.7 | 7.4 |
| LRC0625-6R0M | 6.0 | 1 | 8 | 7 | 17.0 | 1.06 | 6.0 | 25 | 8.4 | 18.6 | 7.1 |
| LRC0625-100M | 12.0 | 0.1 | 13 | 5 | 14.0 | 0.95 | 6.0 | 25 | 8.2 | 22.4 | 7.0 |
| LRC0625-150M | 15.0 | 0.1 | 30 | 5 | 10.0 | 0.63 | 6.0 | 25 | 7.5 | 16.6 | 6.7 |
| LRC0630-220M | 22.0 | 0.1 | 34 | 2 | 7.8 | 0.63 | 6.0 | 30 | 7.5 | 18.2 | 6.7 |
| LRC0630-300M | 30.0 | 0.1 | 46 | 2 | 7.0 | 0.63 | 6.0 | 30 | 7.5 | 25.5 | 6.7 |
| Note:K=±10%, M=±20%, N=±30% | |||||||||||

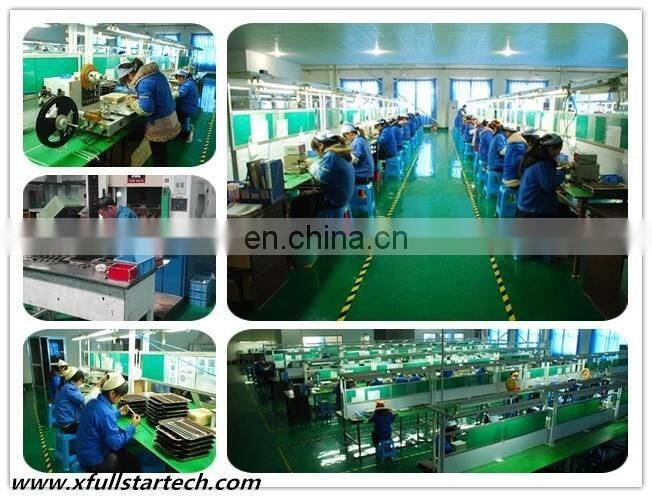

Company Information
Our Services
Fullstar Provides 24/7 pre-sale and after sale services. Customer always comes first.
Packaging & Shipping
Package :
1000 PCS in a bag.
Eight bags in a carton.
FAQ
1. Q: Why choose us?
A: Fullstar has been mamufacturing customized inductors for more than 24 years.
2. Q: Do you have any certificates
A: We have CE, RoHS, CCC, CQC, ISO9001:2015 Certification.
3. Q: How about your products quality inspection?
A: We have professional QA and QC teams. 100% quality inspection is performed before shipment.
4. Q: Can you use our logo?
A: We accept OEM and ODM production.
5. Q: What’s your quality guarantee?
A: We repair or replace parts within 18months if necessary.
