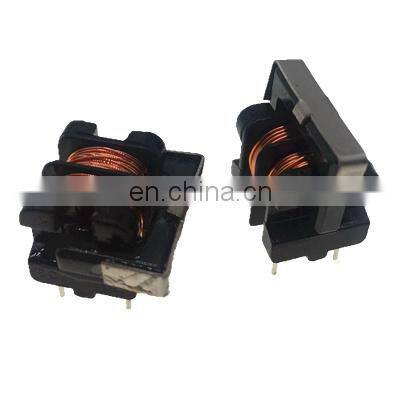

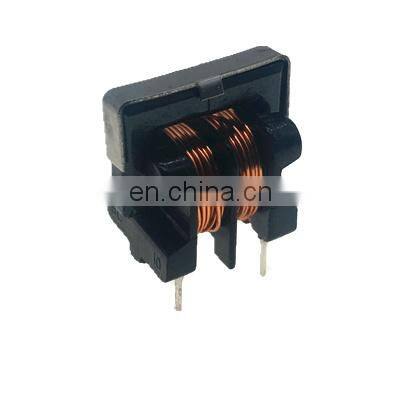

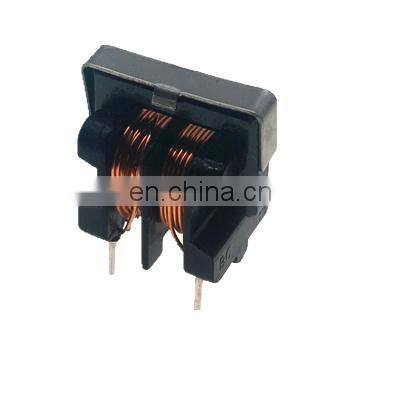

High Reliability 2.0mH/3.0mH / 5.0mH / 7.5mH / 10mH UU9.8 Through-hole Common Mode Chokes
- 1000 per Month
- T/T Credit Card
You May Like
-
ET24 through-hole common mode choke filter power inductor
-
uu10.5 filter inductor
-
Copper Air Coil Self-bonded Air Coil with Wide Inductance and Various Dimensions
-
6*25 Rod Low Frequency Chock Coils Choke Inductor 0.1A-30A 1Uh-1H With Copper Wire Filter
-
Choke filter Customized common mode choke coil inductors 10mH 25A
-
0.3A Common Mode Chokes Coil 0.6MH Inductor Filter Line AC/DC 100KHZ To 3MHz Coil Inductor
Product Description
Manufacture 2.0mH/3.0mH / 5.0mH / 7.5mH / 10mHInductance 0.3A-2.0A Ratings, UU9.8 Through-hole Common mode chokes
TECHNICAL INFORMATION:
- Max Opetating voltage:250V at 40℃
- IDC Max:rating AC/DC current A @40℃
- Hi-Pot 2500V AC winding to winding 3S
- Insulation resistance 100MΩ Min DC 500V
- Temperature Rise Max:40℃
- Inductace Testing:10KHz 0.1V HP4284A
- RDC:QuadTech 1880 Milliohmmeter
- Surge current Max 10ms:20X IDC
- Operating temperature:-40℃ to+105℃
- Storage Tempeature:-40℃ to+105℃
- Resistance to soldering heat:260℃ for 10 seconds
- Marking:Part number and data code
Note: All specifications subject to change without notice.
|
ELECTRICAL SPECIFICATIONS |
||||
|
Part Number |
Nominal Inductance (mH)Min. |
leakage Inductance (uH)Max. |
D.C.R(Ω)Max. |
Rated Current(A) Max. |
|

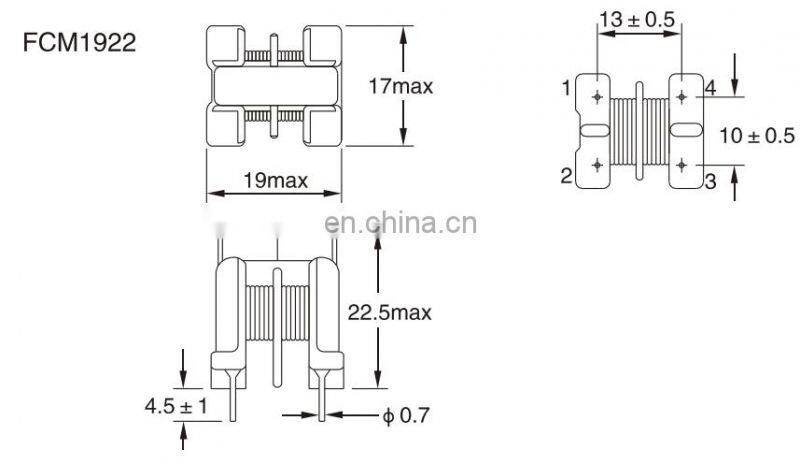

FCM1922-601Y |
0.6 |
50 |
0.12 |
2 |
|
FCM1922-801Y |
0.8 |
50 |
0.2 |
1.5 |
|
FCM1922-102Y |
1 |
100 |
0.4 |
1 |
|
FCM1922-202Y |
2 |
100 |
0.4 |
1 |
|
FCM1922-302Y |
3 |
60 |
0.5 |
0.9 |
|
FCM1922-502Y |
5 |
200 |
1.2 |
0.5 |
|
FCM1922-752Y |
7.5 |
100 |
2 |
0.4 |
|
FCM1922-103Y |
10 |
300 |
2 |
0.3 |
Packing Details : The normal packing is use carton (size: L * W * H),according to the special requirements of the customer.
Delivery Details : 5-20 days
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How do you control the quality?
A:We control product quality by IQC, and 100% quality testing before packing and delivery. We had passed ISO9001 certificate repot.
