63A 230V Din Rail Adjustable Over Voltage Under Voltage Protect Electric Digital Automatic Voltage Protector
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
LC1-D25 AC Magnetic Contactor M7C Three-phase Electric Contactor AC Motor Starter Relay Contactor 25A 50/60Hz
-
4P 32A 63A 2NC2NO 4NO 4NC 220V/230V 50/60HZ Din Rail Household AC Modular Contactor
-
Self-resetting Over Voltage and Under Voltage Protector Switch Over Current Overload Voltage Lightning Protection Household 220V
-
2P 4P ATS 63A 230V 380V Micro Circuit Breaker Dual Power Automatic Transfer Switch Auto Transfer Switch, Dual Power Ats
-
XH-M403 DC-DC Digital Voltage Regulator Buck Step Down Power Supply Module 5-36V to 1.3-32V High Voltage Power Supply
-
ATS 2P 4P 63A 230V 380V Micro Circuit Breaker Dual Power Automatic Transfer Switch Auto Transfer Switch
Product Description
Parameters

Functions:
1.Over-voltage protection
2.Under-voltage protection
3.Over-current protection
4.Automatic recovery
5.Voltage display(voltage measurement)
6.Current display (current measurement)
Product Parameters:
1.Model number:TVPS1-63B
2.Power supply:230VAC 50/60Hz
3.Max.Loading power:1~40A Adjustable(default:40A)
1~63A Adjustable(default:63A)
4.Over-voltage protection value range:221V~300~OFF(default:280V)
Over-voltage recovery voltage range:220V--299V(default:250V)
Over-voltage protection action time:0.1s~10s(default value:0.1s)
5.Under-voltage protection value range:219V--150V --OFF(default:160V)
Under-voltage recovery voltage range:151V--220V (default:180V)
Under-voltage protection action time:0.1s~10s(default:0.1s)
6.Over-current adjustment range:1-40A (default:40A)
Over-current action range:0.1~512 second (default:5.0s)
| 7.Recovery delay time | 2s~120s(default:60s) |
| 8.Power-on delay time | 2s~10s(default:2s) |
| 9.Power consumption | <2W |
| 10.Electric machinery life | 100,000 times |
Noted: When you first connect the product, you have to wait about 1 minute, after the red light turn off, then the product will work.

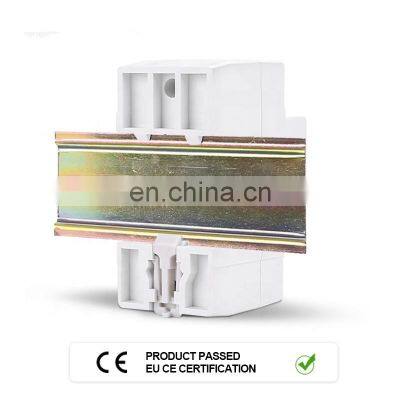

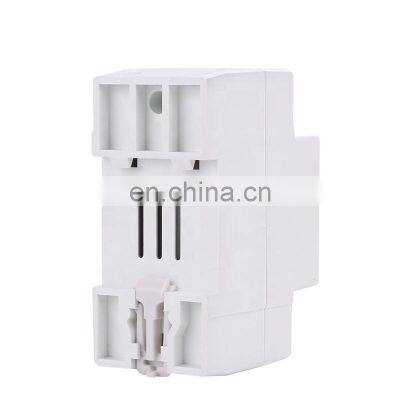

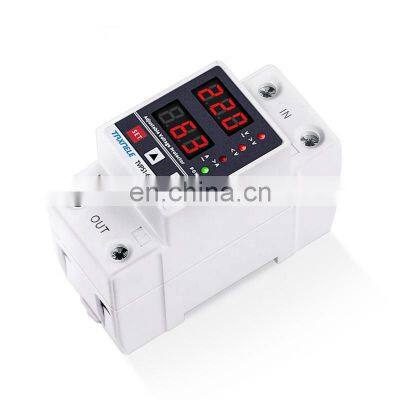

Product display
