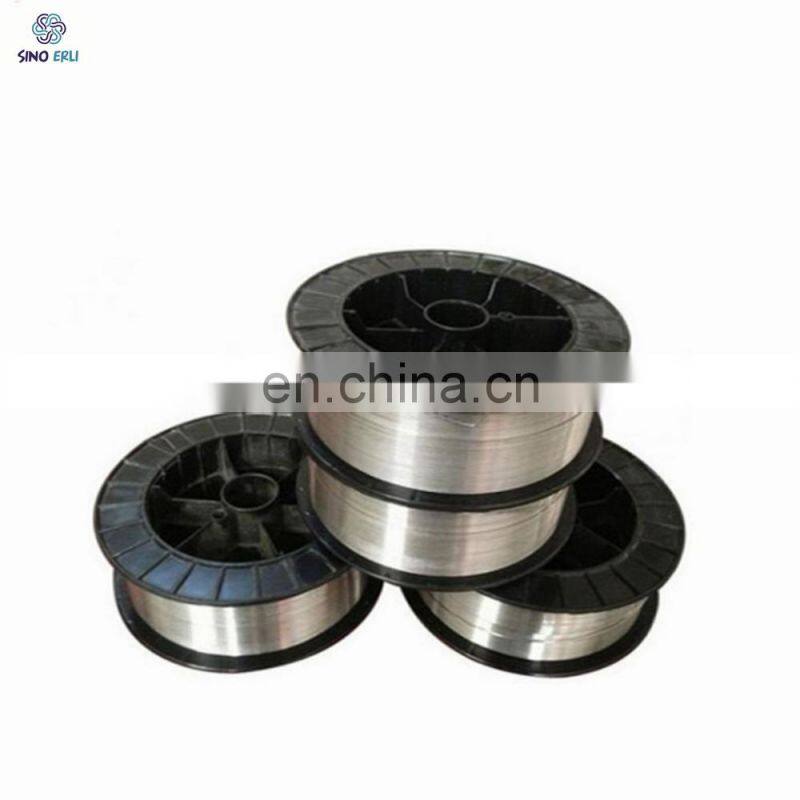

1.6 Mm~5.0 mm Sino-Erli MG316LT MIG Stainless Steel Solid Welding Wire S316L ER316L

The main component of the welding wire is ultra-low C-18Cr-12Ni-2Mo, which is stainless steel MIG welding wire.It can be welded in all positions. It has good impact toughness at -196°C, stable arc, beautiful shape, and very little splash. It has excellent corrosion resistance to acetic acid, sulfurous acid, phosphoric acid and salts.
It is widely used in the welding of materials such as 022Cr17Ni12Mo2 (SUS 316L) in the deep cold and low temperature environment of the three major energy storage and transportation equipment fields: CNG (compressed natural gas), LNG (liquefied natural gas) and LPG (liquefied petroleum gas).

 Attention:

1. Shielding gas: pay attention to the purity of the shielding gas, the recommended mixture ratio is Ar+1~3%O2.
2. Gas flow: 20~25L/min.
3. Extension elongation: 15~25mm.
4. Remove the rust, moisture, oil, dust, etc. from the welding part.
5. When welding outdoors, wind-proof measures should be taken when the wind speed is greater than 1.5m/s, and appropriate wind-proof measures must be taken to prevent air holes forming.
The above suggestions are for reference only, and the actual conditions on site shall prevail in specific operations. If necessary, perform process qualification first and then determine the welding plan.
