0.8-8GHz OEM EMI wifi6e 5G GSM mobile phone test instrument pneumatic single-layer RF shielding box
- shenzhen
- T/T
- 7 days
You May Like
-
0.8-8GHz single-layer RF shielding box OEM EMI wifi6e 5G GSM phone test instrument
-
0.8-8GHz OEM EMI wifi6e 5G GSM phone testing instrument manual RF shield box
-
8mm SMA Torque Wrench Calibrated To 1N. M Protect Instrument Joints
-
20mm Type-N Torque Wrench Calibrated To 1N. M Protect Instrument Joints
-
2 way Power Splitter Power Divider with SMA connector 0.8-8GHz
-
4 way Power Splitter Power Divider with SMA connector 0.8-8GHz
Product Details
| Brand Name | TOJOIN | Place of Origin | China | |
| Model Number | MS3943 |
Product Description

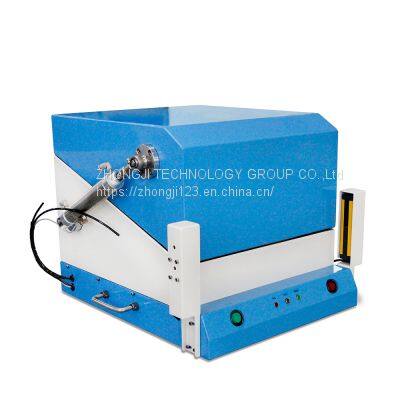

SD3943-B is an economical pneumatic single-layer shielding box, it is used to build modules and terminal test solution platform in the fields of smart phones, Wi-Fi, Bluetooth, smart grid equipment, automotive electronics, UAV, smart homes, etc.
Features
① Support multi station test, automatically judge success or failure, and save taking and placing time
② Compatible with N4010A, MT8852, CMW500,CMU200 instrument
③ The working size meets most of the test requirements of smart mobile terminals on the market
④ Using the latest shielding materials, absorbing ability and blocking ability is good
⑤ The various test interfaces are available, more convenient for tester
⑥ Double protection coming from the high-sensitivity magnetic ring sensors and photoelectric sensors
⑦ It supports RS232 serial communication command control and PLC online programming control
Technical Parameter:
Working frequency（GHz） | 0.8～8GHZ |
Shielding effect（GHz） | ≥80 dB@2.4GHz |
Interface Type | SMA*4+USB2.0*2+RJ45*2+BNC*6 (Could be customized and optional) |
Numbers of filters | 2 pcs |
Control method | Touch switch control； Compatible with RS232 communication instructions； PLC online programming control (option) |
working temperature（°C） | Normal working temperature |
Inner dimension(mm) | 340(W)*382(D)*237(H) |
Outer dimension(mm） | 475.6(W)*557(D)*389(H) |
Weight（kg） | About 40 |
Appearance of color | Beige and blue (Could be customized) |
