Product Description
1.application

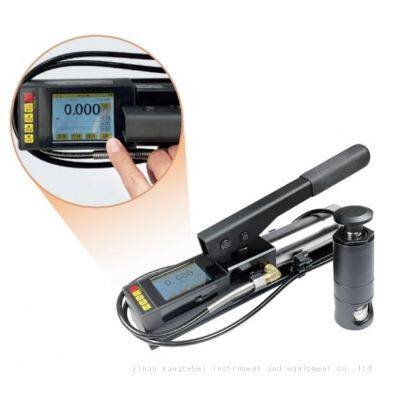

The WTB-FZY series adhesion pull off strength tester is to do the pull-off test for coatings in specific areas by hydraulic method. It can display the pull-off strength in Mpa or psi accurately. This series pull-off tester has the characters of easy operate, measuring accurately, low maintenance cost and low cost for consumables. It is widely used for adhesion testing between different coatings in some concrete base coatings, anti-corrosion coatings, or multi coating systems.
2. features
Micro-USB port, allow computer copy test data from the tester directly
Built-in real time clock, all saved test data has corresponding date and time, very convenient for manage the test data.
Different pull-off loading fixtures can be equipped.
Saved test data include max. pull off force, pull off rate, test time and loading fixture size
Display pull off force during test, easy and convenient for operators to observe and adjusting
3. relative test methods
ISO 4624 paints and varnishes-pull-off test for adhesion
ASTM D 4541 standard test method for pull-off strength of coatings using portable adhesion testers
ASTM D 7234 standard test method for pull-off adhesion strength of coatings on concrete using portable pull-off adhesion testers
4. specifications
Model | WTB-FZY-1 | WTB-FZY-2 |
display mode | Segment code LCD | 2.8 inch color LCD |
display unit | kN or Mpa | kN and Mpa |
touch screen | --- | yes |
time, force curves | --- | yes |
Bluetooth transmission | --- | optional |
loading speed display | --- | yes |
voice read out | --- | optional |
data storage | 200 test data | 2000 test data |
force capacity | 0-10kN | |
resolution | 0.001kN / 0.001Mpa | |
loading fixture | 20mm ( can choose 10mm, 14mm,50mm) | |
pull-off strength | 10mm loading fixture (0-127.38Mpa) 14mm loading fixture (0-64.99Mpa) 20mm loading fixture (0-31.84Mpa) 50mm loading fixture (0-5.09Mpa) |
