Home > Products > torsion testing machine > Digital torque and angle measurement equipment ASTM F606 torsion testing machine EN ISO 16047 bolt torque test standard

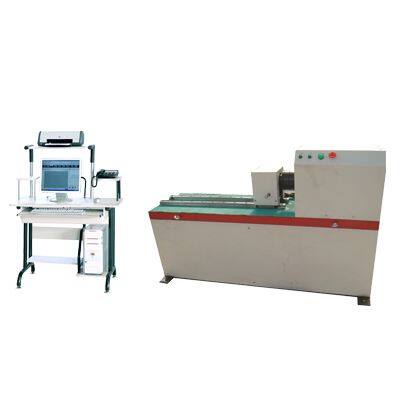

Digital torque and angle measurement equipment ASTM F606 torsion testing machine EN ISO 16047 bolt torque test standard
- 10 Set / Sets per Month
- qingdao, tianjin,shanghai
- T/T
- 10 days
You May Like
-
tensile testing machine universal testing machine UTM tensile strength tester 10kn
-
JFL-16A-G weighing sensor load cell 100kg 200kg 300kg 500kg 750kg 1.5ton
-
WDW-10KN 1 ton computerized electronic universal UTM tensile and compression testing machine
-
WTB-BCT-40 Bottle Cap Torque Tester 40Nm capacity
-
Digital Bottle Cap Torque Tester Manual and automatic Cap Torque Tester
-
Bottle cap torque tester for plastic bottles
Product Details
Brand Name | wangtebei | Place of Origin | China | |
Model Number | TNW | Power | Electronic | |
Usage | Torsion Tester |
Product Description
1. Application
The testing machine mainly detects the axial force and torque (or torque coefficient) of the high strength bolt connection pair (M16-M39) with large hexagonal head.
The equipment is automatically loaded by cycloid needle wheel reducer, imported linear guideway, all Chinese operating interface, microcomputer controlled automatic tightening, relaxation, reset, intelligent prompt in operation process, convenient and fast operation.
When the axial force reaches the standard setting value, the detector will automatically record the test data, automatically calculate the average axial force, average torque coefficient, standard deviation and coefficient of variation of the sample by computer, and can display the output torque coefficient, axial force curve, torque curve and so on. At the same time, the detector will have the functions of parameter setting, calibration, data report printing and output.
2. Test standard:
ISO 16047: Fasteners -- Torque/clamp force testing
EN 14399-2: High-strength structural bolting assemblies for preloading.
DIN 2510-5: Bolted connections with reduced shank hexagon nuts.
DIN 2510-6: Cap nuts for use with bolts with waisted shank.
ASTM A320 / A320M: Standard Specification for Alloy-Steel and Stainless Steel Bolting for Low-Temperature Service;
ASTM A325: Standard Specification for Structural Bolts, Steel, Heat Treated, 120/105 ksi Minimum Tensile Strength;
3. Technical Parameter:
1 | Max torque | 100Nm |
2 | Measuring range of torque | 2Nm-100Nm |
3 | Torque resolution | 1/±200000 |
4 | Relative error of indicating value of torque | 1% |
5 | Torsion angle resolution | 0.01° |
6 | Torsion speed | 0-360°/min |
7 | Relative error of torsion speed | Within ±1% of set value |
8 | Max distance between grips | 300mm |
9 | Axiality of two grips | Less than φ1.0mm |
10 | Central height of main axis | 170mm |
11 | Power | 0.4kW |
12 | Voltage | 220V±10% 50Hz |
13 | Dimension | 900X320X1100mm |
1 | Max torque | 200Nm |
2 | Measuring range of torque | 4Nm-200Nm |
3 | Torque resolution | 1/±200000 |
4 | Relative error of indicating value of torque | 1% |
5 | Torsion angle resolution | 0.01° |
6 | Torsion speed | 0-360°/min |
7 | Relative error of torsion speed | Within ±1% of set value |
8 | Max distance between grips | 300mm |
9 | Axiality of two grips | Less than φ1.0mm |
10 | Central height of main axis | 170mm |
11 | Power | 0.4kW |
12 | Voltage | 220V±10% 50Hz |
13 | Dimension | 900X320X1100mm |
1 | Max torque | 500Nm |
2 | Measuring range of torque | 10Nm-500Nm |
3 | Torque resolution | 1/±200000 |
4 | Relative error of indicating value of torque | 1% |
5 | Torsion angle resolution | 0.01° |
6 | Torsion speed | 0-360°/min |
7 | Relative error of torsion speed | Within ±1% of set value |
8 | Max distance between grips | 600mm |
9 | Axiality of two grips | Less than φ1.0mm |
10 | Central height of main axis | 170mm |
11 | Power | 0.75kW |
12 | Voltage | 220V±10% 50Hz |
13 | Dimension | 1750X600X950mm |
1 | Max torque | 1000Nm |
2 | Measuring range of torque | 20Nm-1000Nm |
3 | Torque resolution | 1/±200000 |
4 | Relative error of indicating value of torque | 1% |
5 | Torsion angle resolution | 0.01° |
6 | Torsion speed | 0-360°/min |
7 | Relative error of torsion speed | Within ±1% of set value |
8 | Max distance between grips | 600mm |
9 | Axiality of two grips | Less than φ1.0mm |
10 | Central height of main axis | 170mm |
11 | Power | 0.75kW |
12 | Voltage | 220V±10% 50Hz |
13 | Dimension | 1750X600X950mm |
