Home > Products > RF shield box > Manual RF Shield Box 0.8-8GHz Precision OEM Mobile phone Audio EMI Wifi6e 5G GSM Test instrument
Manual RF Shield Box 0.8-8GHz Precision OEM Mobile phone Audio EMI Wifi6e 5G GSM Test instrument
- shenzhen
- T/T
- 7 days
You May Like
-
0.8-8GHz OEM EMI wifi6e 5G GSM mobile phone test instrument pneumatic single-layer RF shielding box
-
0.8-8GHz single-layer RF shielding box OEM EMI wifi6e 5G GSM phone test instrument
-
0.8-8GHz OEM EMI wifi6e 5G GSM phone testing instrument manual RF shield box
-
8mm SMA Torque Wrench Calibrated To 1N. M Protect Instrument Joints
-
20mm Type-N Torque Wrench Calibrated To 1N. M Protect Instrument Joints
-
2 way Power Splitter Power Divider with SMA connector 0.8-8GHz
Product Details
| Brand Name | TOJOIN | Place of Origin | China | |
| Model Number | MS3020 |
Product Description

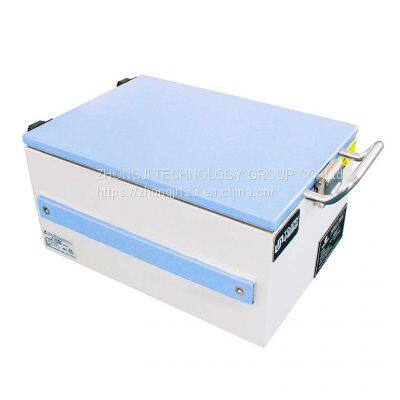

MS3020-A is a manual shielding box, suitable for the detection of wireless network cards and wireless communication equipment. The shielding box is formed by sheet metal material, with good shielding effect and firm structure. It is an extremely economical and practical high and low temperature shielding test box.
Features
① MS3020-A is a mini shielding box with small size, light weight, easy operation and good shielding performance.
② Using sheet metal materials, to make the box firm
③ Adopting the latest shielding materials, the box with strong wave absorbing ability and good blocking ability
④ A complete test interface design makes it more convenient for you to match with the tester.
Technical Parameter:
Working frequency（GHz） | 0.8～8GHZ |
Shielding effect | ≥80 dB |
Interface type | SMA*6+USB2.0*2+RJ45*1+DB9*1+DC*1 (Could be customized and optional) |
Numbers of filters | 2 pcs |
Control mode | manual |
working temperature（°C） | Normal working temperature |
Working size(mm) | 225(W)*320(D)*160(H) |
Dimensions（mm） | 240(W)*390(D)*187(H) |
Weight（kg） | About 15 |
Appearance of color | Body: gray Cover: blue (Could be customized) |
