Home > Products > plywood peeling machine > Plywood Hard Wood High Speed Veneer Rotary Peeling Clipping Lathe Machine With Servo Motor
Plywood Hard Wood High Speed Veneer Rotary Peeling Clipping Lathe Machine With Servo Motor
US$ 10000 - 20000
/ Set
1 Set(Min. Order)
- Qingdao
- T/T L/C D/P D/A Other
- 30 days
You May Like
-
Plywood Economical Veneer Rotary Peeling Clipping Lathe Machine With Servo Motor
-
Plywood Economical Veneer Rotary Peeling Clipping Lathe Machine With Servo Motor
-
Plywood Economical Hot Sale Veneer Rotary Peeling Clipping Lathe Machine With Servo Motor
-
High Capacity Complete Particle Board/ Chipboard/ LVL/ MDF/HDF Production Machine Line
-
High Capacity Complete Particle Board/ Chipboard/ LVL/ MDF/HDF Production Machine Line
-
High Capacity Complete Particle Board/ Chipboard/ LVL/ MDF/HDF Production Machine Line
Product Details
| Brand Name | METRO MACH | Place of Origin | China | |
| Model Number | BQS1814 | Certification | CE, ISO ,FDA, SGS, CCC | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 1 Year | |
| Weight | 7200kgs | Dimension(L*W*H) | 5100mm * 1900mm * 1550mm | |
| Condition | New | Voltage | 380/415V | |
| Power(W) | 39.7kw | Type | Other, Veneer peeling machine |
Product Description

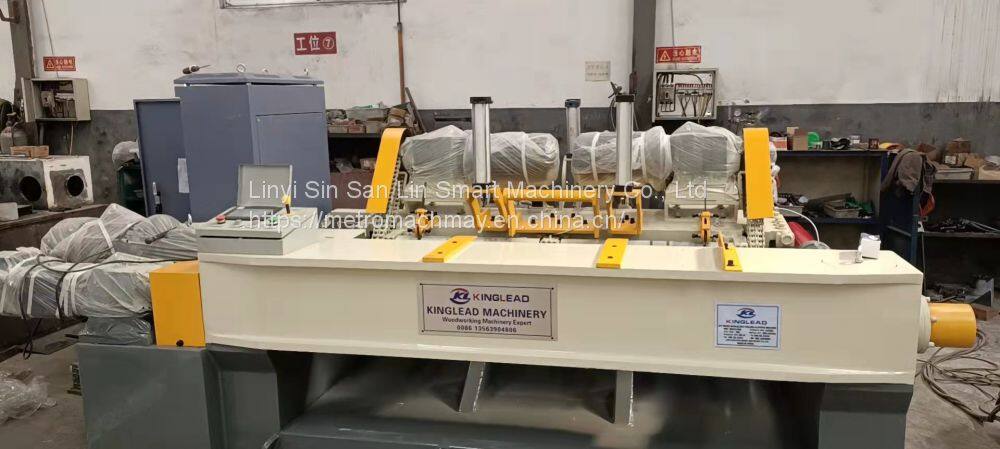

Automatic Hard Wood 4FT Plywood Veneer Peeling Machine with Servo Motor
1. Fearures
Spindleless veneer peeling machine is used for make veneer .
And it is suitable for the eucalyptus, pine, cotton wood and another log.
The quality of the veneer determines the quality of the plywood, so controlling the quality of the veneer is the premise and the most important part of producing standard plywood.
veneer peeling machine is a very technical equipment in plywood line equipment.
2. Technical Parameters
| Working length | 970mm - 1270mm |
| Working diameter range | 80~500mm |
| Max. working speed | 55-60m/min |
| Veneer thickness | 0.6~7mm |
| Double rollers motor power | 11kw |
| Single roller motor power | 5.5kw x 2sets |
| Screw Feeding motor power | 7.5kw |
| Rotary clipper motor power | 2.2kw |
| Rubber belt conveyor motor | 2.2kw |
| Machine size | 4700x1900x1500mm |
| Machine weight | 5000kgs |
| Reducer Model | R87 Hard helical |
| Remark | Including 6 meter veneer conveyor |
Product Show
COMPLETE PLYWOOD PRODUCTION MACHINE LINE
