4Ft Plywood Core Veneer High Speed Spindleless Peeling Machine
- Qingdao
- T/T L/C D/P D/A
- 30 days
You May Like
-
4Ft Plywood Core Veneer High Speed Spindleless Peeling Machine for Hard Wood
-
4Ft Plywood Core Veneer High Speed Spindleless Peeling Machine for Hard Wood
-
Automatic Heavy Duty Knife Grinder Machine for Plywood Peeling Debarker Machine
-
Automatic Heavy Duty Knife Grinder Machine for Plywood Peeling Debarker Machine
-
Automatic Heavy Duty Knife Grinder Machine for Plywood Peeling Debarker Machine
-
Particleboard, OSB, MDF Complete Production Machine Line
Product Details
| Brand Name | METRO MACH/ LEADTOP | Place of Origin | China | |
| Model Number | BXQ1827/17X | Certification | ISO, CE, SGS, CCC | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 1 Year | |
| Weight | 10T | Dimension(L*W*H) | 4460*1790*1980mm | |
| Condition | New | Voltage | 380v, 50Hz | |
| Type | Other, veneer peeling machine |
Product Description
4FT High Speed Plywood Veneer Peeling Machine
1.Main features:
1.2018 all new generation research & design SPECIAL FOR HARD WOOD.
2.Fastest veneer peeling speed can reach to 100M/MIN.
3.Save 40% - 60% of power, reduce production cost.
4.Veneer double sides smooth and thickness evenness less than 0.05mm.
5.Double motors rollers, speed stable, overcome the unstable Indian voltage.

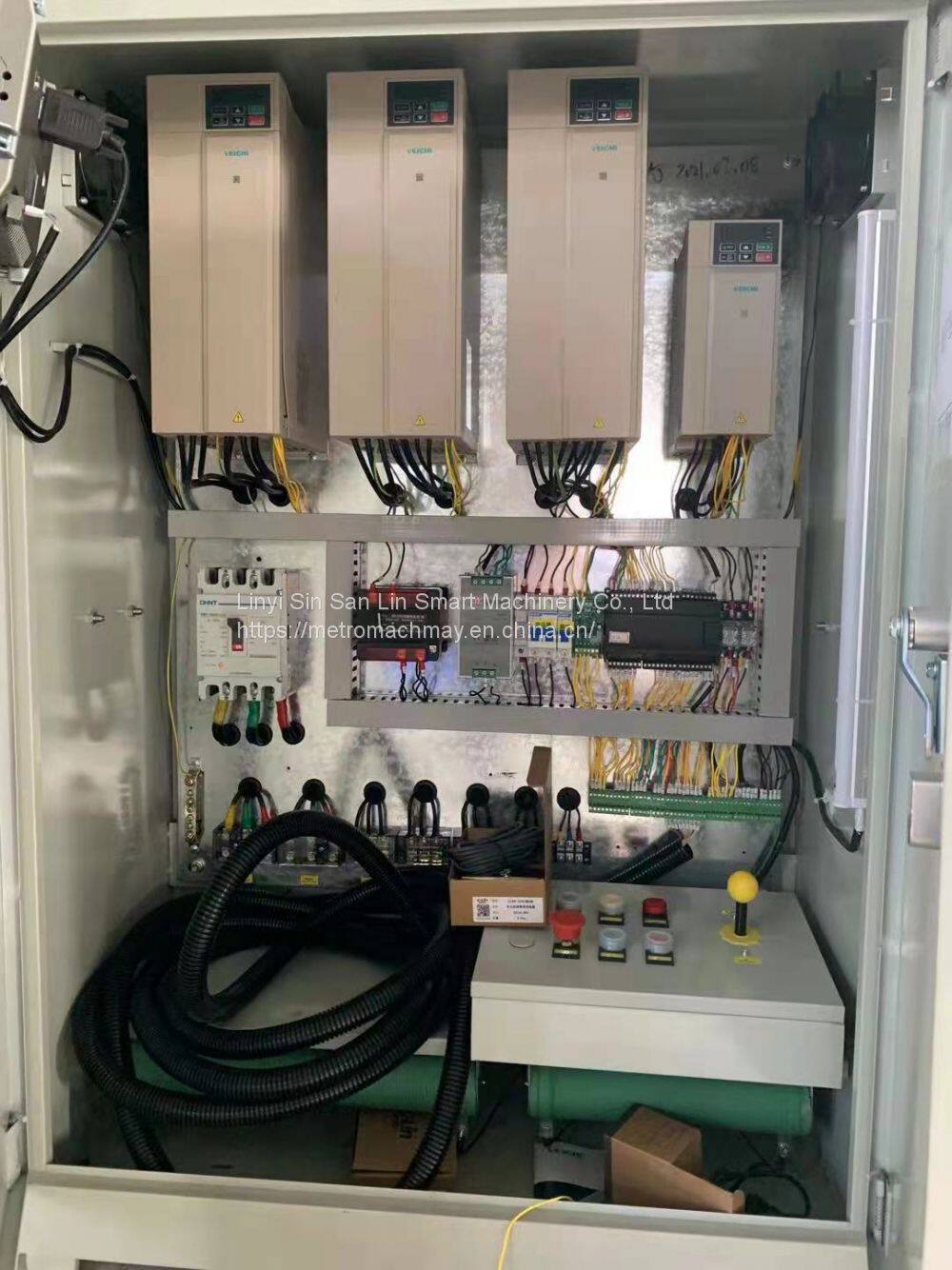

6.Bigger power inverter and English language PLC control system.
7.Clipper inbuilt design, peeling and clipping at same time.
8.Automatic electrical lubrication system for all important mechanical parts.
9.Automatic air cylinders dropper for final log to save production time.
10.R87 harden helical gear speed reducer and Japan NSK bearings.
11.Automatic final piece veneer holder device.
12.Full closure oil immersed screws, wear-resisting, maintenance -free.
13.Exclusive manufacturer adopt the full closure oil immersed guide bar(quenching process treatment), all working life free maintenance, promise the machines feeding at most stable Condition, so that can get the best quality veneer.
2. Technical Parameters
DESCRIPTION | UNIT | PARAMETERS |
Length of log | mm | 970mm--1270mm |
Max log diameter | mm | Max 500mm Min33mm/22mm |
Rotary cutting thickness range | mm | 0.5mm--7.0mm |
Peeling speed | m/min | 30--120M/Min |
The main auxiliary motor power | KW | Single roller motor 5.5KW×2 Cuting motor 1.5KW Conveyor 1.5KW Double roller motor 7.5KW×2 Feed motor 11KW Total power 40KW |
Redecer type selection | R Host R helical gear reducer | |
Main function | smc 120MM7.5+7.5KW. 106MM7.5+7.5KW | |

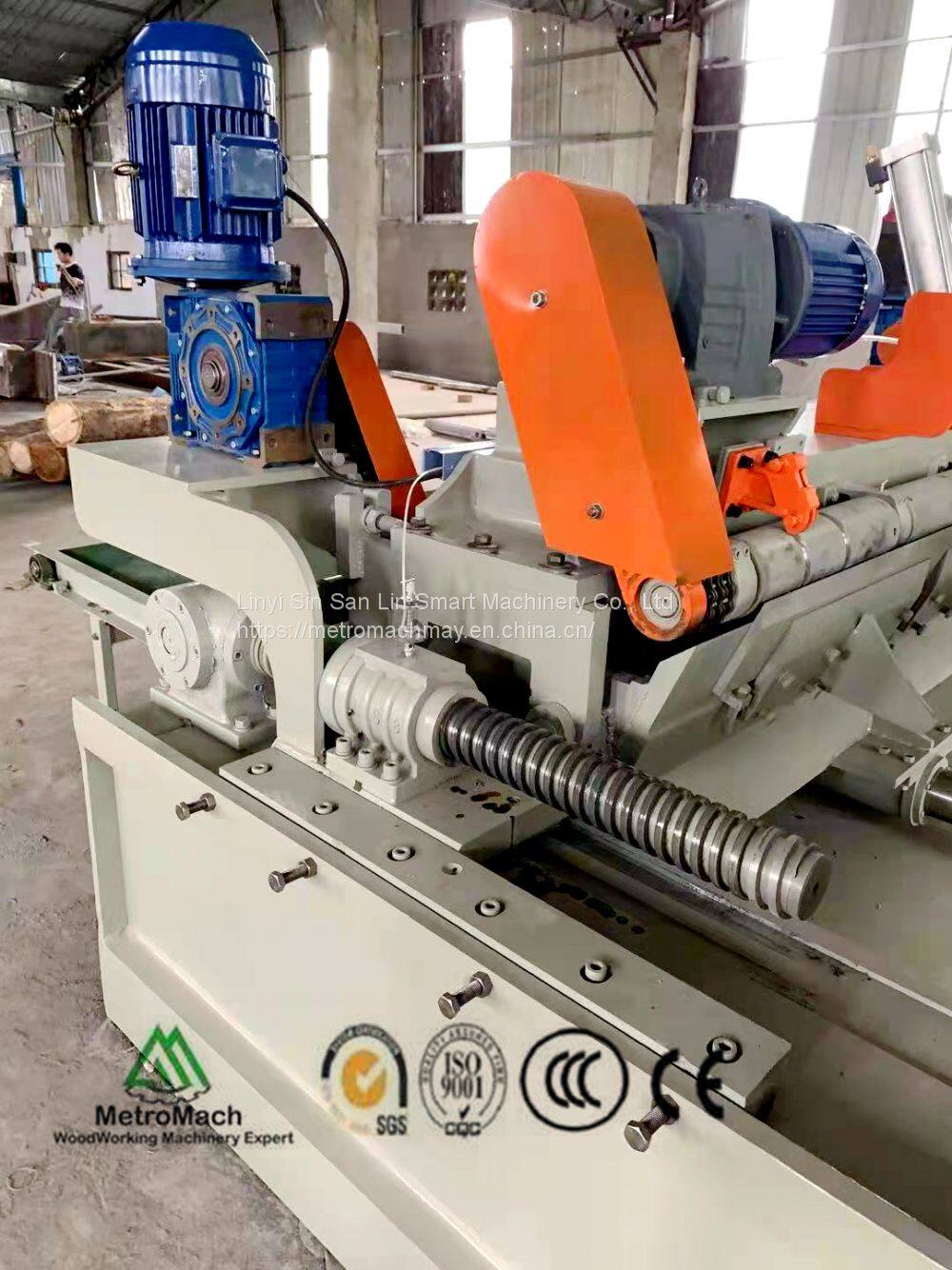

3.More Pictures:
