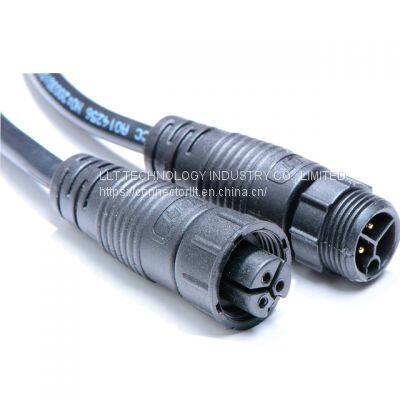

waterproof led strip 3pin connector M12 Industrial Circular LED power cable 2 4 5 6 7 8 pin connector
US$ 1.5 - 3
/ Pair
10 Pairs(Min. Order)
- Shenzhen
- T/T Cash Other
- 15 days
You May Like
-
waterproof connector ip68 4pin power waterproof watertight low voltage sensor led cable llt M12 connector
-
4pin panel mount M12 waterproof aviation led IP67 connector
-
m12 5pin waterproof electr connector cable 2 3 4 5 6 7 8 pin push lock solder led light connector
-
Hot Sell LLT M12 2 3 4 5 6 Pin Electrical Wire Motorcycle Connector Waterproof With competition Price
-
wire waterproof connector 6pin solder seal wire electrical aviation M12 connector for electric bike
-
Free Sample M12 2 3 4 5 6 7 8 Pin Ip65 Ip67 Ip68 Led Waterproof Connector 5pin
Product Details
| Brand Name | LLT | Place of Origin | China | |
| Model Number | LLT-M12-10003M3064 | Type | Other, M12 molded cable connector | |
| Application | Power | Gender | Male |
Product Description
Specification:
Model number:LLT-M12-10003M3064
Connector Body:Nylon(PA 66)+GF UL94V-0 1/16"
Sealing:Silica Gel
Contact: Brass with gold plated
Mating style: Thread lock
Temperature Rating:-40°C~+105°C
Current rating:10A
Voltage rating:110V
Waterproof Rating:IP67
Contact resistance:<=10mΩ
Insulation resistance:1000MΩ at DC500V
Breakdown voltage: 1.5KV/1 minute
Pins range:1 to 8 and 2+2/2+3/2+4 pin.
Cable Range:3.5-8.0mm
Sealing:Silica Gel
Contact: Brass with gold plated
Mating style: Thread lock
Temperature Rating:-40°C~+105°C
Current rating:10A
Voltage rating:110V
Waterproof Rating:IP67
Contact resistance:<=10mΩ
Insulation resistance:1000MΩ at DC500V
Breakdown voltage: 1.5KV/1 minute
Pins range:1 to 8 and 2+2/2+3/2+4 pin.
Cable Range:3.5-8.0mm
