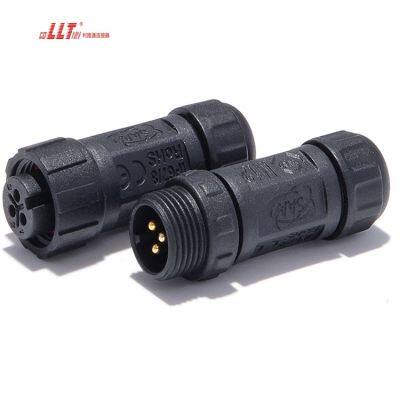

Mini Sensor 3pin M12 Thread Lock IP68 Waterproof Solder Wire Connector 4 5 6 7pin
USD $1 - $3
/ Pair
10 Pairs(Min.Order)
- 100000 Pair / Pairs per Month
- Shenzhen
- T/T
- 7 days
You May Like
-
Power Cable T Connector 2 3 4 pin waterproof ip68 plastic waterproof electrical wire 2pin 3way connector
-
4 way 2pin corss L20 connector Thread Waterproof screw wire 2 3 4pin cross electrical connector
-
2 3 4 Pin 2 Way L Type L20 Screw wire Circular Ip67 Waterproof Led Electrical Connector
-
Llt L20 Screw Type Waterproof Cable Connector,2 3 4 Pins Inline Cable Connector
-
Hot selling IP68 3 way T splitter waterproof connector with screw fixing cable 3pin terminal connector
-
Llt L25 Ip67 Ip68 Waterproof 2 3 4 Pin High Power Screw Fixing Cross Waterproof 3pin Connector
Product Details
| Certification | CE, ISO 9001, ROHS | Application | Power | |
| Interface Type | AC/DC | Gender | Female | |
| Pin | 3 Pins | Waterproof Rate | IP68 | |
| Rating: | 110V/10A | Temperature Range: | -40℃-105℃ | |
| Material: | PA66 Nylon UL94V-0 | Warranty: | 12 Month | |
| Lock Type | Thread lock | Durability: | 3000 times | |
| Transport Package | Carton | Specification | LLT-M12-10003F1051 | |
| Trademark | LLT | Origin | China |
Product Description
Specification:
Model number:LLT-M12-10003F1051
Connector Body:Nylon(PA 66)+GF UL94V-0 1/16"
Sealing:Silica Gel
Contact: Brass with gold plated
Lock style: Thread lock
Temperature Rating:-40°C~+105°C
Current rating:10A
Voltage rating:110V
Waterproof Rating:IP68
Contact resistance:<=10mΩ
Insulation resistance:1000MΩ at DC500V
Breakdown voltage: 1.5KV/1 minute
Pins range:1 to 8 and 2+2/2+3/2+4 pin.
Cable Range:3.5-6.1mm
Sealing:Silica Gel
Contact: Brass with gold plated
Lock style: Thread lock
Temperature Rating:-40°C~+105°C
Current rating:10A
Voltage rating:110V
Waterproof Rating:IP68
Contact resistance:<=10mΩ
Insulation resistance:1000MΩ at DC500V
Breakdown voltage: 1.5KV/1 minute
Pins range:1 to 8 and 2+2/2+3/2+4 pin.
Cable Range:3.5-6.1mm
Terminal attach cable:By solder
