3LPE 2LPE FBE Extruded Polyethylene External Internal Steel Pipe Corrosion Protection Coating Line
- Qingdao
- T/T
You May Like
Product Details
| Brand Name | HUASHIDA | Place of Origin | China | |
| Type | Coating Production Line | Certification | ISO, QS | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 12 months | |
| Condition | New | Coating | Other, Epoxy+Adehesive+Polyethylene | |
| Substrate | Other, Steel |
Product Description
The working process of the 3LPE steel pipe coating production line
Upload pipes→screw conveyor→rust removal → intermediate frequency heating→Epoxy powder coating→Adhesive & polyethylene coating→cooling spray→pipes screw conveyor→Pipe end beveling→unload pipes
Application | Steel pipe anti-corrosion coating |
Applying coating type | 3PE, 3LPE, 2PE, 2LPE, 3PP, 2PP, FBE |
Type of steel pipe | Seamless steel pipe, spiral steel pipe, straight seam steel pipe |
Diameter range | 57-1400mm |
Main equipment | Pipe conveyor, Shot blasting machine, Electrostatic spraying machine, PE&Adhesive extruder, Water cooling room, Pipe end beveling machine, Dust removal machine, Siemens control system |
Available for coating standards | DIN30670-1991, CAN/CSA Z245,21-2010, ISO21809-1-2009 SY/T 0413-2002, GB/T23257-2009, SY/T 0315-2002, AWWA C213-2001, CAN/CSAZ245.20-2010, ISO218909-2-2007, API RP5L9-2001, ГОСТ Р 51164-98 |

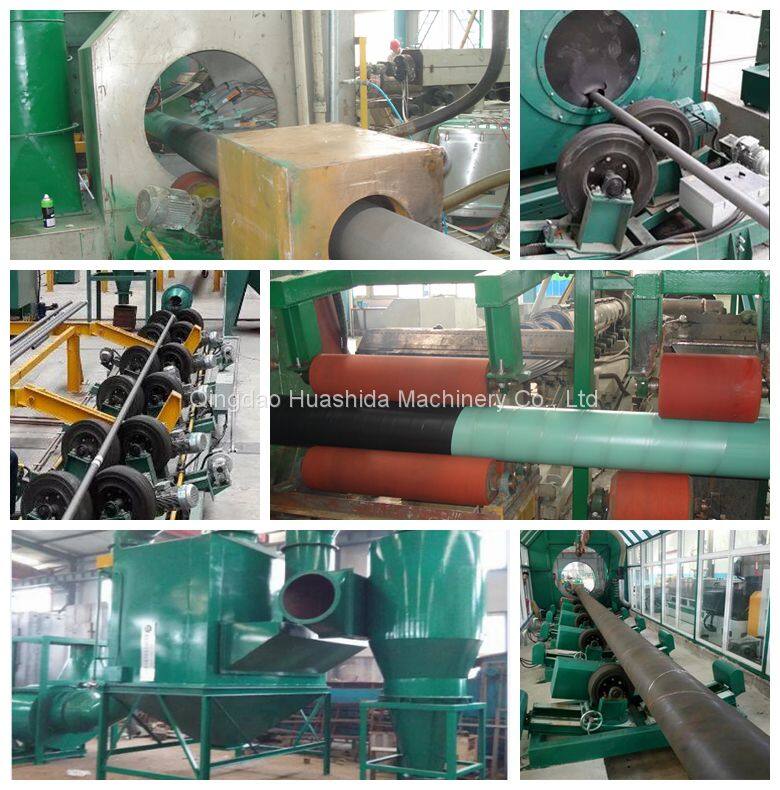

General Production Line Configuration
-steel pipe transmission system
-surface treatment system

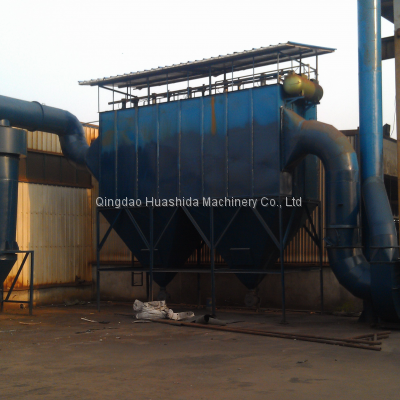

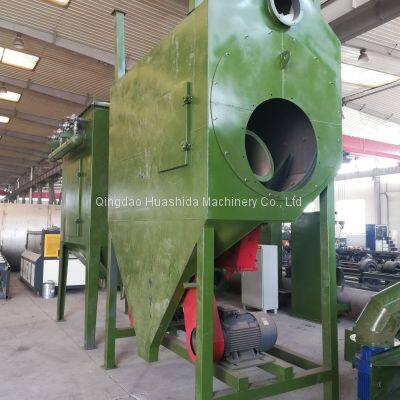

-dust removal system
-pipe heating system
-electrostatic spraying system
-coating system
-water cooling system
-end cutting system
-hydraulic and pneumatic system
-testing system
-electronic control system.
