Feed Extruder Bearings Multi-Stage Cylindrical Roller Thrust Bearings T3AR2468A1 24x68x70mm
- SHANGHAI
- T/T
- 3 days
You May Like
-
T3AR2866 Large Plastic Extruder Gearbox Tandem Bearing 28x66x82mm
-
T3AR2990 Tandem Thrust Bearing With Shaft China Supplier 29x90x98mm in Stock
-
Tandem Bearing With Shaft in Stock T3AR3073 Extruder Gearbox 30x73x89mm
-
T3AR3278 China Tandem Bearing Manufacturer 32x78x84mm Promotion Sale
-
T3AR33105 Large Extruder Gearbox Tandem Bearing Made in China 33x105x115mm
-
T3AR38150 ?large Size Feed Extruder Bearings 38x150x163mm in Stock
Product Details
| Brand Name | JHB | Place of Origin | China | |
| Model Number | T3AR2468A1 | Number of Row | Single Row | |
| Seals Type | No | Precision Rating | P4 P5 P6 | |
| Outside Diameter | 68, | Bore Size | 24, |
Product Description

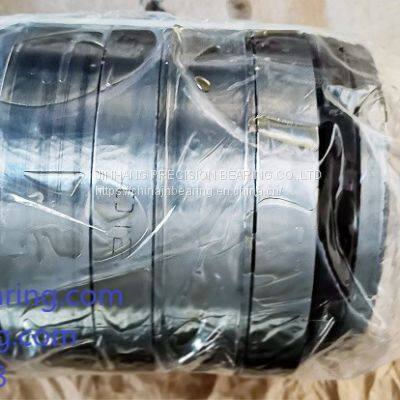

Feed extruder bearings Multi-Stage cylindrical roller thrust bearings T3AR2468A1 24x68x70mm

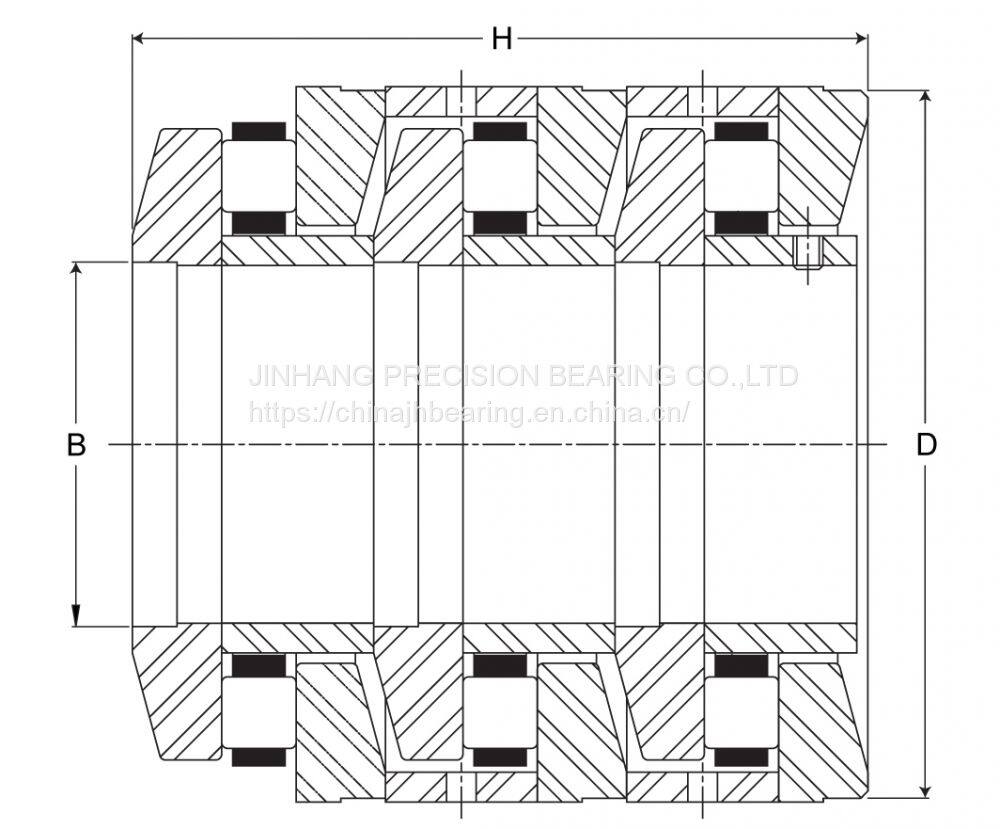

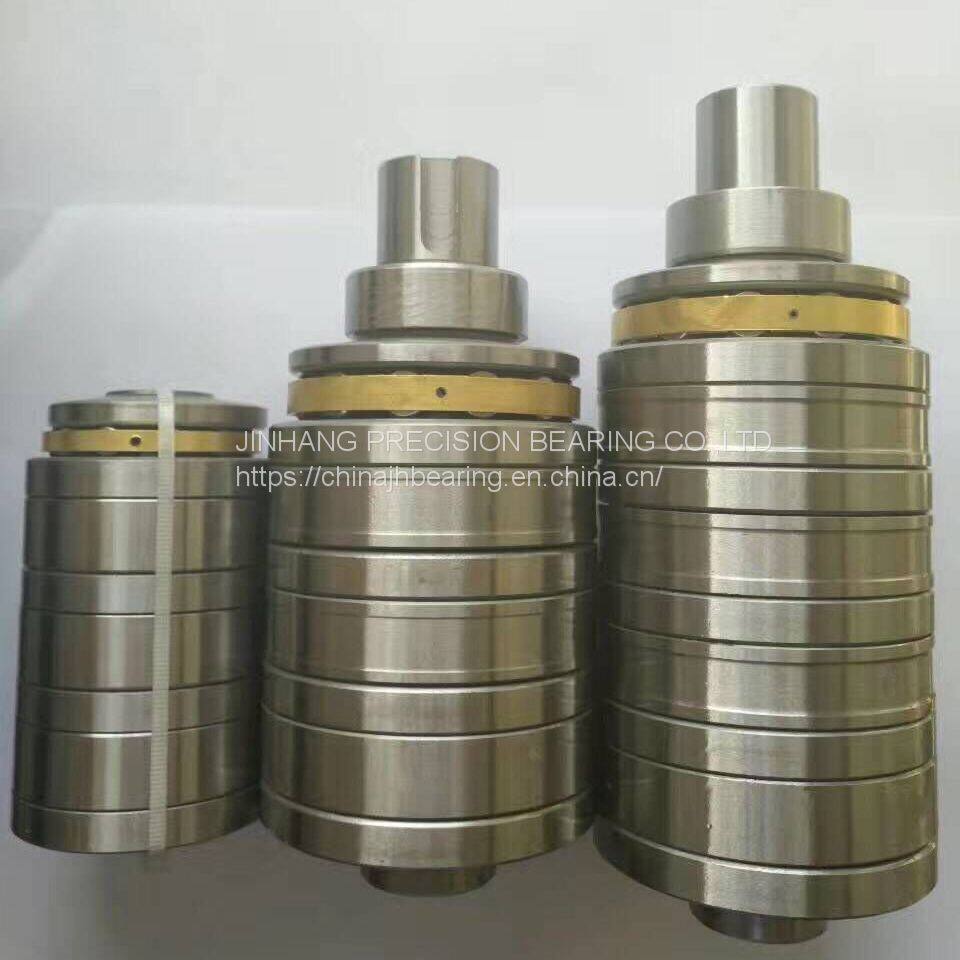

Tandem bearings T3AR2468A1 consist of several axial cylindrical roller bearings arranged in line, A system of rings and washers matched to each other ensures that all stages of the tandem bearing are subjected to uniform load at all times irrespective of the ratio C/F. The rings and washers are made from hardened steel. Tandem bearings are predominantly fitted with standard axial cylindrical roller and bearing assemblies. The thrust cylindrical roller bearing T3AR2468A1 with size 24x68x70mm, the inner diameter:24 mm, the outer diameter:68mm, the total height:70mm
Tandem bearing old code | Basic size unit(mm) | Basic load rating Unit (KN) | material | |||
Inner dia | Outer dia | Height | Cr | Cor | ||
T3AR2468A1 | 24 | 68 | 70 | 161 | 772 | Steel chrome |

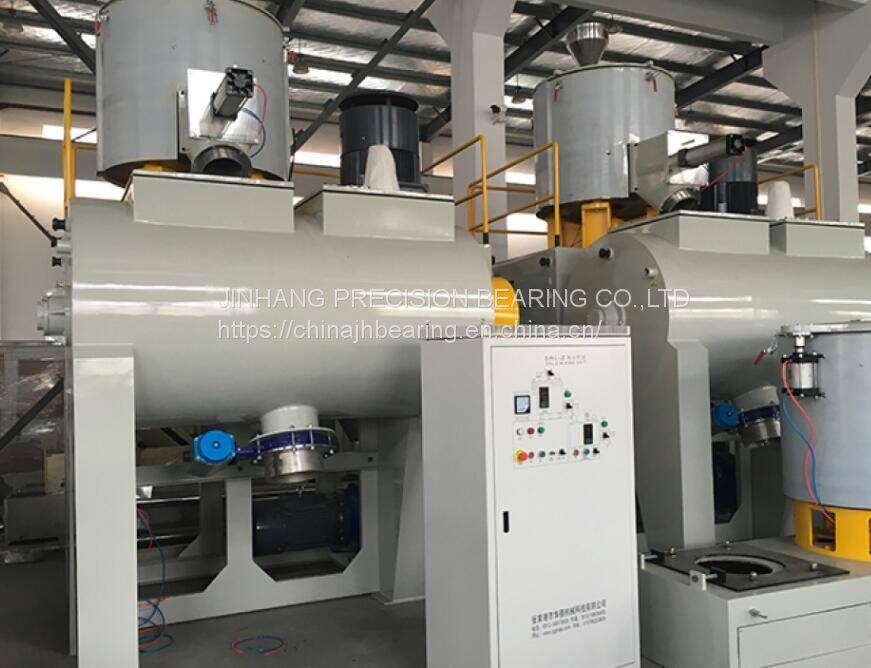

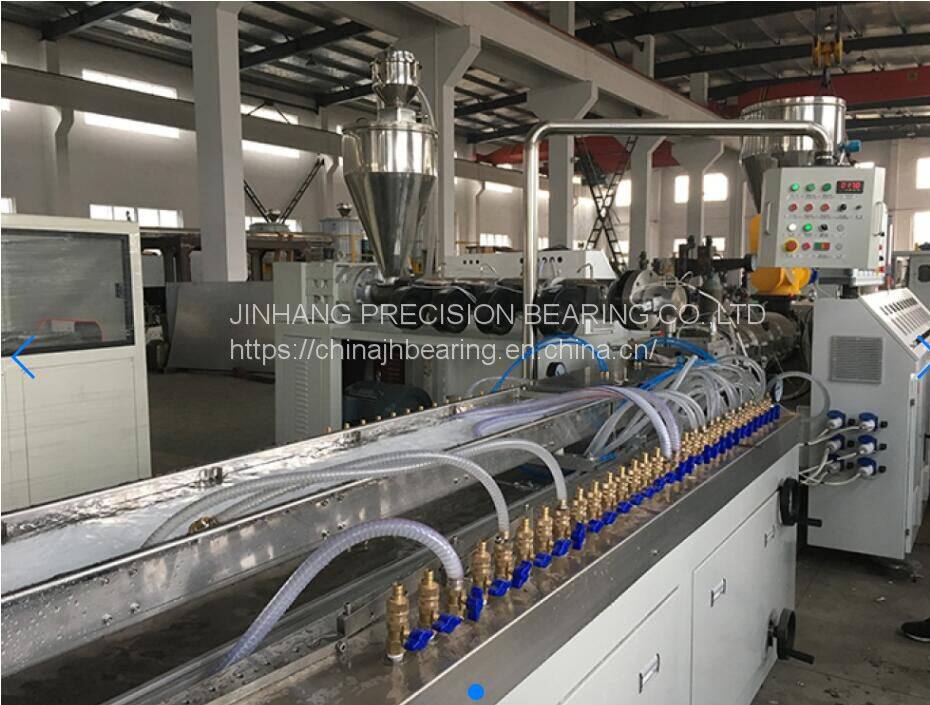

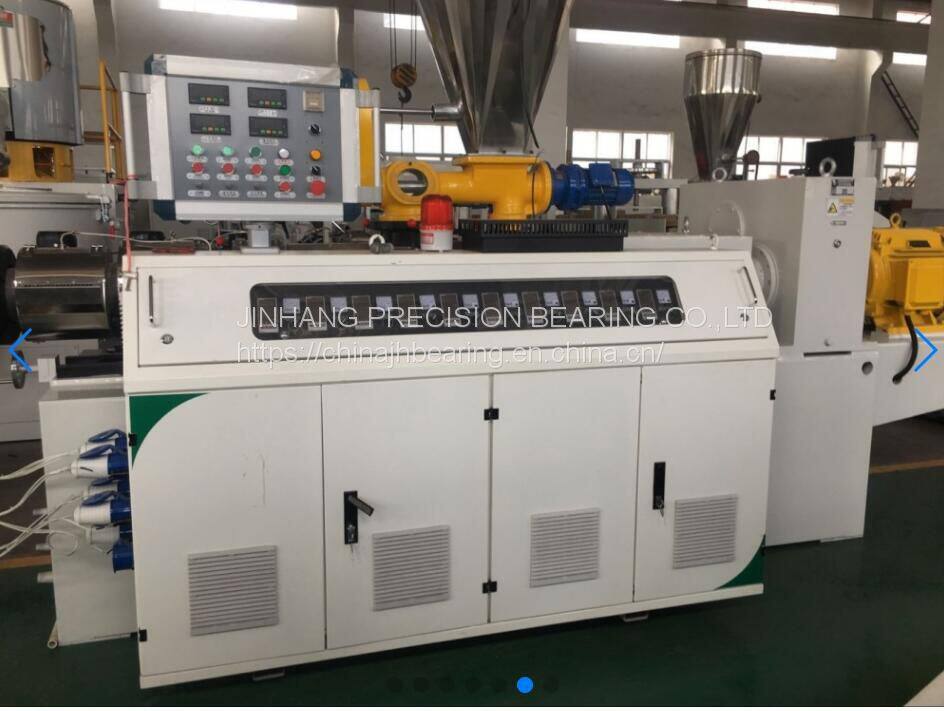

Tandem bearings have proven effective principally in gearboxes for single and twin screw extrudes in the rubber and plastics industry.
Other possible applications include:
■ deep hole drilling equipment
■ friction welding machines.
