Home > Products > Turntable Bearing > Bucket Wheel Excavators Use VLU 200744 Slewing Ball Bearing 848x634x56mm
Bucket Wheel Excavators Use VLU 200744 Slewing Ball Bearing 848x634x56mm
- SHANGHAI
- T/T
- 30 days
You May Like
-
Conveyor Booms Machine Use VLU 200844 Ball Bearing 948x734x56mm Without Teeth
-
Bucket Wheel Excavators Use VLU 200944 Bearing 1048x834x56mm Without Teeth
-
Slewing Ball Ring VLU 201094 1198x984x56mm for Material Handle Machine
-
VSA 200414 N 503.3x342x56mm Slewing Ball Bearing With External Teeth
-
Slewing Ring VSA 200544 N 640.3x472x56mm VSA Turntable Bearing Series
-
Offer VSA 200644 N Slewing Ball Bearing 742.3X572X56mm for Conveyor Booms
Product Details
| Brand Name | JHB | Place of Origin | China | |
| Model Number | VLU 200744 | Feature | Four Point Contact | |
| Seals Type | doulbe seal | Outside Diameter | 848, | |
| Bore Size | 634, | Gear Options | Nongeared |
Product Description

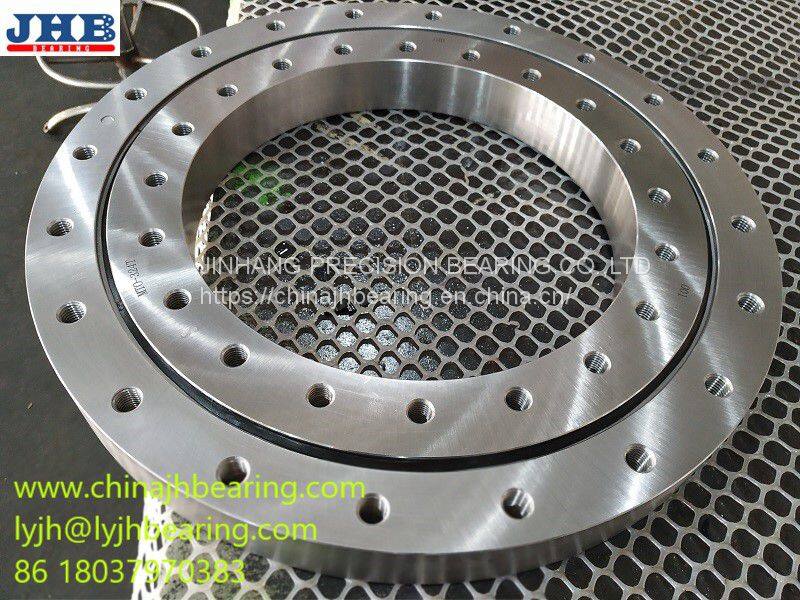

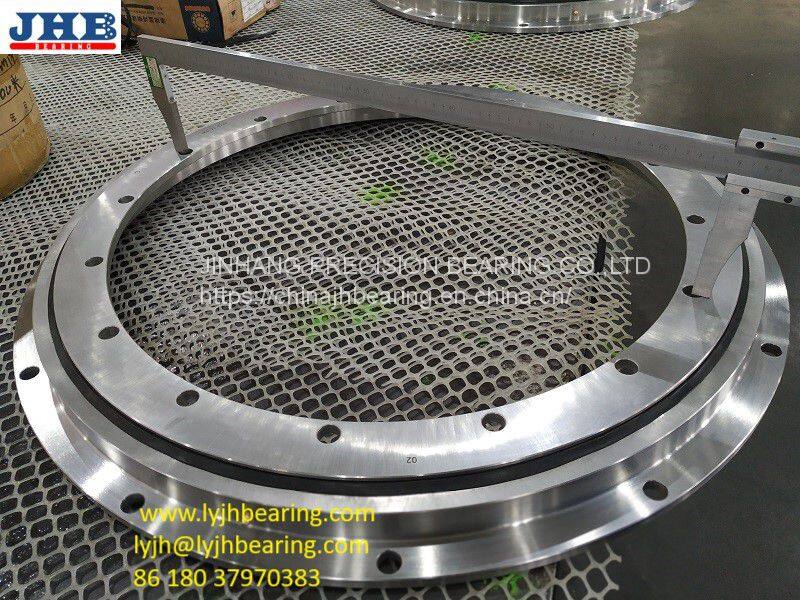

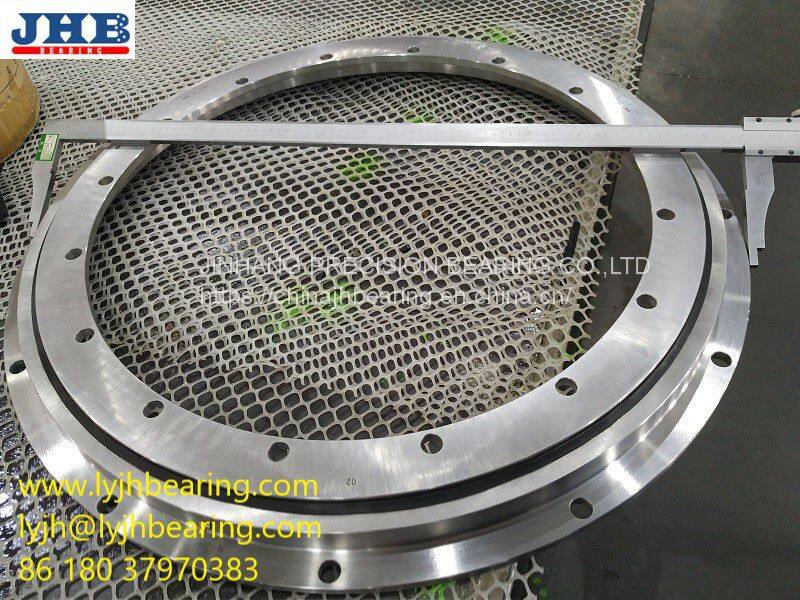

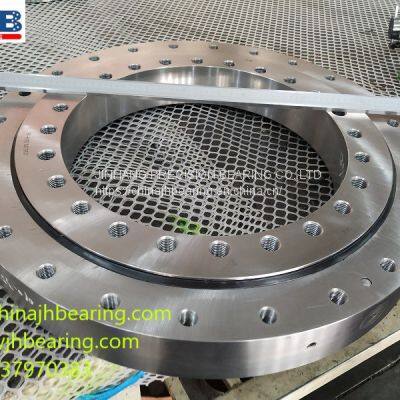

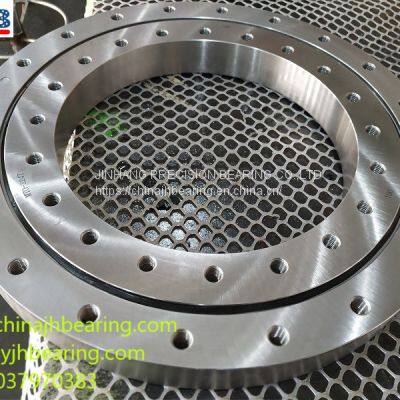

Bucket wheel excavators use VLU 200744 slewing ball bearing 848 x634x56mm
VLU 200744 slewing bearing is composed of two seat rings. It has compact structure, light weight, and four-point contact between steel ball and arc raceway. It can bear axial force, radial force and overturning moment at the same time. The construction machinery of rotary conveyor, welding manipulator, small and medium-sized crane and excavator can be selected. The outer diameter:848mm,Inner diameter:634mm,Height:56mm, It is the light series bearing structure with internal teeth.
Description | VLU 200744 slewing ball bearing |
Dimension(ODXIDXH) | 848x634 x56mm |
Outer diameter(OD) | 848 mm |
Inner diameter(ID) | 634 mm |
Width/Height/(H) | 56 mm |
weight | 42.5kgs |
Material | 42CrMo, 50Mn |
Rolling | LYC ball |
Package | Inside package: plastic film + kraft paper + blue tape; Outside package: standard export free-fumigation wooden case. |
The delivery time | 20-30 days |
Service | Technology communicate with engineer, and if you need the assembly drawing,we can send to you |
