Home > Products > Turntable Bearing > VSA 201094 N Slewing Ring With External Teeth 1198.1x1022x56mm for Ladle Turrets
VSA 201094 N Slewing Ring With External Teeth 1198.1x1022x56mm for Ladle Turrets
- SHANGHAI
- T/T
- 30 days
You May Like
-
VSI 200414 N Slewing Bearing 486x325x56mm With Teeth for Main Slewing Gear of Bucket Wheel Excavator
-
Tandem Thrust Roller Bearings 2 Stages TAB-017043-201 1.75*4.3765*3.875inch Size
-
Tandem Thrust Roller Bearings 2 Stages TAB-027047-203 Inch Size 2.757*4.7035*2.625
-
Extruder Gear Drives Use Thrust Roller Bearings TAB-030066-201 Inch Size 3*6.6265*3.625
-
Extruder Gear Drives Use Thrust Roller Bearings TAB-040082-201 Inch Size 4*8.2515*7.062
-
VSI 20 0544 N Bearing 616x444x56mm for Reclaimer and Stacker Machine
Product Details
| Brand Name | JHB | Place of Origin | China | |
| Model Number | VSA 201094 N | Feature | Four Point Contact | |
| Seals Type | doulbe seal | Outside Diameter | 1198.1, | |
| Bore Size | 1022, | Gear Options | Nongeared |
Product Description

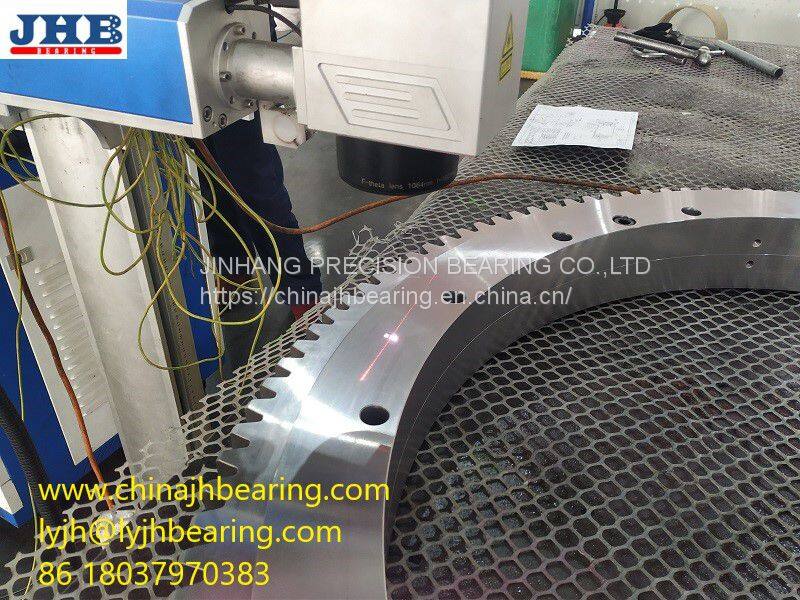

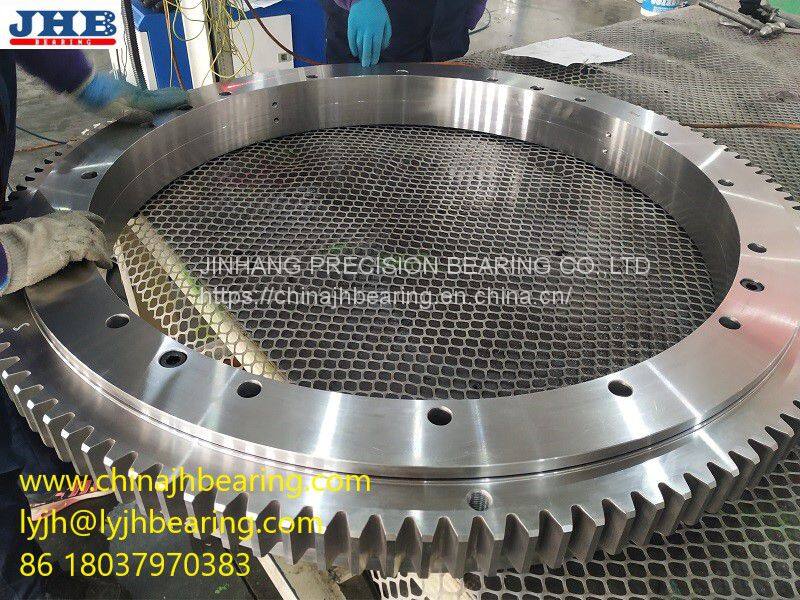

VSA 201094 N slewing ring with external teeth 1198.1x1022x56mm for ladle turrets
VSA 201094 N Slewing rings are sealed on both sides, lubricated with a high quality grease, can be re lubricated via lubrication nipples and are particularly easy to fit. The bearing rings are supplied without gear teeth or, in order to achieve simple drive solutions, are available with external or internal gear teeth.
slewing rings are designed as:four point contact bearings
these slewing rings without preload are robust and proven under very demanding operation; they place only slight demands on the flatness and perpendicularity of the adjacent construction.They are suitable for applications with low requirements for accuracy and rigidity of the bearing arrangement, for example in simple metalworking machines, wind power equipment and construction machinery The outer diameter:1198.1mm,Inner diameter:872mm,Height:56mm, It is the light series bearing structure with internal teeth.
Description | VSA 201094 N slewing ball bearing |
Dimension(ODXIDXH) | 1198.1x1022x56mm |
Outer diameter(OD) | 1198.1 mm |
Inner diameter(ID) | 1022 mm |
Width/Height/(H) | 56 mm |
weight | 91kgs |
Material | 42CrMo, 50Mn |
Rolling | LYC ball |
Teeth data | |
do | 1184mm |
m | 8 |
Teeth number | 148 |
Package | Inside package: plastic film + kraft paper + blue tape; Outside package: standard export free-fumigation wooden case. |
| 20-30 days |
Service | Technology communicate with engineer, and if you need the assembly drawing,we can send to you |
