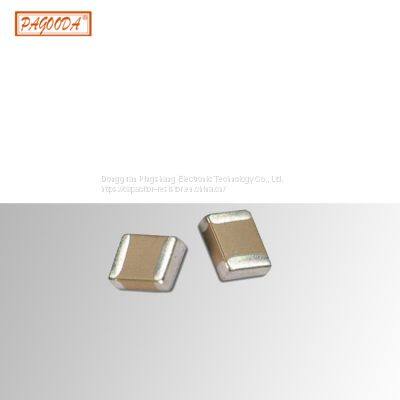

SMD capacitor 0603 X7R 473K

Ceramic capacitor details

Pingshang provides services for you

Product parameter

Series: 0201, 0402, 0603, 0805, 1206, 1210, 1808, 1812, 1825, 2220, 2225;

Capacity: 0.2p-100uF 10V-5000V 0.2Pf--10Uf full range;

Deviation: B=±0.1pF, C=±0.25pF, D=±0.5pF, F=±1%, G=±2%, J=±5%, K=±10%, M=±20%, Z=-20%+80%.

Features

★ The product has high dimensional accuracy, which is convenient for high-efficiency assembly of the automatic placement machine;

★ The terminal electrode is a three-layer electrode, suitable for wave soldering and reflow soldering;

★ The dielectric body and the surface are made of the same material, with little influence from environmental conditions, high insulation resistance, and high reliability;

★ Containing various temperature characteristic media from COG to Y5V, suitable for common electronic equipment such as communications, computers, household appliances and instruments.

Product advantages

1. Small size, easy for SMT processing, good solderability, compared with other traditional plug-in capacitor, it greatly solves the problem of small space on the circuit board. It is a representative product of high-tech products.

2. Long life span, the product life span is ten years.

3. Good stability, which is reflected in a stable requirement for the capacitance and withstand voltage of the smd capacitor .

4. Green environmental protection requirements, because the smd capacitor are made of ceramics as raw materials, environmental protection and energy saving are achieved.

5. Good heat insulation performance. Because it is made of ceramics as raw materials, it is a natural good material for heat insulation.

The above advantages are not available in traditional plug-in resistors.

▲  Physical anatomy diagram

Applicable industry

Suitable for LED lighting related products, power products, household appliances, computer side office products, large industrial equipment controllers, network equipment, communication products, digital products, automotive electronics, security monitoring systems and other fields.
