YRTS200 High Speed Axial Radial Bearings Yrts Rotary Table Bearings for Torque Motors
US$ 100 - 15000
/ Piece
1 Piece(Min. Order)
- Shanghai
- T/T L/C D/P D/A
- 7 days
You May Like
-
Customized HYRT200 Skf Axial Radial Cylindrical Roller Bearings High Precison Preloaded Yrt Bearing
-
Customized ZRT200 Axial Radial Cylindrical Roller Bearing CNC Turning Center Bearing YDPB
-
Customized AXRY200 Stone Working Machines Bearings High Precision Rotary Bearings
-
YRT260P2 Custom Made Skf Axial Radial Bearing YDPB Bearing
-
YRT260VSP Precision_cylindrical_Roller_Bearings_Precision_Rotary_Tables_Brochure
-
Custom Made HYRT260 Large Rotary Table Bearings for Precision Rotary Indexing Table
Product Details
| Brand Name | YDPB | Place of Origin | China | |
| Model Number | YRTS200 | Number of Row | Double Row | |
| Seals Type | no | Precision Rating | P4 | |
| Outside Diameter | 100, 1200 | Bore Size | 150, 1500 |
Product Description
Product Description
YRT bearings structure
It consists of a thrust/radial housing washer,a thrust/radial shaft washer,two axial needle roller and cage assemblies and cage assemblies and a group of radial cylindrical roller, housing washer and shaft washer have equally spaced fitting bolt holes.
YRT bearings advantages
This kind of bearings have high axial load and radial load ,and high tilting rigidity and high precision.
YRT bearings applications
This bearing can be used to the machine tool and other high precision machinery of the rotary table or sub-set,and also can be used for chuck,measuring instruments and test equipment and rotary table configuration, this bearing requires higher quality of the parts to match it .you can control screw tightening torque when install it.

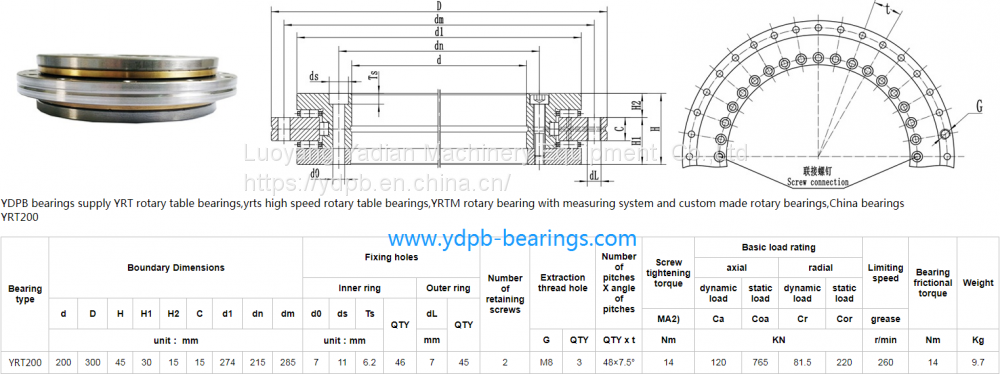

YRT200 Parameters
YRT bearings Different cage material we have
1.Brass cage bearing
2.Nylon cage with lower cost
4.Custom made YRT bearing with Gear ,dimesion custom made also available
