YDPB YRT325VSP Bearing for CNC Rotary Tables With Manual Tilting

YRT325 Rotary table Bearings size 325X450X60mm Axial and Radial Thrust Bearing rotary table bearing suppliers(Drawing is available if needed)

china yrt turntable bearing supplier
Model number- YRT325
Inner ring(mm)- 325
Outer ring(mm)- 450
Width(mm)- 60
Weight(Kg)-25
Fixing Hole(Outer ing)
Materials- GCR15/GCR15SiMn
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication
Rotating part- Inner ring/Outer ring
Load direction- Multi-load
Structure- Integrated Inner/Outer Ring

Main Models
YRT-50 Bearings,YRT-80 bearings,YRT-100 bearings,YRT-120 bearings,YRT-150 bearings,YRT-200 bearings,YRT-260 bearings,YRT-325 bearings,YRT-395 bearings,YRT-460 bearings,YRT-580 bearings,YRT-650 bearings,YRT-850 bearings,YRT-950 bearings,YRT-1030 bearings,YRT-1200 bearings.

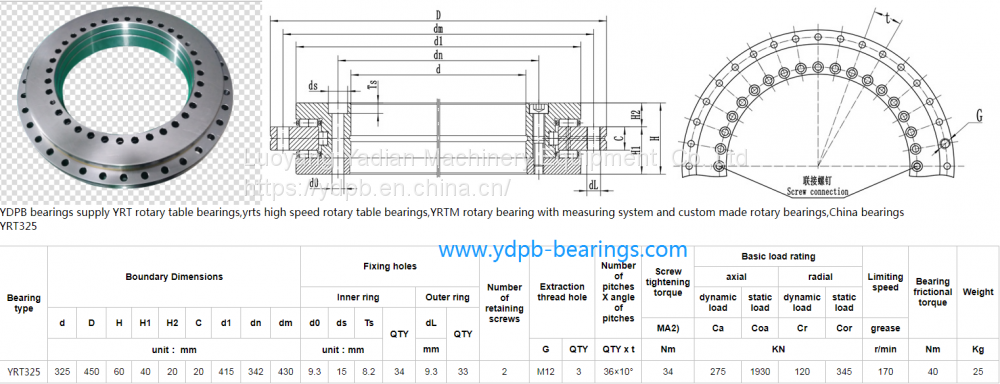

YRT325 Main parameters

Application
Applications "Product Application
?Precision machine tools
?precision Turntable, NC rotary table
?Rotation part of Machine tools
?Inspection instrument,Medical equipment
?Indexing plate of other precision machines etc"

Others
YRTS High speed rotary table bearings ,YRTM with angle measuring system bearings,ZKLDF SERIES ROTARY TABLE BEARING,Crossed roller bearing , Thin section bearing , Turntable bearing , Roller Bearing ,Bearing ,Slewing bearing ,Robotic bearing ,Rotary Table Bearing , YRT Rotary Table Bearing ,Angular Contact Ball Bearing , Ceramic bearings.
