Custom Made YRC395 Rotary Table Bearings for Tilting Heads Milling Torque Motor YDPB

YDPB YRT395 Rotary Indexing Table Machines Use Bearings Size 395x525x65mm Bulk YRT rotary Bearing
Model number- YRT395
Inner ring(mm)- 395
Outer ring(mm)- 525
Width(mm)- 65
Weight(Kg)-25
Fixing Hole(Outer ing)
Materials- GCR15/GCR15SiMn
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication
Rotating part- Inner ring/Outer ring
Load direction- Multi-load
Structure- Integrated Inner/Outer Ring

Main Models
YRT50 Bearings,YRT80 bearings,YRT100 bearings,YRT120 bearings,YRT150 bearings,YRT200 bearings,YRT260 bearings,YRT325 bearings,YRT395 bearings,YRT460 bearings,YRT580 bearings,YRT650 bearings,YRT850 bearings,YRT950 bearings,YRT1030 bearings,YRT1200 bearings.

Precision P4 P2 available

Material for ring: GCR15/ GCR15SiMn

Material for cage: Brass/nylon

Structure: with outer gear /without outer gear

Other customized

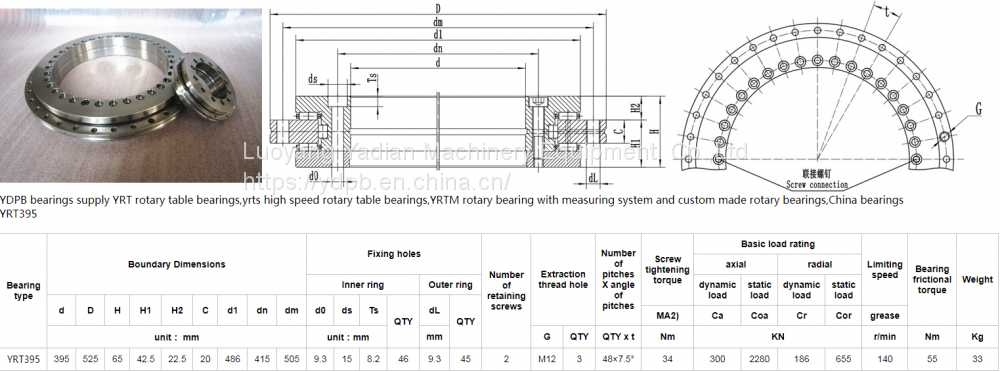

YRT395 Main parameters

Application

Applications "Product Application
?Precision machine tools
?precision Turntable, NC rotary table
?Rotation part of Machine tools
?Inspection instrument,Medical equipment
?Indexing plate of other precision machines etc"

Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.

More information ,pls contact us ~
