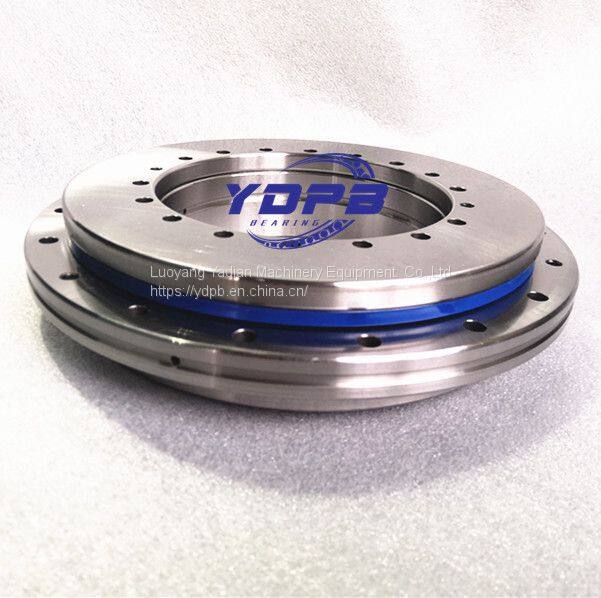

Custom Made YRTS650 High Speed Rotary Table Bearings Torque Motors Bearings YDPB
- Shanghai
- T/T L/C D/P D/A
- 7 days
You May Like
-
Custom Made YRC650 Ydpb Bearing Precision Cylindrical Roller Bearings-Rotary Table Bearing
-
YRT850P4 Larger Rotary Table Bearings Made in China Luoyang Yadian Machinery for Cnc Machine Tool
-
YRT850P2 Combined Needle Roller Bearings for LCM CNC Rotary Tables Vertical-horizontal Positioning
-
YRT850VSP Double Direction Thrust Bearings YRT Series for LCM Tilting Heads
-
YRTS850 High Speed High Precision 3-row Cylindrical Roller Bearings for CNC Machine Tool
-
Custom Made HYRT850 High Accuracy Axial/radial Rotary Table Bearings for Rotary Table
Product Details
| Brand Name | YDPB | Place of Origin | China | |
| Model Number | YRTS650 | Number of Row | Double Row | |
| Seals Type | no | Precision Rating | P4 | |
| Outside Diameter | 100, 1200 | Bore Size | 150, 1500 |
Product Description
YRT bearings structure
It consists of a thrust/radial housing washer,a thrust/radial shaft washer,two axial needle roller and cage assemblies and cage assemblies and a group of radial cylindrical roller, housing washer and shaft washer have equally spaced fitting bolt holes.
YRT bearings advantages
This kind of bearings have high axial load and radial load ,and high tilting rigidity and high precision.
YRT bearings applications
This bearing can be used to the machine tool and other high precision machinery of the rotary table or sub-set,and also can be used for chuck,measuring instruments and test equipment and rotary table configuration, this bearing requires higher quality of the parts to match it .you can control screw tightening torque when install it.

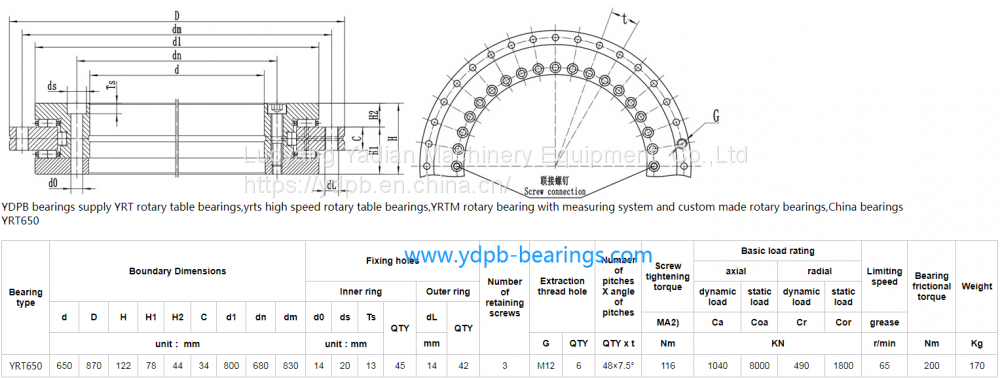

YRT650 Parameters
If need angle measuring system,pls contact us by email ydbearing@foxmail.com
YRT bearings Different cage material we have
1.Brass cage bearing
2.Nylon cage with lower cost
3.Custom made YRT bearing with Gear ,dimesion custom made also available
More information ,pls contact us
