High Rigidity Rotary Table Bearings for Four-axis Control Tables YRC850
- Shanghai
- T/T L/C D/P D/A
- 7 days
You May Like
-
Custom Made Nylon Cage YRT Rotary Table Bearings YRT850
-
YRT950P4 High Precision 3-row Cylindrical Roller Bearings for NC Rotary Table
-
YRT950P2 Larger Rotary Table Bearings Ultra-precision End Face Gear Plate of Turntable Bearing
-
Custom Made HYRT950 Larger Nylon Cage Rotary Table Bearings for Vertical and Horizontal Boring Machine
-
Custom Made ZRT950 Larger Nylon Cage Rotary Table Bearings for Industrial Robot Joints and Rotation
-
YDPB YRT1200P2 Custom Made Big Rotary Table Bearing China Luoyang Bearing
Product Details
| Brand Name | YDPB | Place of Origin | China | |
| Model Number | YRC850 | Number of Row | Double Row | |
| Seals Type | no | Precision Rating | P4 | |
| Outside Diameter | 100, 1200 | Bore Size | 150, 1500 |
Product Description

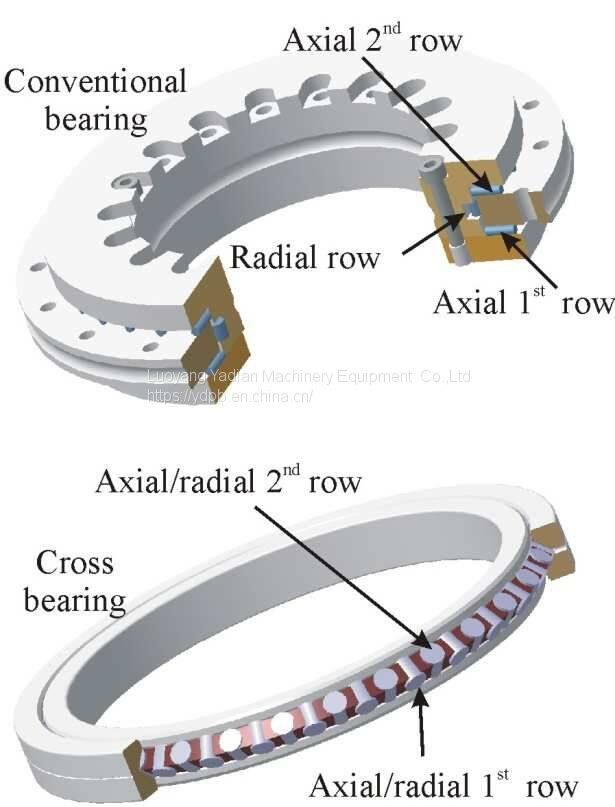

YRT bearings structure
It consists of a thrust/radial housing washer,a thrust/radial shaft washer,two axial needle roller and cage assemblies and cage assemblies and a group of radial cylindrical roller, housing washer and shaft washer have equally spaced fitting bolt holes.
YRT bearings advantages
This kind of bearings have high axial load and radial load ,and high tilting rigidity and high precision.
YRT bearings applications
This bearing can be used to the machine tool and other high precision machinery of the rotary table or sub-set,and also can be used for chuck,measuring instruments and test equipment and rotary table configuration, this bearing requires higher quality of the parts to match it .you can control screw tightening torque when install it.

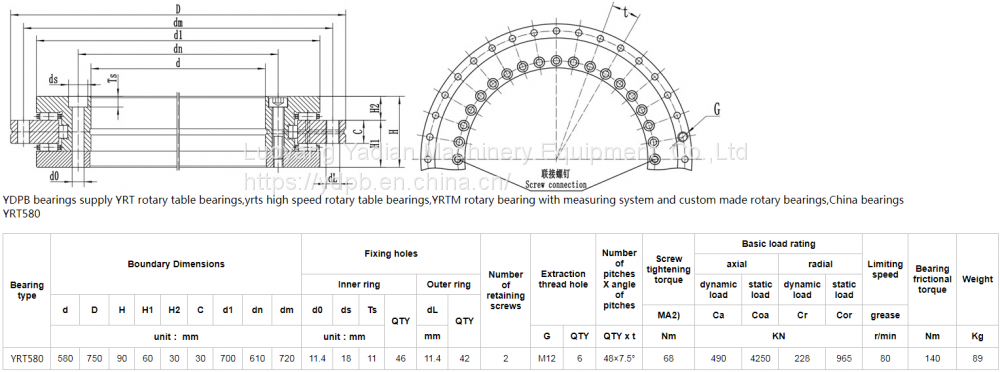

YRT580 Parameters
If need angle measuring system,pls contact us by email ydbearing@foxmail.com
YRT bearings Different cage material we have
1.Brass cage bearing
2.Nylon cage with lower cost
3.Custom made YRT bearing with Gear ,dimesion custom made also available
4.YRTS high speed bearing
