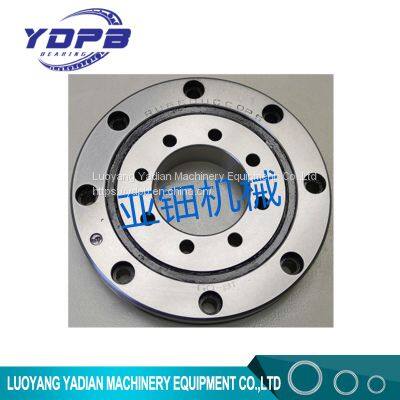

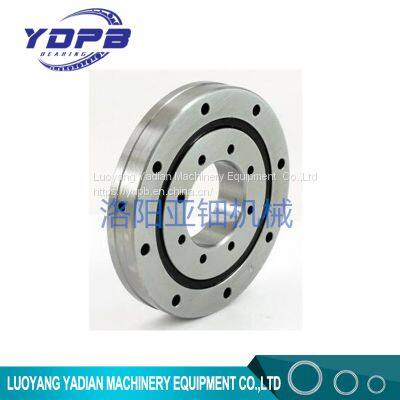

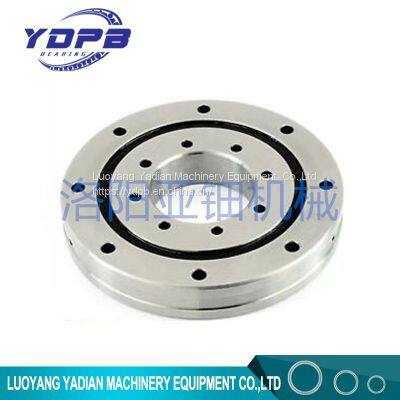

RU66UUCOP4 China Manipulator Cross Roller Bearing Supplier
US$ 1 - 100000
/ Piece
1 Piece(Min. Order)
- shanghai
- T/T L/C PayPal
- 7 days
You May Like
-
RU85UUCOP4 China Manipulator Cross Roller Bearing Supplier
-
RU85UUCOP5 China Cross Roller Bearing Factory
-
RU85UUCCOP5 Cheap Thin Section Cross Roller Bearing YDPB Bearing
-
RU85 G UUCCOP4 High Precision Cross Roller Bearing Manufacturers
-
RU85 G UUCCOP5 Low Price Medical Equipment Cross Roller Bearing 55X120X15mm
-
RU85 X UUCCOP5 Manipulator Cross Roller Bearing in Stock 55X120X15mm
Product Details
| Brand Name | OEM | Place of Origin | China | |
| Model Number | RU66UUCCO | Number of Row | Other, multi-row | |
| Precision Rating | P4 | Outside Diameter | 20, 350 | |
| Bore Size | 12, 45 |
Product Description
RU special type is a bearing with integrated inner- and outer ring. It is being used in cases where high rotational accuracy of both the inner- and outer rings is required. Rolling and Plain bearings,accessories RU series, without gear teeth,Sealed on both sides.
Series Models:
RU42,RU66,RU85,RU124(G)(X),RU148(G)(X),RU178(G)(X),RU228(G)(X),
RU297(G)(X),RU445(G)(X)
Variety choose
Precision can be P5 P4 P2,clearance can be CCO or CO
If you want anti-rust ,pls contact us
Note: CRBF series structure and parameters same as our Ru series ,if need special ,pls contact us .

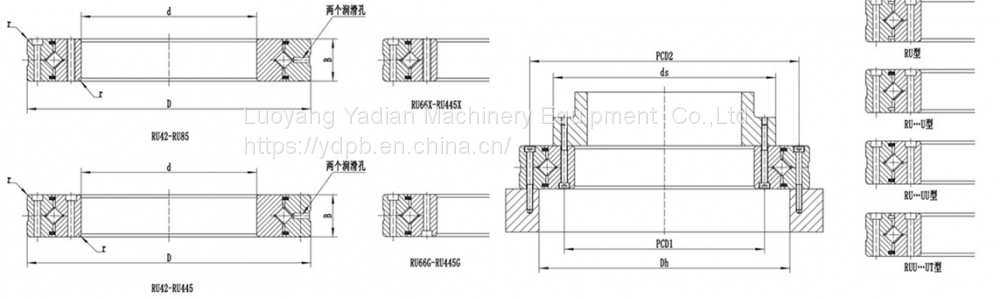

Main Parameters for RU28UUCCOP5
| Bearings Model | Boundary Dimensions | Shoulder height | Basic load rating（radial） | Relation between the mounting holes | Weight | ||||||||||
| ID | OD | PCD | B | Oil hole | rmin | Inner ring | Outer ring | ||||||||
| d | D | dp | B | d1 | ds | Dh | Cr/kN | Cor/kN | PCD1 | mounting holes | PCD2 | mounting holes | kg | ||
| RU66 | 35 | 95 | 66 | 15 | 3.1 | 0.6 | 59 | 74 | 17.5 | 22.3 | 45 | 8-M4 through | 83 | 8-ф4.5 throug ф8 counterbore depth4.4 | 0.62 |
www.ydpb-bearings for more products list
