Manufacturers Price Servo Motor 100ton Plastic Injection Blow Moulding Machine for Sale
US$ 40,000 - 80,000
/ Set
1 Set(Min. Order)
- manufacturers price servo motor injection blow moulding machine
- T/T Credit Card
You May Like
-
45 IBM Injection Blow Molding Machine With High Output
-
Faygo High Speed Plastic Injection Molding Machine/PET Injection Molding Machine
-
High Performance !Gas Water Bottle PET Bottle Blow Molding Machine Price
-
Automatic and PET Plastic Processed Water Bottles 5 Liter Making Machine Prices
-
Latest Model/new Model Blowing Machine
-
1.5 Liter Plastic Water Bottle Semi Automatic Blow Moulding Machine Price
Product Details
| Brand Name | Faygo | Place of Origin | Jiangsu, China | |
| Model Number | FG40 | Certification | CE;GC;IAF;ISO9001:2000 | |
| Plastic Type | Thermoplastic | After-sales Service Provided | Engineers available to service machinery overseas | |
| Condition | New | Automatic | Yes | |
| Opening Stroke | 280-1500 Mm | Clamping Force | 600KN-16000KN | |
| Injection Rate | 300g/s ~ 1200g/s | Injection Weight | 101g-6280g, 101g-6280g | |
| Style | Vertical | Type | Injection Blow Molding |
Product Description
Product Description

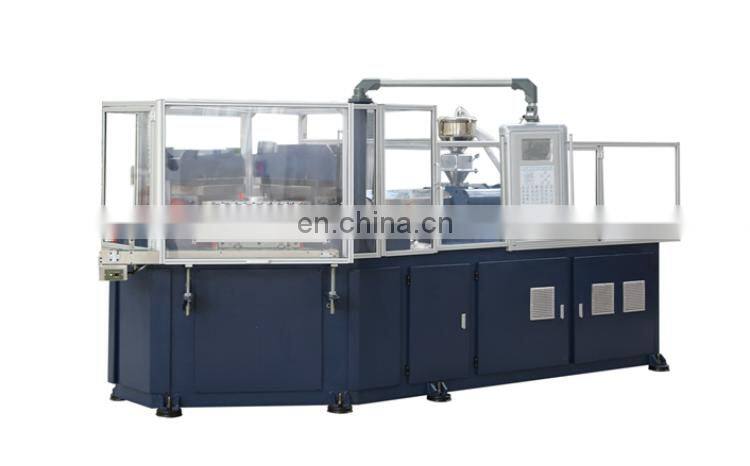

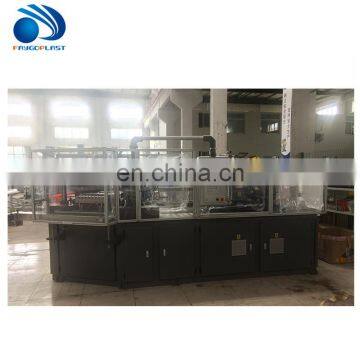

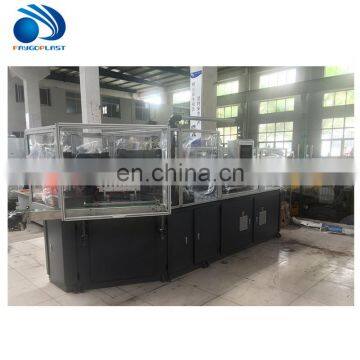

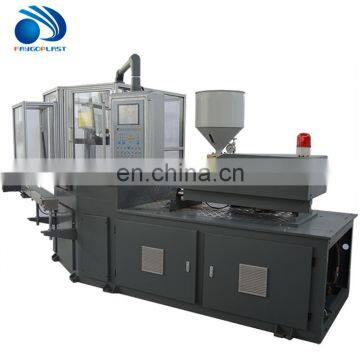

Manufacturers price servo motor 100ton plastic injection blow moulding machine for sale
The machine is a full automatic injection molding equipment, suitable for processing PP, PS, PE, SAN, PMMA, PC, PETG, PEN and other thermoplastic, widely used in pharmaceutical, health care products, food and beverage, cosmetics, etc..One Mold with Multi-caivity for automatic continuous production technology, using three horizontal station rotary device, hot runner system and multi-stage injection molding system,injection molding, blow molding, demolding three position and action to ensure equipment of high efficiency and energy saving operation, ensure smooth product bottle, the bottleneck of inner and outer diameter and thread high precision, no waste is the standard equipment of modern enterprise environment-friendly production.

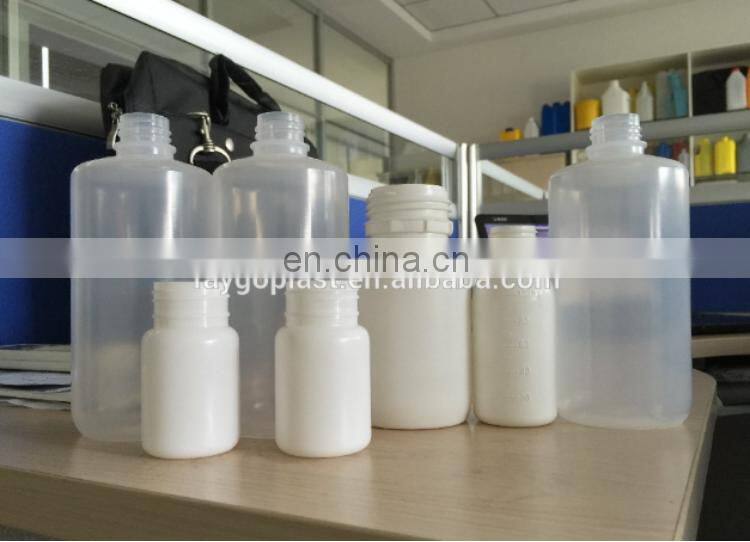

Injection Molding Machine samples:
Technical parameters
Injection blow molding machine parameters:
| Name | Unit | FG40 |
| Screw diameter | mm | 40 |
| L/D Ratio | 22:1 | |
| Injection Capacity | G | 176 |
| Heating section | 3+N | |
| Total power | KW | 20 |
| System pressure | Mpa | 14 |
| Compressed air pressure | Mpa | 0.7-1.2 |
| Cooling water pressure | Mpa | 0.3-0.4 |
| Product maximum diameter | mm | 120 |
| Product maximum length | mm | 200 |
| Product volume | ml | 3-800 |
| Dimensions | M | 3*1.3*1.7 |
| Equipment weight | Ton | 3.5 |
Mode cavity number control table:
| Product Size | FG40 | |||
| Volume | Neck Dia. | Height | Body Dia. | Cavities |
| 5ML | 10 | 35 | 45 | 9 |
| 10ML | 12 | 40 | 20 | 9 |
| 20ML | 15 | 50 | 25 | 8 |
| 30ML | 20 | 60 | 30 | 7 |
| 40ML | 22 | 65 | 35 | 7 |
| 60ML | 28 | 75 | 40 | 6 |
| 80ML | 30 | 80 | 45 | 5 |
| 100ML | 32 | 85 | 50 | 4 |
| 150ML | 35 | 90 | 53 | 3 |
| 200ML | 38 | 100 | 58 | 3 |
| 400ML | 42 | 120 | 65 | 2 |
| 650ML | 50 | 160 | 80 | 1 |
| 800ML | 40 | 200 | 90 | 1 |
| 100ML | 45 | 200 | 90 | 1 |
Our customers

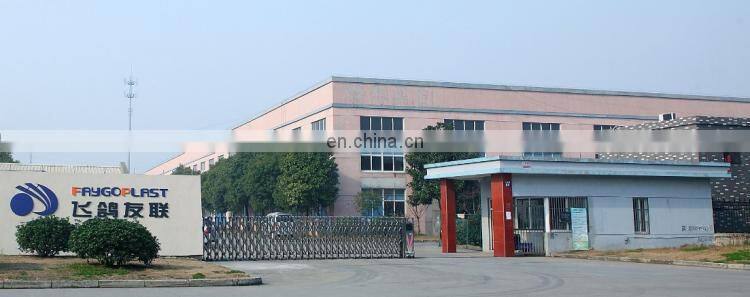

About us
