Home > Products > Ungrouped > Automatic Manufacturers Price 1 Liter Plastic Pet Water Bottle Extrusion Blow Molding / Moulding Machine for Sale

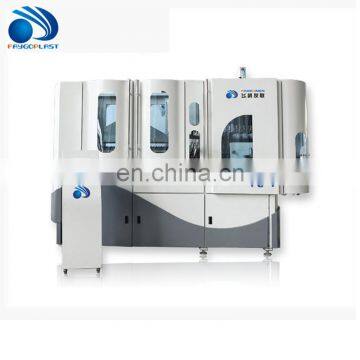

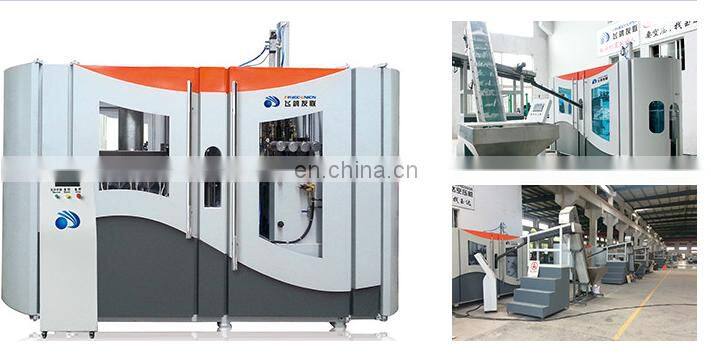

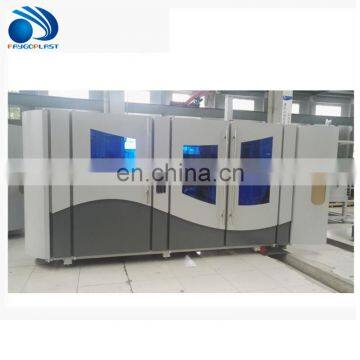

Automatic Manufacturers Price 1 Liter Plastic Pet Water Bottle Extrusion Blow Molding / Moulding Machine for Sale
US$ 120,000 - 125,000
/ Set
1 Set(Min. Order)
- SHANGHAI
- T/T Credit Card
You May Like
-
Machine to Make Bottle Plastic From FAYGO UNION
-
Biodegradable Heat Shrink Water Bottle Machine Make Machine
-
Double Colour Film Blowing Machine Set,PET Blow Film Extrusion Machine,Double Colour PET Film Blowing Machine Price
-
High Density 250ml-2000ml/6500-8000BPH Full-Automatic PET Bottle Blowing Machine
-
Linear Type 12000 Bph PET Bottle Blowing Machine
-
Automatic Pet Bottle Blowing / Blow Moulding / Molding Machine
Product Details
| Brand Name | FAYGO | Place of Origin | Jiangsu, China | |
| Model Number | FG8 | Certification | CE ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas | Weight | 4500kg | |
| Dimension(L*W*H) | 4.5*1.3*2.3m | Voltage | Customized | |
| Power | 95KW | Condition | New |
Product Description
Product Description

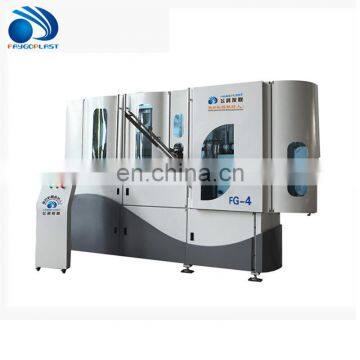

| Type | FG4 | FG6 | FG8 | ||
| Bottle specification | Mold number(piece) | 4 | 6 | 8 | |
| Max capacity(BPH) | 6500-8000 | 9000-10000 | 12000-13000 | ||
| Max volume(mL) | 2000 | 2000 | 750 | ||
| Max height(mm) | 328 | 328 | 290 | ||
| round bottle max diameter(mm) | 105 | 195 | 75 | ||
| Square bottle max diagonal(mm) | 115 | 115 | 76 | ||
| Preform specification | Suitable inner bottle neck (mm) | 20-25 | 20-25 | 20-25 | |
| Max perform length(mm) | 150 | 150 | 150 | ||
| Electricity | Total installation power(KW) | 51 | 51 | 97 | |

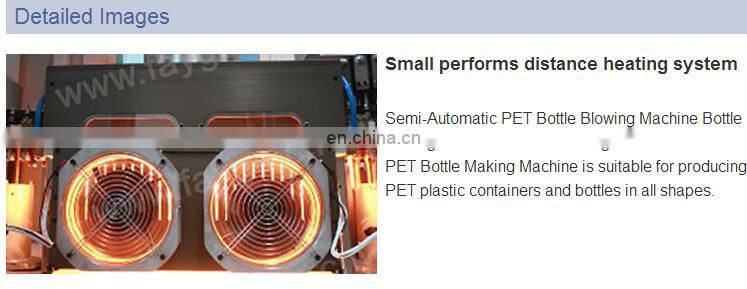

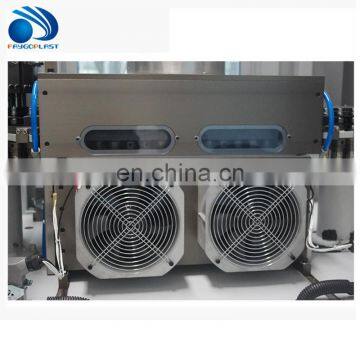

| Heating oven total power(KW) | 46 | 46 | 92 | ||
| Heating oven real power(KW) | 25 | 30 | 45 | ||
| Voltage/Frequency(V/Hz) | 380(50Hz) | 380(50Hz) | 380(50Hz) | ||
| Allowed voltage fluctuation range | ±10% | ±10% | ±10% | ||
| Compressed air | Pressure (bar) | 30 | 30 | 30 | |
| Air consumption(m3/min) | 4 | 6 | 8 | ||
| Cooling water | Mold water | Pressure (bar) | 4-6 | 4-6 | 4-6 |
| Temperature regulation range | 6-13 | 6-13 | 6-13 | ||
| Flow rate(L/min) | 45 | 45 | 45 | ||
| Oven water | Pressure (bar) | 4-6 | 4-6 | 4-6 | |
| Temperature regulation range | 6-13 | 6-13 | 6-13 | ||
| Flow rate(L/min) | 22 | 22 | 22 | ||
| Machine specification | Machine dimension(m)(L*W*H) | 3.3*1*2.3 | 4.3*1*2.3 | 4.8*1*2.3 | |
| Machine weight(Kg) | 3500 | 4000 | 4500 | ||

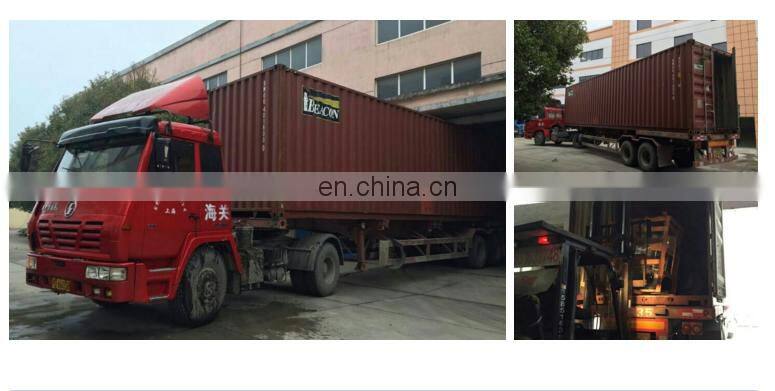

Packaging & Shipping
Our Services
One stop Station Services
1)Stand-by engineers teams to provide overseas installation and commissioning service.
2)1 year warranty.During warranty ,we provide free of charge for repairing cost.
3)lifetime maintence .After-sales department can provide life long maintence service.
Company Information
vxgd
If you want get more information, please contact us, thanks!

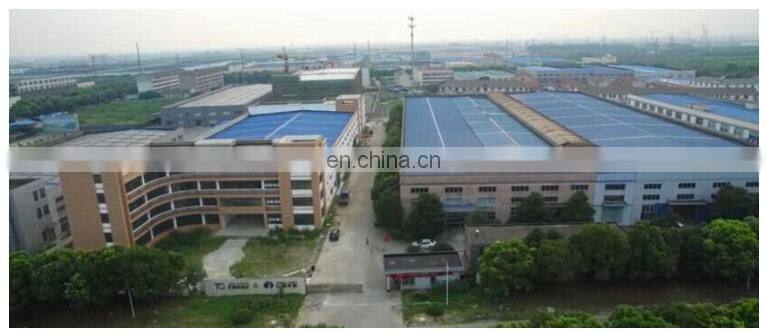

Our company is near Shanghai ,about150km. Contact person :Sarah He
Whatsapp/Facebook:+86 188629865739
Mobile:0086-18862985739
Welcome to our factory anytime!
