Hot Sale !! HDPE/ LDPE/ PP / PET Plastic Bottle Injection Stretch Blow Moulding Machine With CE Certificate

FOB Price

US$ 40,000 - 80,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Faygo	Place of Origin	Jiangsu, China
Model Number	FG40	Certification	CE;GC;IAF;ISO9001:2000
Plastic Type	Thermoplastic	After-sales Service Provided	Engineers available to service machinery overseas
Condition	New	Automatic	Yes
Opening Stroke	280-1500 Mm	Clamping Force	600KN-16000KN
Injection Rate	300g/s ~ 1200g/s	Injection Weight	101g-6280g, 101g-6280g
Style	Vertical	Type	Injection Blow Molding

Packaging & Shipping

Technical parameters

Name	Unit	FG40	FG60	FG80	FG100
Screw diameter	mm	40	45	50/55	60
L/D Ratio		22:1	22:1	22:1	22:1
Injection Capacity	9	176	260	314	415
Heating power	KW	7.5	10	10.8	12
Heating section		3+N	3+N	4+N	4+N
Injection mould clamping force	KN	400	600	800	1000
The injection mold opening stroke	mm	140	140	140	150
Mould clamping force	KN	60	100	120	150
Blow mold opening stroke	mm	140	140	140	150
Injection stroke	mm	160	160	160	160
Mold Size	mm	480*340	600*390	800*400	1000*460
Min. Thickness of Mold	mm	180	240	280	280
Main motor power	KW	11	18.5	22	30
Reject Stroke	mm	210	230	230	230
Dry Cycle Time	s	3.5	4	4	4
Total power	KW	20	30	40	45
Operating power	%	52-70	52-70	52-70	52-70
System pressure	Map	14	14	14	14
Compressed air pressure	MPa	0.7-1.2	0.7-1.2	0.7-1.2	0.7-1.2
Cooling water pressure	MPa	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4
Product maximum diameter	mm	120	120	120	120
Product maximum length	mm	200	220	220	220
Product volume	ml	3-800	3-800	3-1000	3-1000
Dimensions	M	31.31.7	3.51.41.8	41.62	4.51.82
Equipment weight	Ton	3.5	5	8	10

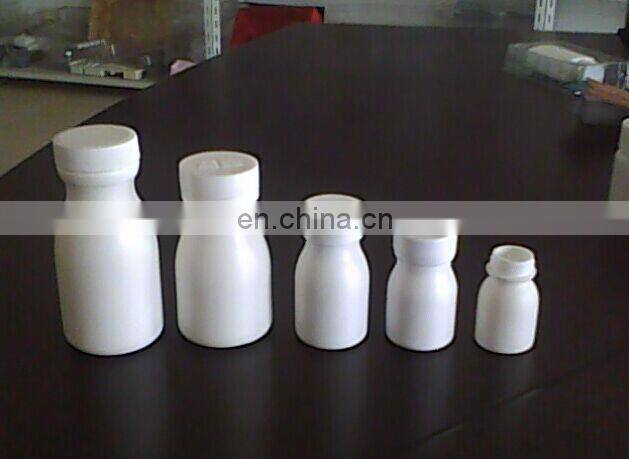

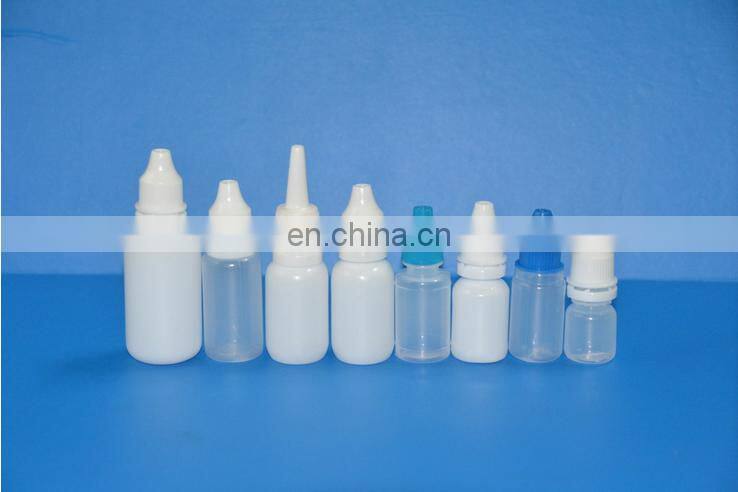

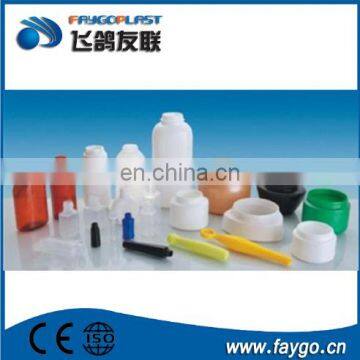

Injection Molding Machine samples:

Equipment Productive Flow Sheet

1,STOCK PREPARATION/INJECTION DEVICE

2,HOT-FLOW CHANNEL

3,ENTIRE BAR

4,BOTTLE BLANK

5,INJECTION MOLD

6,INJECTION STATION

7,BLOW STATION

8,BLOW MOLDING

9,STRIPPER STATION
