22kw Three Stage Air Compressor
US$ 2,500 - 10,000
/ Set
1 Set(Min. Order)
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Brand Name | HENGDA | Place of Origin | Jiangsu, China | |
| Model Number | 52SH-2.0/40 | Certification | CE Certification | |
| After-sales Service Provided | Engineers available to service machinery overseas | Weight | 400kg, 660 Kg | |
| Dimension(L*W*H) | 1300*800*1115mm | Voltage | 220V/380V | |
| Power | 22 kw |
Product Description
Detailed Configuration:
- Heavy duty roller bearing
- Precision cast iron cylinders
- Solid piece connecting rods
- High flow valves assemb
- Filled synthetic lubricant
- Efficient motor
- Safety valves protection
- Heavy duty discharge check-valve
- Inter and after-cooler
- Easy access cast iron crankcase
Specification for air compressor:
Model | Host Model | FAD (m³/min) | Pressure (MPa) | Power (Kw) | Speed (r.p.m) | Size (mm) | Weight (Kg) |
34WH-1.0/40 | H1031 | 1.0 | 4.0 | 15 | 790 | 1420*840*840 | 470 |
4-34WH-4.0/40 | H1031 | 4.0 | 4.0 | 4*15 | 790 | 2020*1570*2000 | 2100 |
6-34WH-6.0/40 | H1031 | 6.0 | 4.0 | 6*15 | 790 | 3495*1565*2000 | 3050 |
52SH-2.0/40 | H2041 | 2.0 | 4.0 | 22 | 695 | 1800*850*1110 | 660 |
2-52SH-4.0/40 | H2041 | 4.0 | 4.0 | 2*22 | 695 | 3650*850*1110 | 1800 |
49SH-3.0/40 | H2541 | 3.0 | 4.0 | 30 | 690 | 2020*935*1100 | 920 |
2-49SH-6.0/40(vertical) | H2541 | 6.0 | 4.0 | 2*30 | 690 | 2200*1120*2250 | 1905 |
2-49SH-6.0/40 (horizontal) | H2541 | 6.0 | 4.0 | 2*30 | 690 | 4300*990*1130 | 1980 |

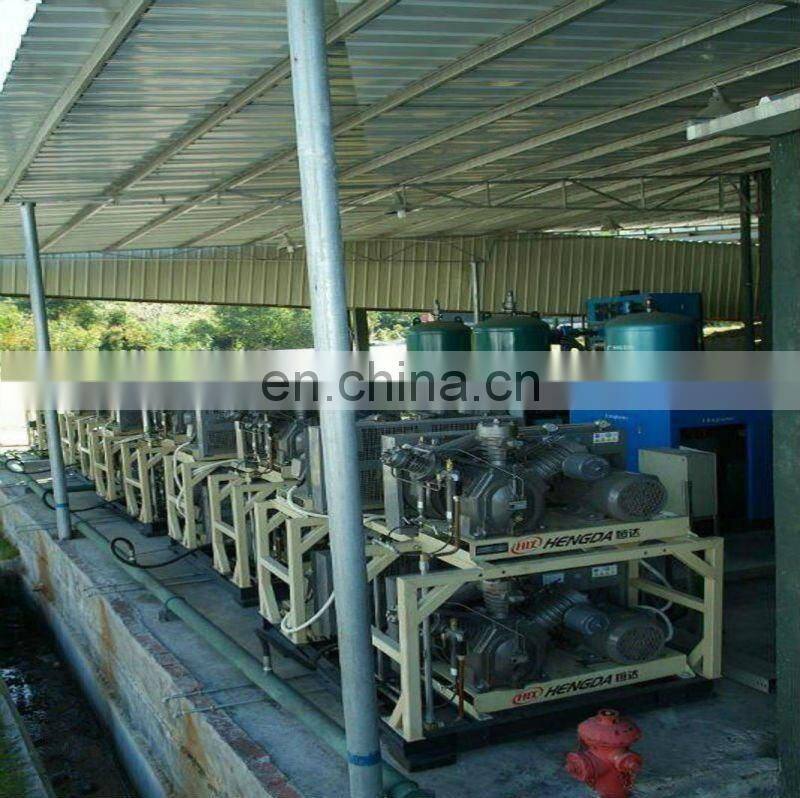

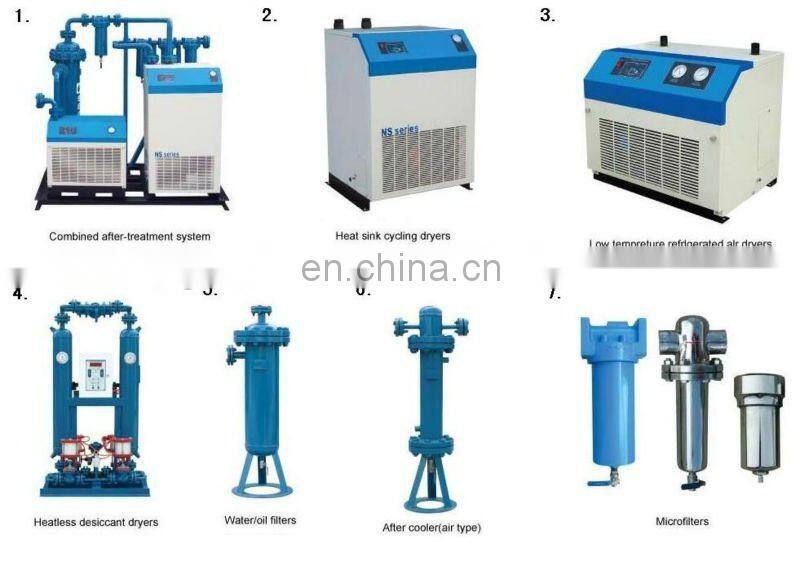

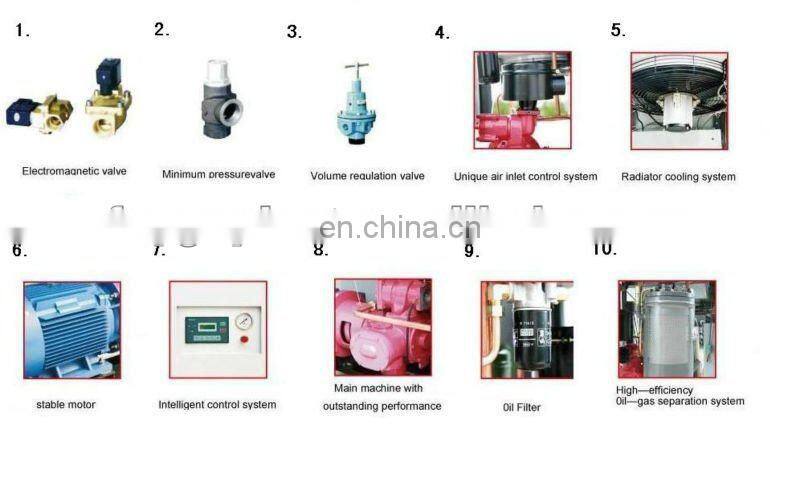

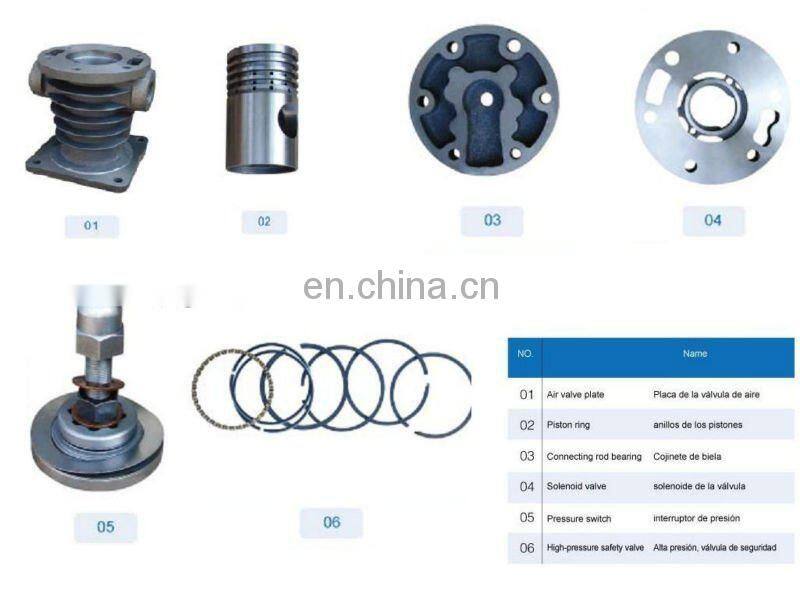

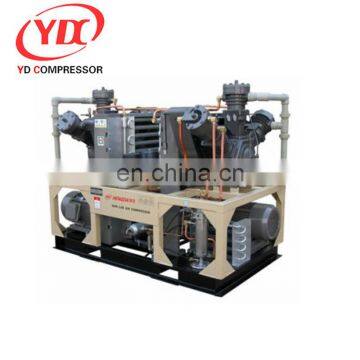

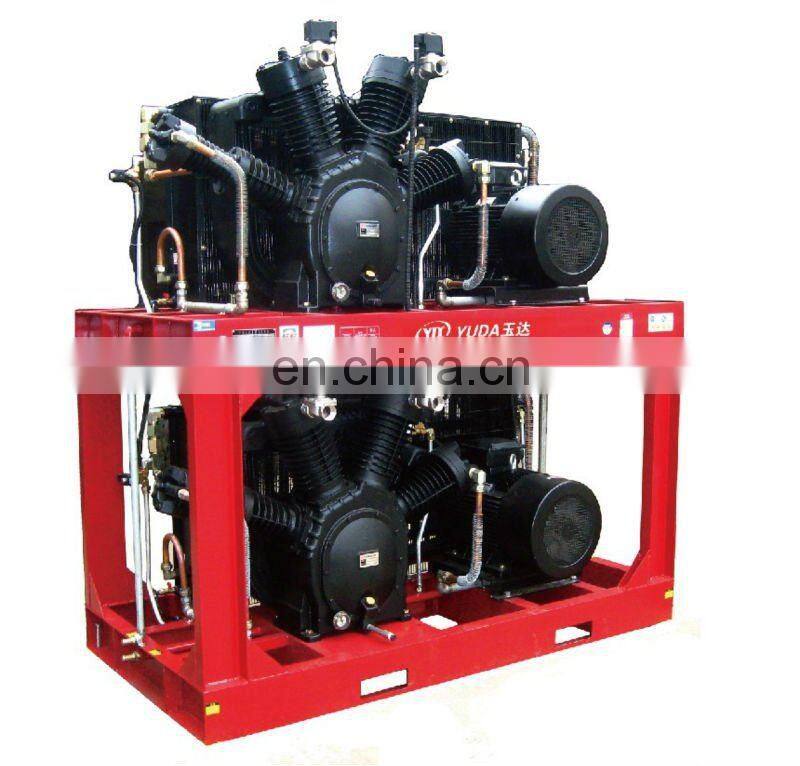

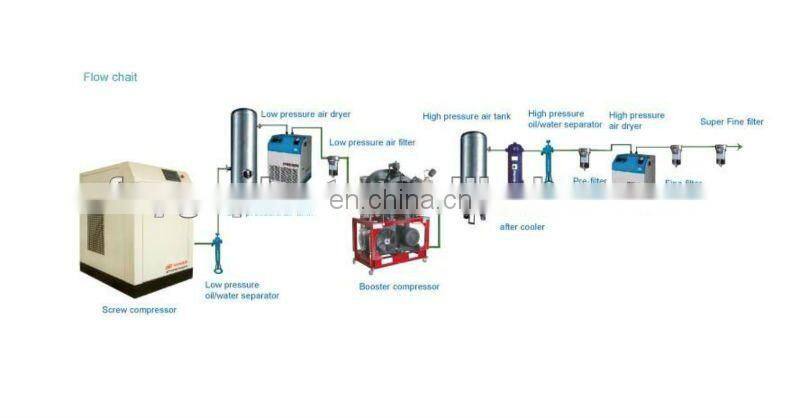

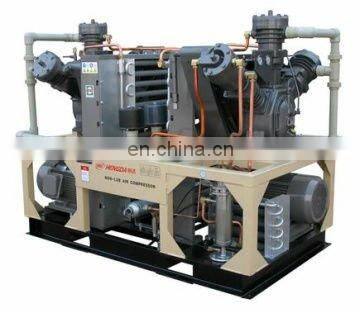

Pictures about our products:
