Product Details
| Brand Name | Hengda | Place of Origin | Jiangsu, China | |
| Model Number | WH-1.0/40 | Certification | ISO/CE/GC/IAF/CNAS | |
| Weight | 470kg | Dimension(L*W*H) | 1400*840*840(mm) | |
| Voltage | 380V(according to your request) | Condition | New |
Product Description

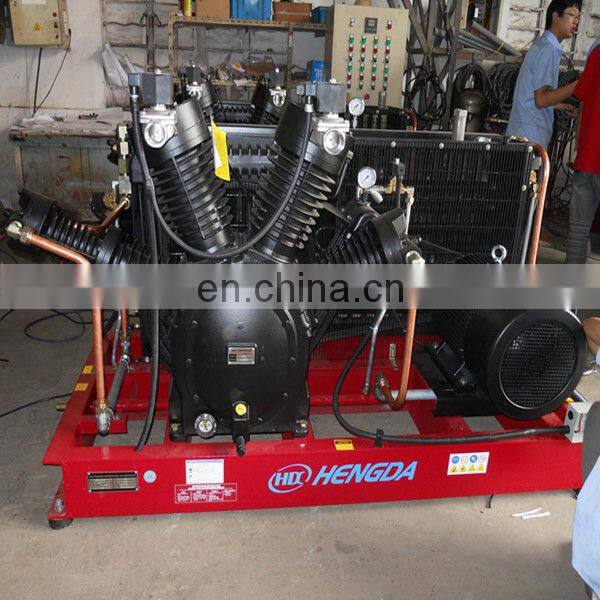

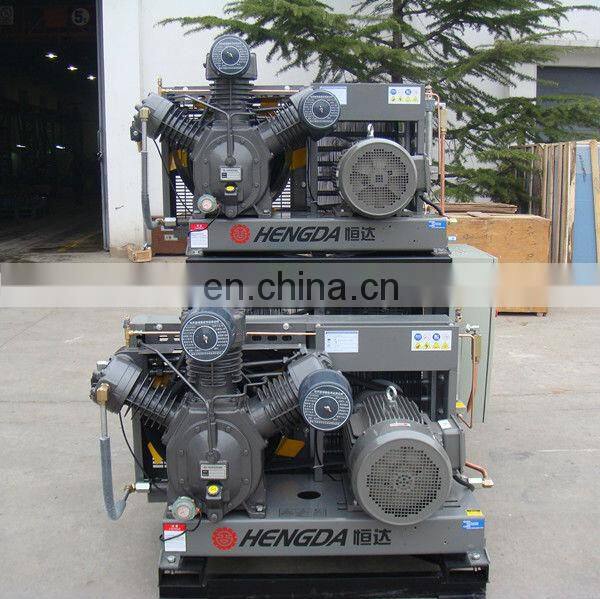

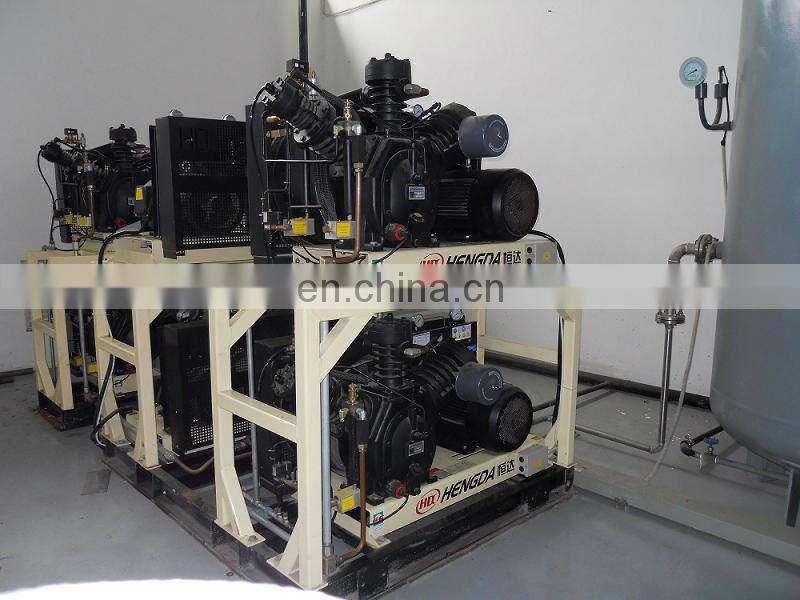

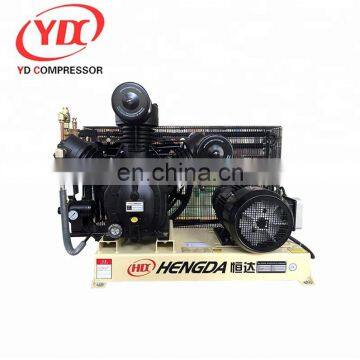

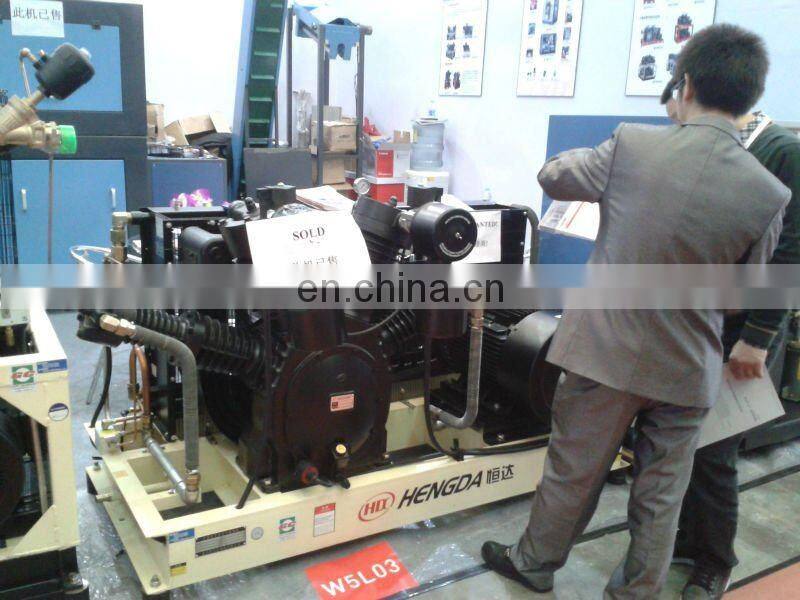

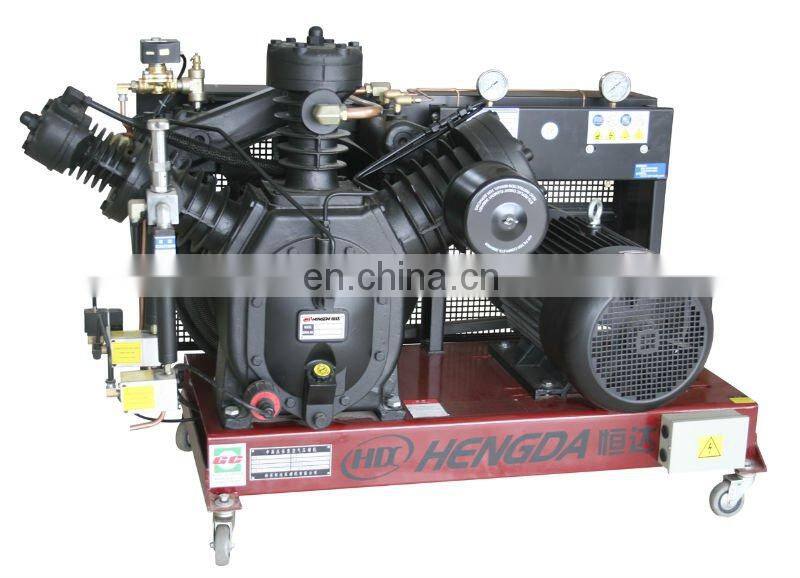

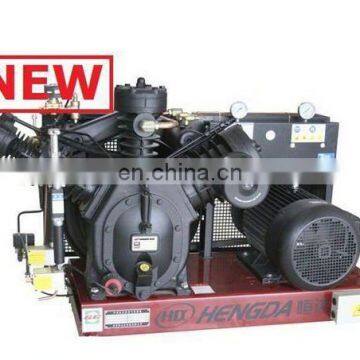

30BAR-40BAR High pressure compressor 40bar High pressure compressor screw air compressor
1. Main data
Model | Air capacity (M3/min) | Working pressure (Bar) | Power(Kw) | Speed(r.p.m) | Weight(Kg) |
VH-0.7/30 | 0.7 | 30BAR | 7.5 | 680 | 310 |
WH-1.0/30 | 1.0 | 11 | 600 | 430 | |
WH-1.2/30 | 1.2 | 15 | 760 | 450 | |
WH-1.5/30 | 1.5 | 18.5 | 790 | 520 | |
WH-2.0/30 | 2.0 | 22 | 670 | 610 | |
WH-2.35/30 | 2.35 | 25 | 760 | 620 | |
2-WH-3.0/30 | 3.0 | 2*18.5 | 790 | 1150 | |
3-WH-3.6/30 | 3.6 | 3*15 | 700 | 1580 | |
VH-0.17/35 | 0.17 | 35BAR | 2.2 | 660 | 110 |
VH-0.65/35 | 0.65 | 9.0 | 605 | 420 | |
WH-1.1/35 | 1.1 | 15 | 900 | 475 | |
WH-2.0/35 | 2.0 | 22 | 670 | 615 | |
WH-2.2/35 | 2.2 | 25 | 735 | 600 | |
VH-0.3/40 | 0.3 | 40BAR | 5.5 | 500 | 290 |
WH-1.0/40 | 1.0 | 11 | 790 | 470 | |
49SH-2.6/40 | 2.6 | 25 | 625 | 900 | |
49SH-3.0/40 | 3.0 | 30 | 695 | 920 | |
2-49SH-6.0/40 | 6.0 | 2*30 | 695 | 2100 | |
4-WH-4.0/40 | 4.0 | 4*11 | 790 | 2400 | |
6-WH-6.0/40 | 6.0 | 6*11 | 790 | 3600 |
2. Inspection method:
CAGI
3. Inspection standard:
-AISI
-AMS
-ANSI
-ASME
-ASTM
-AGMA
-AGMA
-NEMA
-VDI
-CAGI-NPEUROP
-MS
4. Technical characteristics:
4.1 Automatic pressure unloading system, ensure machine starting without loading.
4.2 With exhaust check valve on outlet.
4.3 Removable type inlet silencing filter, 10 micron precision.
4.4 Normal inertia flywheel, 2 root V belt drive.
4.5 Splashing lubrication to all moving Parts.
4.6 Light alloy pistons, with PTFE.
4.7 Cast iron cylinder head, independent valve seat.
4.8 Automatic hoop valve piston rings, big flow, more action, high efficiency.
4.9 World famous brand rolling bearing, ensure the stable operation unit.
4.10 Enough space between the cylinder and the crankcase design, avoid friction between connecting rod, moving parts and crankcase.
4.11 With Safety Valve Between after-cooling
The quality of our products can keep up with international standard as introduction of foreign technology.
High efficiency,high performance engergy saving,reliability and long lift are the principle characteristics o HENGDA high pressure air compressor.The Free air delivery from 0.15m3/min to 6.0m3/min.HENGDA makes a very wide model of rang of compressor to meet a wide rand of industrial application and requirement , especially for PET BLOWING Industry. Every machine is equipped with starting,unloading solenoid valve,auto condensate drain valve and advanced capacity control to make machine to operate safe and stable.
.
If the equipment fails due to the quality of the machine during one year, we will provide replacement and the repair Free of Charge. after One Year customer must pay for Spare Parts, we will provide long-term technical assistance.
Workers must operate the machines according to the design of the machine. Faygo Machinery will not be responsible for accidents which are caused by improper operation of workers.
