PVC Wood Plastic Composite Decking WPC Machine
- shanghai
- T/T Credit Card
You May Like
-
WPC Wood Plastic Composite WPC Machine Manufacturer / WPC Production Line
-
Hot Sale !High Performance WPC Plastic Wood Panel/ Profile Production Line
-
Recycling Pelletizing Machine Plastic
-
Extruded Polystyrene Xps Foam Insulation Board/panel Machine
-
Lab Extruder Machine Sale
-
pp Multifilament Yarn Machine
Product Details
| Brand Name | Faygo Plast | Place of Origin | Jiangsu, China | |
| Certification | CE&ISO | |||
| Weight | 5 Tons | Dimension(L*W*H) | 26m x 2.5m x 1.8 | |
| Voltage | 380V | Application | Profile | |
| Condition | New | |||
| Screw Design | Double-screw |
Product Description
PVC Wood Plastic Composite Decking WPCMachine
The WPC door machine is used to produce the wpc door,(door width: 600mm, 750mm, 800mm, 900mm, 1000mm, thickness: 25-40mm, hollow or solid)
plastic can be PE or PP or PVC.
A whole extrusion line includes the following units:
1, material screw feeder,
2, conical twin-screw extruder,
3, calibration table,

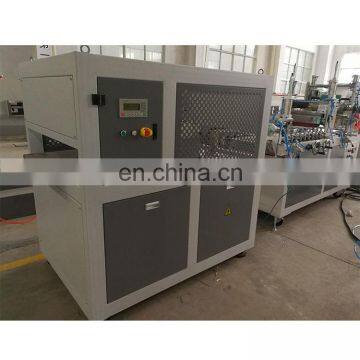

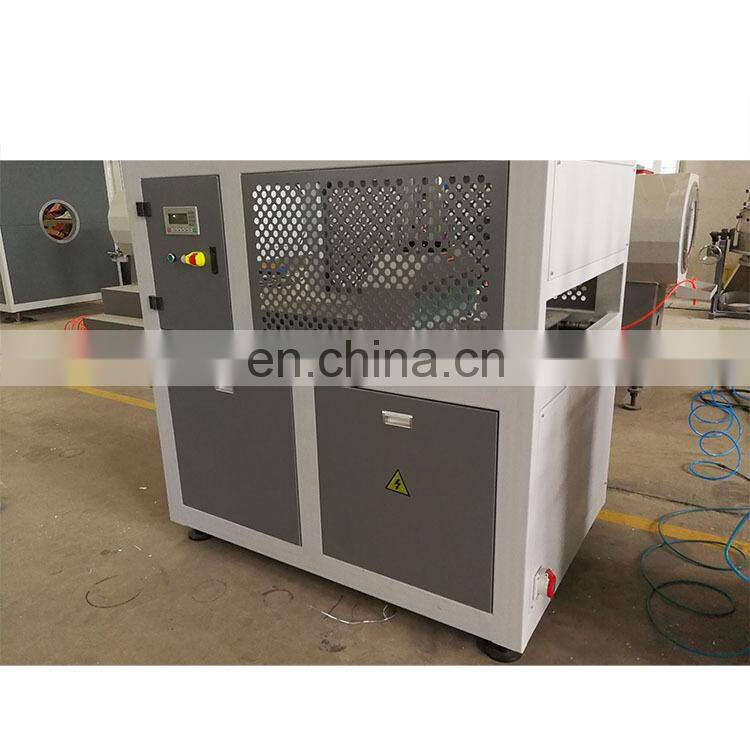

4, haul-off and cutter,

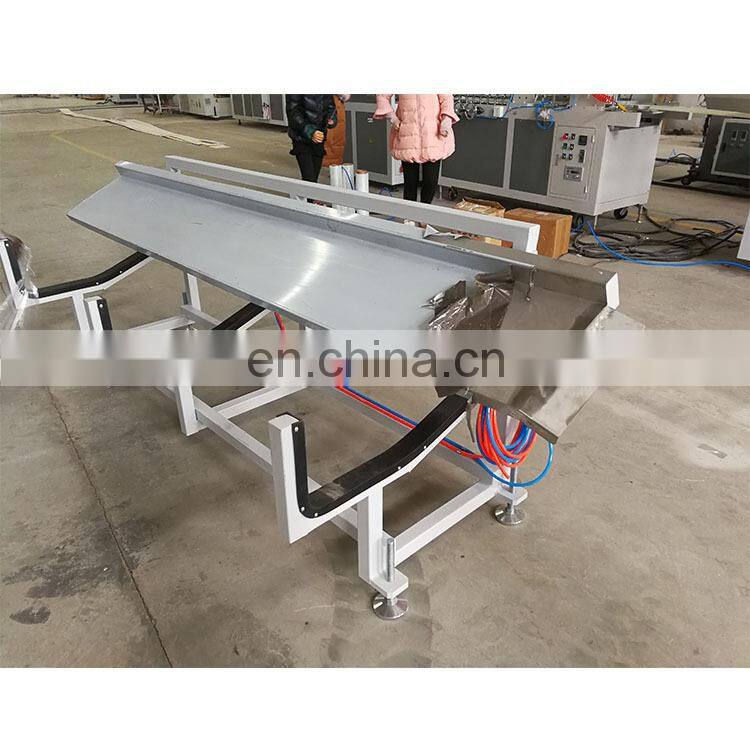

5, stacker.
Auxiliary machine
1, material mixer
2, matrials compounding machine
3, door surface processing mahcine---sanding, embossing, laminating, hot stamping, carving
4, crusher and miller for reusing the water wpc profiles
Properties
1),The screws and barrel are made of 38CrMoAlA, with nitriding processing.
2),reducer: hard gear teeth surface ,
3),main motor and forced feeder: use inverter for speed adjustment,
4),height of calibration table can be adjusted easily from control panel.
5), cutter with alloy saw and dust collector.
6), SIEMENS electric parts
7), free production formula technology for cooperation
8), turn-key project cooperation.

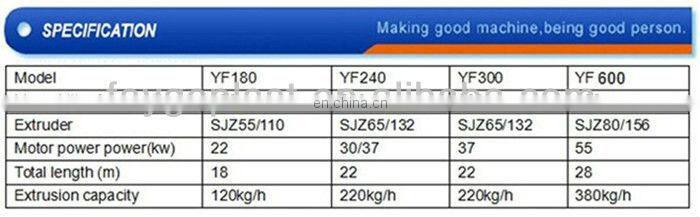

Available extruder models
|
Item |
SJZ-45 |
SJZ-51 |
SJZ-65 |
SJZ-80 |
SJZ-92 |
|
Diameter of screw(mm) |
45/100 |
51/105 |
65/132 |
80/156 |
92/188 |
|
Screw rotation speed(rpm) |
1-37 |
1-32 |
1-34.7 |
1-36.9 |
1-32.9 |
|
Effective length of screw(mm) |
985 |
1070 |
1440 |
1800 |
2500 |
|
Power of main motor (KW) |
15 |
18.5 |
37 |
55 |
90 |
|
Barrel heating power (KW) |
12 |
18 |
24 |
36 |
86.8 |
|
Production capacity(kg/h) |
50 |
50-80 |
80-150 |
180-260 |
300-450 |
|
Center height(mm) |
1000 |
1000 |
1000 |
1000 |
1000 |
|
Net weight(kg) |
2800 |
3200 |
4000 |
5000 |
10000 |
![]() |
![]() ![]() ![]() ![]() ![]() ![]() ![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() ![]() |
