UHMWPE Crane Outrigger Pads/ Heavy Duty Outrigger Pad/ UHMWPE Truck Stabiliser Pad
- Qingdao or Tianjin Port China
- T/T Credit Card
You May Like
-
RV Utility Blocks, Camper Jack Pads,Trailer Levelers
-
Manufacture of Truck Crane Support Plate /Truck Crane Outrigger Pads
-
Outrigger Foot Pad/load Spread Mats/crane Pads
-
Prices of UHMWPE Brake Pads for the Heavy Truck /plastic Crane Stabilizer Pads/Supper Pads for Crane
-
PE Outrigger Pad/ Outrigger Legs Safe Platform for Mobile Cranes/Concrete Pumps
-
1200X1200X100mm UHMW-PE Rigger Uhmwpe Crane Outrigger Pad/ Superior Impact Resistant Green Big Crane UHMWPE Outrigger Pad/ Uhmwp
Product Details
| Brand Name | xinxing | Place of Origin | Shandong, China | |
| Model Number | all size can be suppllied | |||
| Size | can be customized according to your order | Thickness | 10-250mm |
Product Description
UHMWPE crane outrigger pads/ heavy duty outrigger pad/ UHMWPE truck stabiliser pad
100mm thick HDPE sheet plastic board
Custom UHMW Outrigger Pads
polyethylene polymers and engineering plastics plastic engineering
chemical resistant high quality polythylene hdpe sheet
100% HDPE Sheet,POM sheet,PTFE Sheet
4'x8' uv resistant hdpe sheet
10mm hdpe sheet
PE sheet/HDPE sheet/polyethylene sheet
High Density polyethylene sheet HDPE SHEET
Abrasion resistant plate hdpe sheet
plastic manufacturing white hdpe sheet uhmwpe ldpe

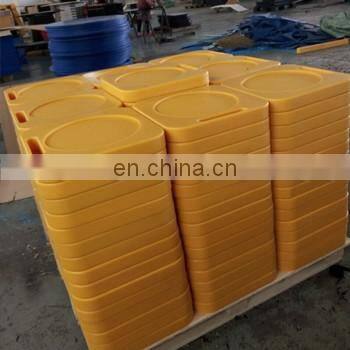

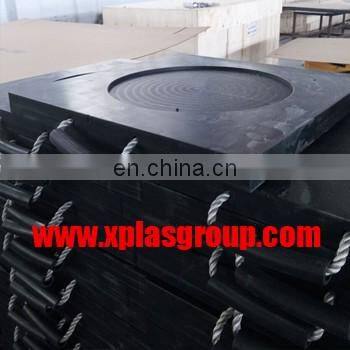

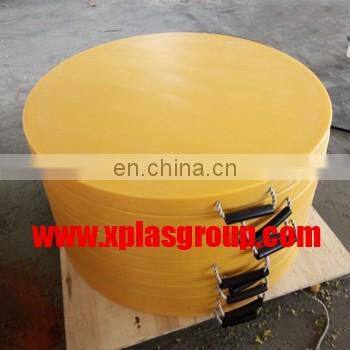

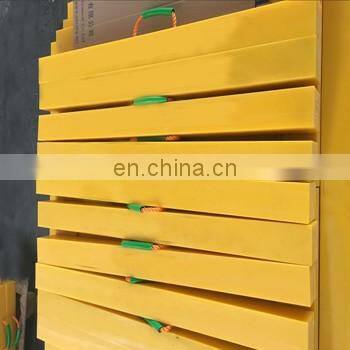

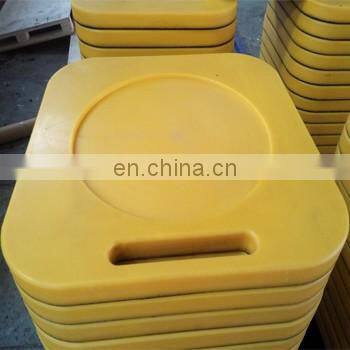

product pictures:
XINXING UHMWPE/HDPE outrigger pads material have the following advantage :
-Apply the Right material for your application
- - good tensile strength
- -good impact intensity
- -super compression strength
- -good breaking elongation
- -15 Percent the weight of steel pads
- -Chemically inert, serviceable from 180° F to - 250° F
- -Corrosion, chemical, wear and moisture resistant.
- -Non-stick surface, easy to clean.
- -Compressive loads up to one million pounds
- -Up to 15,000 pounds per square foot
Dimensions (mm) Square | Weight(Kg) | Vertical Jack Capacity( tonne ) | Crane Capacity ( tonne) |
400X400X40 | 6.3 | 10 | 12 |
500X500X40 | 9.9 | 12 | 15 |
600X600X40 | 14.2 | 20 | 25 |
700X700X40 | 19.4 | 22 | 30 |
800X800X40 | 25.3 | 25 | 30 |
1000X1000X40 | 39.2 | 30 | 35 |
400X400X50 | 8 | 11 | 15 |
500X500X50 | 12.2 | 15 | 18 |
600X600X50 | 18 | 23 | 30 |
800X800X50 | 31.3 | 30 | 35 |
1000X1000X50 | 48 | 40 | 50 |
400X400X60 | 9.5 | 12 | 15 |
500X500X60 | 14.5 | 20 | 25 |
600X600X60 | 21.2 | 25 | 30 |
800X800X60 | 38.4 | 35 | 45 |
1000X1000X60 | 58.5 | 50 | 65 |
1200X1200X60 | 85 | 70 | 80 |
800X800X70 | 44 | 40 | 50 |
1000X1000X70 | 68.5 | 70 | 80 |
800X800X80 | 50.4 | 50 | 60 |
1000X1000X80 | 78 | 80 | 100 |
1200X1200X80 | 113 | 100 | 120 |
1000X1000X100 | 98 | 110 | 140 |
1200X1200X100 | 141 | 140 | 160 |
Dimensions (mm) Square | Weight(Kg) | Vertical Jack Capacity( tonne ) | Crane Capacity ( tonne) |
OD800X50 | 25 | 25 | 30 |
OD900X50 | 30 | 30 | 40 |
OD1000X50 | 38.5 | 35 | 45 |
OD800X60 | 30 | 30 | 35 |
OD900X60 | 37.5 | 35 | 45 |
OD1000X60 | 40 | 40 | 50 |
OD1000X80 | 61.5 | 70 |

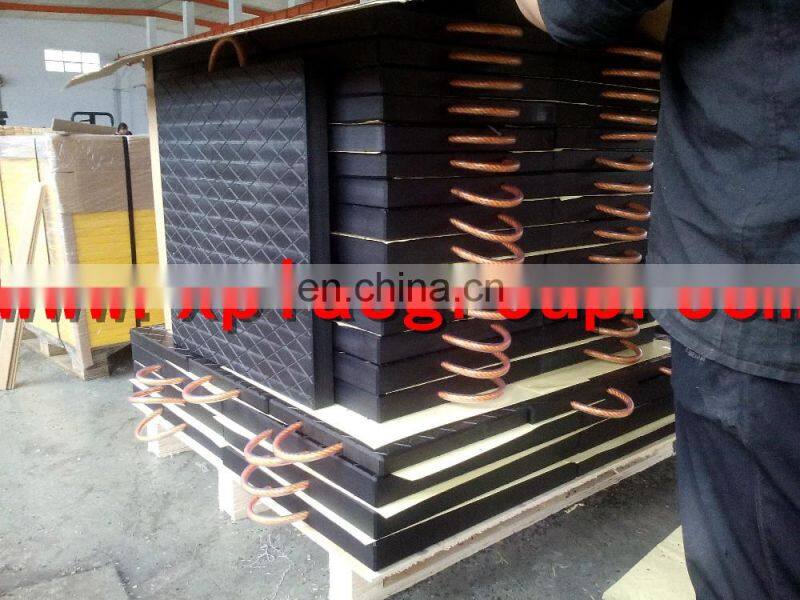

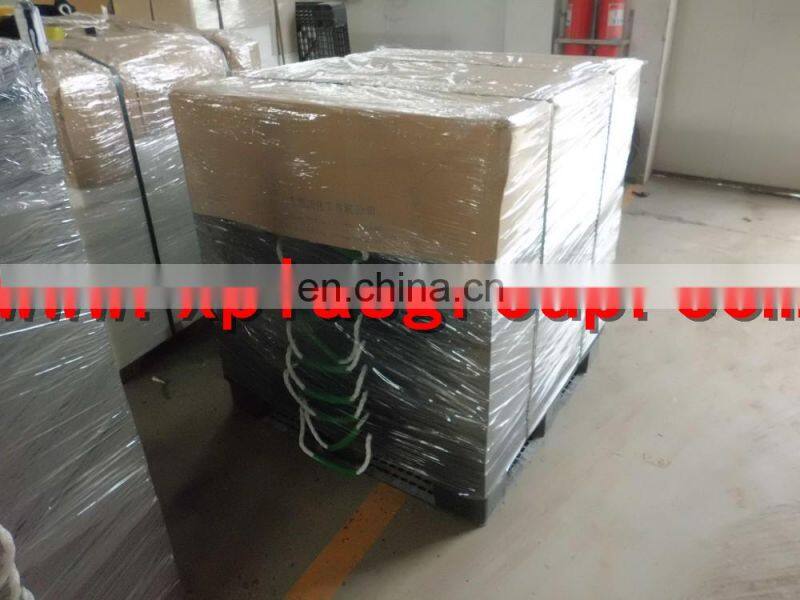

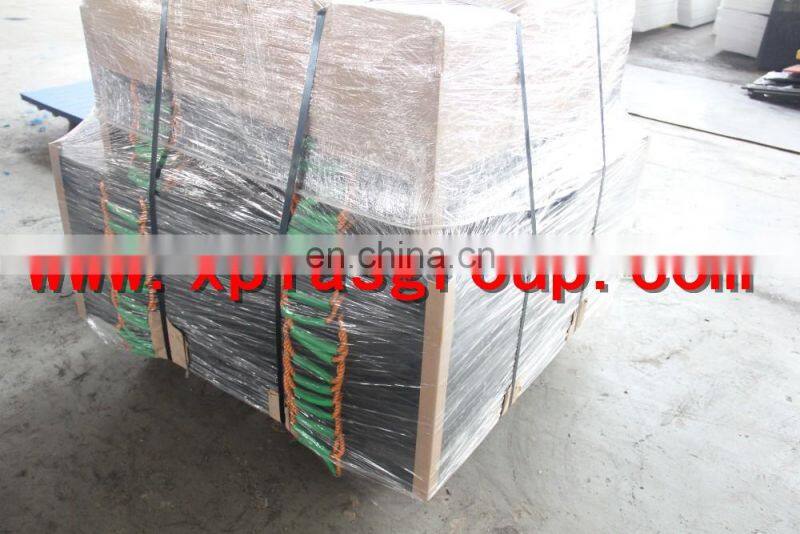

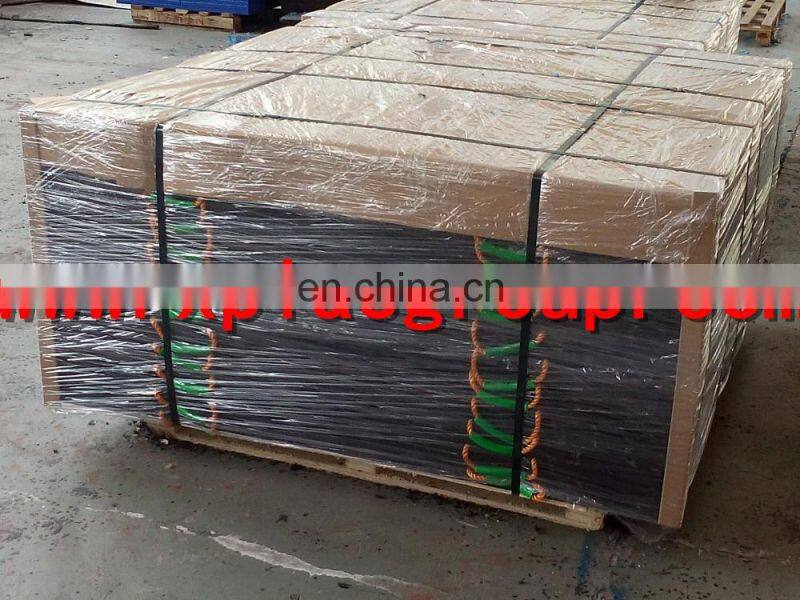

Packaging & Shipping:
certifications:
Any inquiry, contact me, let's talk more!
