Home > Products > Making Machines > HAS VIDEO polymer granules blown film extrusion converted to foils and sleeves in various thickness, sizes, colors
HAS VIDEO polymer granules blown film extrusion converted to foils and sleeves in various thickness, sizes, colors
- Ningbo China
- T/T Credit Card
You May Like
-
BOPS Plastic Blister Vacuum Thermoforming Machine For medicine container ,Egg Tray
-
PE PP Granule Waste Bag And Film Pelletized 2 Stages Noodle Cutting Plastic Recycling Machine
-
New design Manual soap pleat wrapping machine with Sticker Label
-
USD / EURO popular currency money Bill counting machine with fake note detector
-
HDPE LDPE PP Garbage Bag , Film Two-stages Granulation Line
-
USD / EURO Cash Machine Bill Money Currency Counter With UV MG Detection Bill Counter
Product Details
| Brand Name | XIAOHAI | Place of Origin | Zhejiang, China | |
| Model Number | SJ | Certification | ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas | Weight | 1500kg | |
| Dimension(L*W*H) | CAPACITY | Voltage | 220V/380V | |
| Application | Granules | Condition | New | |
| Automatic Grade | Automatic | Plastic Processed | PE | |
| Screw Design | Single-screw |
seaworthy package for mini hdpe film blowing machine
Product Description

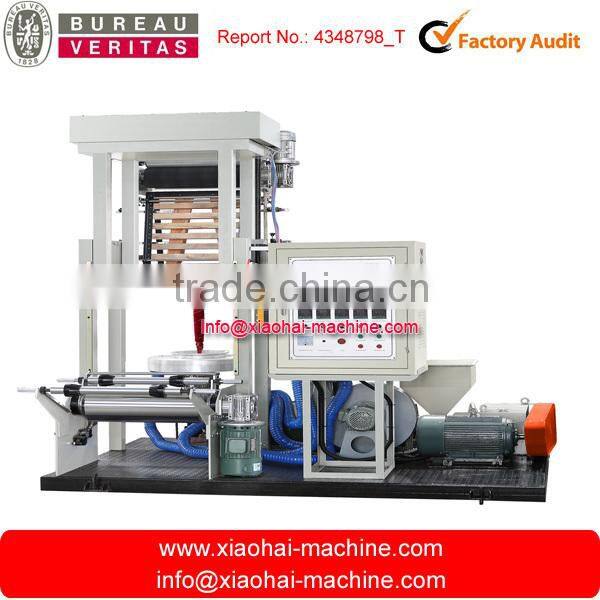

LDPE hdpe film blowing machine
Usage:
1.It is used for blowing the plastic film of low density polyethylene(LDPE), high density polythylene(HDPE)and linear low density polyethylene(LLDPE) etc.
2.The film is widely used for packing bag,such as T-shirt bag,shopping bag,clothing bag,garbage bag and agriculture covering film etc
Specification:
Model No. | SJ-B50 | SJ-B55 | SJ-B60 |
Screw Diameter | 50mm | 55mm | 60mm |
Screw Ratio(L/D) | 28:1 | 28:1 | 28:1 |
Max.Folding Width of Film | 600mm | 800mm | 1000mm |
Single side thickness of Film | 0.008-0.08mm | 0.008-0.08mm | 0.008-0.08mm |
Power of Main Motor | 11KW | 15KW | 18.5KW |
Output | 40kg/h | 50kg/h | 60kg/h |
Total Power | 22Kw | 26Kw | 30Kw |
Weight of Machine | 2000kg | 2300kg | 3000kg |
Dimension(mm) | 5700x1800x3600 | 6000x2000x4000 | 6500x2200x4500 |
Model No. | SJ-B65 | SJ-B80 | SJ-B100 |
Screw Diameter | 65mm | 80mm | 100mm |
Screw Ratio(L/D) | 28:1 | 28:1 | 28:1 |
Max.Folding Width of Film | 1200mm | 1500mm | 2000mm |
Single Side Thickness of Film | 0.008-0.08mm | 0.008-0.08mm | 0.008-0.08mm |
Power of Main Motor | 22KW | 30KW | 45KW |
Output | 70kg/h | 100kg/h | 160kg/h |
Total Power | 42Kw | 56Kw | 88Kw |
Weight of Machine | 3800kg | 4600kg | 60000kg |
Dimension(mm) | 6800x2400x4800 | 7000x2700x5500 | 8000x3200x7600 |
Model No. | SJ-B100 | SJ-B110 | SJ-B120 |
Screw Diameter | 100mm | 110mm | 120mm |
Screw Ratio(L/D) | 28:1 | 28:1 | 28:1 |
Max.Folding Width of Film | 2000mm | 2500mm | 3000mm |
Single Side Thickness of Film | 0.02-0.08mm | 0.02-0.08mm | 0.02-0.08mm |
Power of Main Motor | 55KW | 75KW | 90KW |
Output | 160kg/h | 190kg/h | 220kg/h |
Total Power | 88Kw | 106Kw | 126Kw |
Weight of Machine | 60000kg | 9000kg | 12000kg |
Dimension(mm) | 8000x3200x7600 | 9000x3700x8700 | 1000x4200x9800 |
|
|
|
The machinge body is channel steel frame traction frequency friction,with single rolling friction,lift up and down which is suitable for blowing high-low pressure polyethylene industral fiml and agricultural film.
Specification:
Model | SJ-A45 | SJ-A50 |
Suitable Material | LDPE,HDPE,LLDPE | LDPE,HDPE,LLDPE |
Screw Diameter | 45mm | 50mm |
Film Width(mm) | 100-480 | 300-580 |
Film Thickness (mm)(HD) | 0.009-0.05 | 0.009-0.05 |
Film Thickness (mm)(LD) | 0.02-0.15 | 0.02-0.15 |
Max Extrusion Output(kg/h)(HD) | 40 | 45 |
Max Extrusion Output(kg/h)(LD) | 4550 | 50 |
Screw L/D Length | 28:130:1 | 28:130:1 |
Main Motor(kw) | 7.5 | 11 |
Take-up Motor(kw) | 0.75 | 1.1 |
Outline Dimension(L×W×H)(m) | 5.0×2.0×4.1 | 5.0×2.2×4.5 |
If you need combine to 1 color Flexo printing machine, need add another USD 2500
Company Profile
We are a Big Group specializing in making all kinds of printing and plastic machines, such as plastic bag whole line machines (film blowing machines, flexo and gravure printing machines, lamination machines, all kinds of bag making machines), disposable glove making machines, plastic cup and paper cup making whole line machines, drink straw making whole line machines, label whole line making machines, and paper cutting whole line machines.
