Home > Products > Making Machines > HAS VIDEO High Speed Full Automatic Artistic Bendy Straw Forming Machine
HAS VIDEO High Speed Full Automatic Artistic Bendy Straw Forming Machine
- Ningbo/Shanghai
- T/T Credit Card
You May Like
-
HAS Video Flexo Plate Making Machine RZ Series Rubber Flexographic Printer Letterpress Label Printer Automatic Multicolor CN;ZHE
-
Baby , Adult Dry-nurse Medical Automatic Cotton Swab Packing Machine Into Bag With Drying
-
Automatic Paper Plastic Film PVC PET BOPP Slitting and Rewinding Machine With Flat and Disc Knife and Full Automatic Tension
-
HAS VIDEO Chewing Gum , Milk Tablet Alu Pvc Blister Packing Into Cartoning Machine
-
HAS VIDEO High Speed Full Automatic Plastic Drinking Straw Art Straw Bending Machine
-
HAS VIDEO Fax , Cash , Thermal Paper Jumbo Paper Roll Slitting Cutting Machine
Product Details
| Brand Name | Xiaohai | Place of Origin | Zhejiang, China | |
| Certification | CE | |||
| Warranty | 1 Year | Weight | 1000kg | |
| Dimension(L*W*H) | 1700mm*1300mm*1700mm | Condition | New | |
| Voltage | 380V/220V |
wooden cases.
Product Description

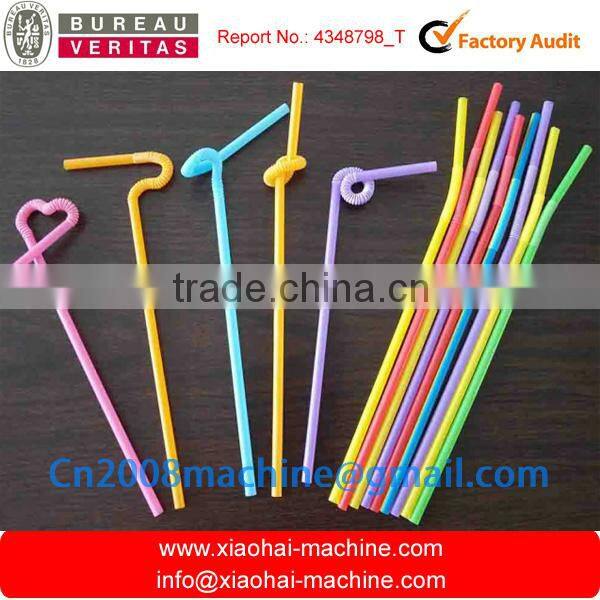

Full automatic artistic drinking straw making machine

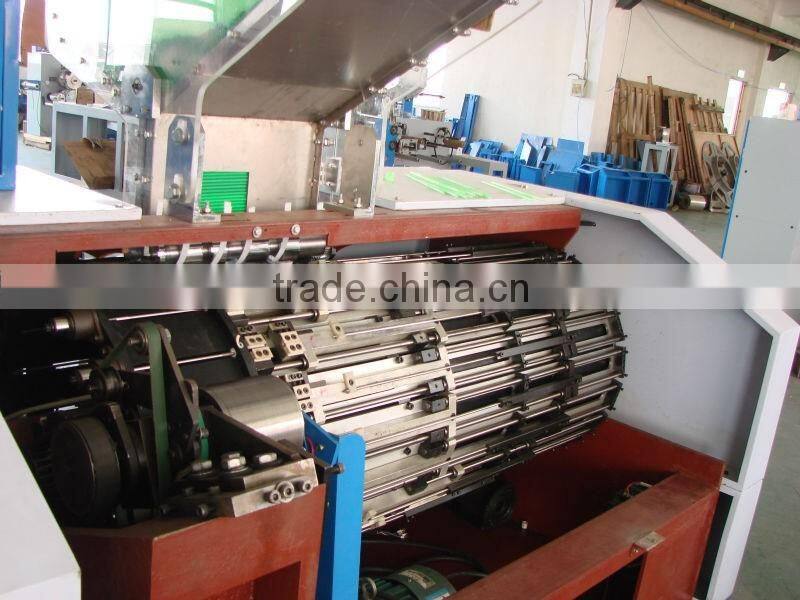

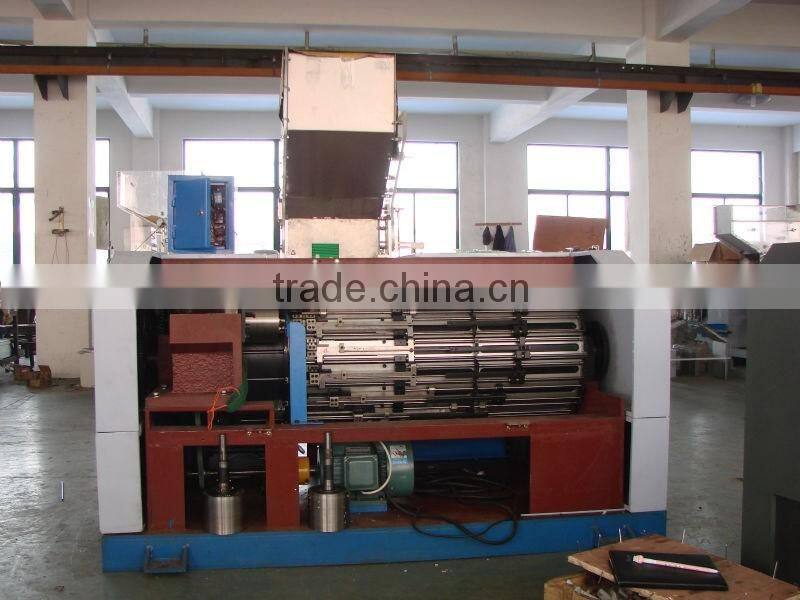

WG-Z Series Automatic artistic straw molding machine is a bendable straw processing equipment. The entire device from input to finished product output fully automaticly, simply add artificial straight tube blank. Polypropylene straight pipe joined by forming on the top of the hopper, relying on two clamping manipulator, a master device back to back wheel. Rotating the main dial back, so that the straw through two rotatable pressure roller indentation formed on the straw. And then by the two robotic be compressed, so that was the indentation folds contraction shape the final product is automatically transported out. Main Circle usually carries 18 straws continuously run, the product has a high-speed production capacity.
Features:
mold can be heated, high production efficiency.
has a production counting function.
automatic counting, the specified batch alarms, easy manual bagging.
with automatic fault stop function.
Motor | 1.5kw inverter ( 380V 3phase) | |
Working speed | 150--200pcs/minute | |
Straw size | Inner diameter | 5.6mm±0.05mm |
Wall thickness(single side) |
0.15~0.17mm | |
Straw length before bending |
320mm~350mm | |
Bending part length |
260mm~290mm | |
Other sizes can be custom made 58teeth~60teeth | ||
Machine size | 1700mm*1300mm*1700mm | |
Machine weight |
1000kg | |
Customer Bought This Machine,Also Have Interesting To Buy Following Machines:
- straight drinking straw extruder , 1 , 2 ,3 4 colors
- single drinking straw packing machine by paper or film
- group drinking straw packing machine by bag
- flexible straw bending machine
- manual long whorl flexible straw ( artistic type drinking straw) making machine
- u shape drinking straw packing machine
- spoon straw making machine
- paper stick making machine
