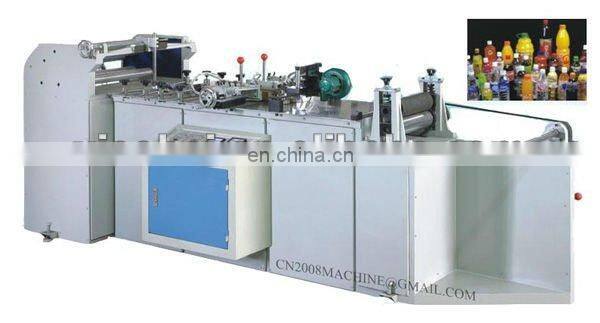

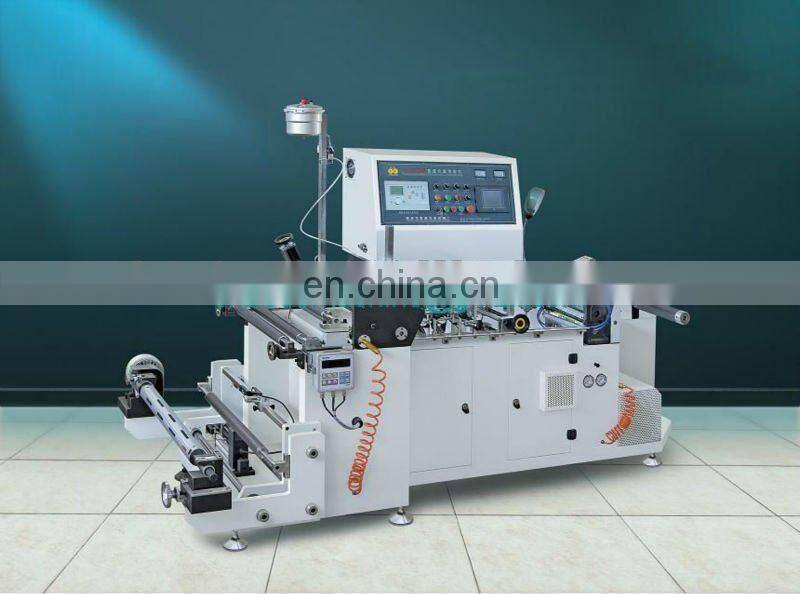

High Speed PVC PET Shrink Sleeve Glue Seaming Machine For Bottles
- NINGBO PORT CHINA
- T/T Credit Card
You May Like
Product Details
| Brand Name | XIAOHAI | Place of Origin | Zhejiang, China | |
| Condition | New |
wooden pallet
Product Description
sleeve gluing machine is specialized in center sealing PVC,PET etc. sheet film to be sleeve in roll
LOW SPEED TYPE 80M/MIN
Usage:
1.This machine is suitable for central-sealing various plastic film T-type bags and stand up bags and it is a kind of ideal equipment for producing packing bags for cold drink, ice cream, biscuits, dry fruit and tea and labels for mineral water, etc.
2.The machine is also with side gusset device. The machine always used together with DF series buttom sealing machine to make the central and buttom sealing bags.
Specification:
|
Model No. |
ZF-250 |
ZF-300 |
|
Max.Width of Material |
250mm |
300mm |
|
Running Speed |
80m/min |
80m/min |
|
Total Power |
2.2Kw |
2.5Kw |
|
Weight of Machine |
500kg |
700kg |
|
Machine Dimension(mm) |
2820x1050x1100 |
2820x1200x1100 |
Remark:
We also have wider width machine,if you want to make special length and width bag,please feel free to contact us,we will provide you details.thanks.
HIGH SPEED TYPE 300 METER/MINUTE
|
Model No.: |
HZF-300 |
|
Sealing width |
280mm |
|
Sealing speed |
300m/min |
|
Power |
380V 50Hz |
|
Total power |
3.5kw |
|
Weight |
1000kg |
|
Measurement |
3180x1450x1550 mm |
The machine is with EPC,with automatic glue system,with PLC,with tension control
Specifications
~To form sleeve from thermo-sensitive sheet
~Using glue for the center seaming
~Used for shrink sleeve label making
APPLICATION OF OUR PVC SHRINK SLEEVE SEAMING MACHINE:
It is mainly for forming the shrink sleeve from shrinkable material. After changed into sleeve, it will be rewinded in roll. The roll type shrink sleeve can be cut into short sleeve or directly used in Labelling&Shrinking Machine.
MAIN SPECIFICATION OF OUR PVC SHRINK SLEEVE SEAMING MACHINE:
Applicable film: Shrinkable PVC, PET, PET-G, etc.
Film thickness: 20-80um
Unwind maximum diameter: 450mm
Unwind width:60-500mm
Central welding accuracy:±0.3mm
Rewind maximum diameter:Φ750mm
Rewind maximum width:250mm
Maximum central sealing speed:300m/min
Tension control range at rewind:5n—50n
Tension accuracy:±3n
Total power:3.5KW
Power supply:380v 50Hz
Machine size(L x W x H):3700×1500×1750mm
Machine weight:about 1 ton
Company Profile
We are a Big Group specializing in making all kinds of printing and plastic machines, such as plastic bag whole line machines (film blowing machines, flexo and gravure printing machines, lamination machines, all kinds of bag making machines), disposable glove making machines, plastic cup and paper cup making whole line machines, drink straw making whole line machines, label whole line making machines, and paper cutting whole line machines.
