Home > Products > Single Stage Type > TEC1-017 Series (12x12mm) Peltier Chip/Peltier Module/Thermoelectric Chip/TEC/Cooler
TEC1-017 Series (12x12mm) Peltier Chip/Peltier Module/Thermoelectric Chip/TEC/Cooler
Negotiable
/ Piece
10 Pieces(Min. Order)
- Shenzhen
- T/T PayPal
You May Like
-
TEC1-017 Series (15x15mm) Peltier Chip/Peltier Module/Thermoelectric Chip/TEC/Cooler
-
TEC1-017 Series (20x20mm) Peltier Chip/Peltier Module/Thermoelectric Chip/TEC/Cooler
-
TEC1-017 Series (23x23mm) Peltier Chip/Peltier Module/Thermoelectric Chip/TEC/Cooler
-
TEC1-023 Series (10x30mm) Peltier Chip/Peltier Module/Thermoelectric Chip/TEC/Cooler
-
TEC1-023 Series (15x20mm) Peltier Chip/Peltier Module/Thermoelectric Chip/TEC/Cooler
-
TEC1-023 Series (30x10mm) Peltier Chip/Peltier Module/Thermoelectric Chip/TEC/Cooler
Product Details
| Brand Name | KJLP | Place of Origin | China | |
| Model Number | TEC1-017xx1212 |
Product Description
Specification/Feature:
Voltage: 2V(MAX)
Electronic Current: 1~4A
Refrigeration Power: 1.8~4.5W
Temperature Difference: ΔT 70°C
Thermopile: 17 P&N
Dimension: 12x12mm
Part NO:
TEC1-017011212
TEC1-017021212
TEC1-017031212
TEC1-017041212

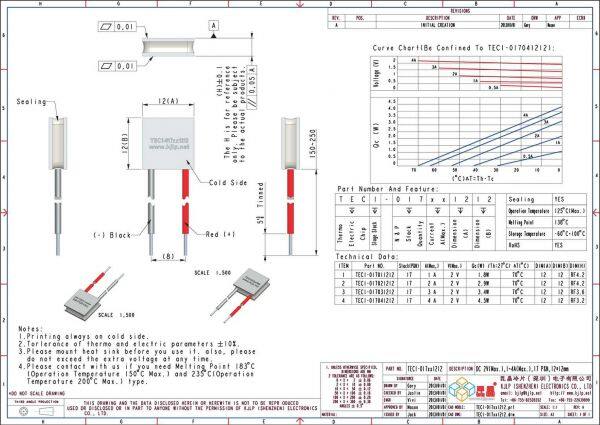

The detailed description of TEC1-017xx1212 refer to The official web site
If you need to inquiry the price, please send the inquiry to our email: kjlp@kjlp.net
