Home > Products > brushed dc motors > O.D90mm 48v 24v 12v dc motor high torque 1500rpm

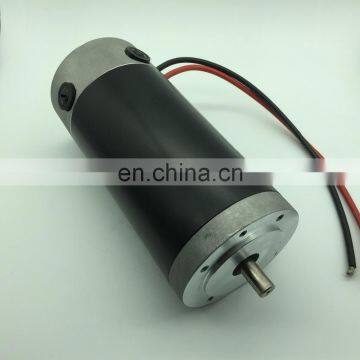

O.D90mm 48v 24v 12v dc motor high torque 1500rpm
- SHANGHAI
- T/T Credit Card
You May Like
-
42ZYT High Torque Brushdc motor for cordless drill 12v 24v
-
76zyt electric DC water pump motor 12v 24v, 50w -300w
-
63ZYT01A brushed electric dc motor 12v 50w option for 24v 40V
-
38mm Sintered NdFeB Magnet Brushed DC Micro Motor 12v 24v, Small Size Big Torque
-
30zyt 30mm Permanent Magnet DC Motor, Ball Bearing, Long Life
-
38ZYN03A Small size HighTorque Dc Brush Motor, Rated 3000rpm,100mNm
Product Details
| Brand Name | Smart Automation | Place of Origin | Jiangsu, China | |
| Model Number | 90zyt | Type | Servo Motor | |
| Certification | CE, ROHS | Torque | 1-2Nm | |
| Usage | Car, Fan, Home Appliance | Construction | Permanent Magnet | |
| Efficiency | IE 1 | Protect Feature | Drip-proof | |
| Voltage(V) | 12~48v | Output Power | 200w-600w | |
| Continuous Current(A) | customed | Speed(RPM) | 1500rpm~3000rpm | |
| Commutation | Brush |
Product Description
Motor technical parameter:
Shaft HRC 36~40 ; NSK ball bearing
Protection class IP 50 Hard ferrite magnet, 4- poles
Insulation class: F, operating temperature range:-40°C~+140°C
CE and ROHS certified
WE SUPPLY CUSTOMED VOLTAGE, SPECIFICATION, SHAFT, MOUNTING AND MOTOR ADDERS.
LONG LIFE, HEAVY DUTY
90ZYT01 SERIES
Rated Voltage/Speed | Rated Torque(N.m) | motor length(mm) | Output(W) |
24V 4000RPM | 1.1 | 155 | 461 |
24V 3000RPM | 1.1 | 155 | 346 |
24V 2000RPM | 1.1 | 155 | 230 |
24V 1500RPM | 1.1 | 155 | 173 |
12V 4000RPM | 1.1 | 155 | 461 |
12V 3000RPM | 1.1 | 155 | 346 |
12V 2000RPM | 1.1 | 155 | 230 |
12V 1500RPM | 1.1 | 155 | 173 |
90ZYT02 SERIES
Rated Voltage/Speed | Rated Torque(N.m) | motor length(mm) | Output(W) |
24V 4000RPM | 1.5 | 199 | 628 |
24V 3000RPM | 1.5 | 199 | 471 |
24V 2000RPM | 1.5 | 199 | 314 |
24V 1500RPM | 1.5 | 199 | 236 |
12V 4000RPM | 1.5 | 199 | 628 |
12V 3000RPM | 1.5 | 199 | 471 |
12V 2000RPM | 1.5 | 199 | 314 |
12V 1500RPM | 1.5 | 199 | 236 |
WE SUPPLY CUSTOMED VOLTAGE, SPECIFICATION, SHAFT, MOUNTING AND MOTOR ADDERS.
