Acrel Medical Isolated Power Supply 7 Pieces Sets

FOB Price

US$ 10000 - 10000 / Piece

1 Piece(Min. Order)

Port Shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
Delivery Detail10 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Acrel		Place of Origin	China
Model Number	7 pieces sets

Product Description

Function

Medical IT system insulation monitoring device and fault location system is suitable for hospital operating room, ICU (CCU) and other important places, and can provide safe, reliable and continuous power distribution for these locations.
Medical IT system insulation monitoring and fault locating products (seven-piece set) include AITR series medical isolation transformer, AIM-M200 medical intelligent insulation monitoring instrument, AKH-0.66P26 current transformer, AIL100-4/AIL100-8 insulation fault locator, ASG100 test signal generator, DR-60-24 power module and AID200 centralized alarm and display instrument.

Product Selection

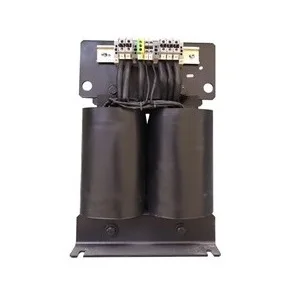

AITR Series Medical Isolation Transformer ● isolating transformers for medical IT systems ● Double insulation treatment, Electrostatic shielding layer ● PT100 temperature sensor ● Rated power: 3.15…10KVA ● CE

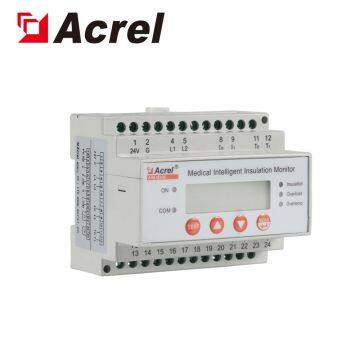

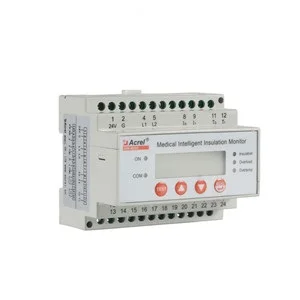

AIM-M200 Medical Intelligent Insulation Monitor

● Function of real-time monitoring and fault alarming of the monitored IT system;
● Relay alarm output, LED alarm indication and other faults indication functions;

● Events logging function;

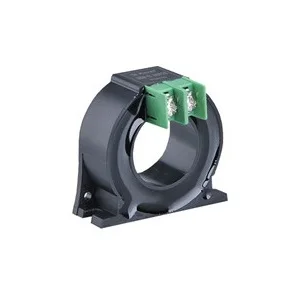

AKH-0.66P26 Current Transformer ● Protective current transformer; ● Support for the Insulation monitor; ● Max current 60A ,the transformation ratio is 2000:1;

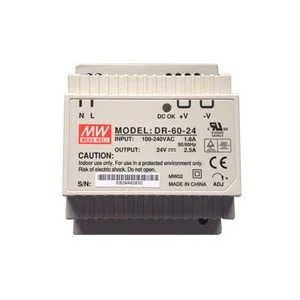

DR-60-24 DC Stabilized Power Supply ● To employ isolated linear transformer with the characteristics of strong capacity of resisting disturbance and small ripple etc; ● AC 220V input, DC 24V output, with max output power of 3 W; ● Used for the DC 24V power supply for AID series centralized alarm and display instrument and other instruments.;

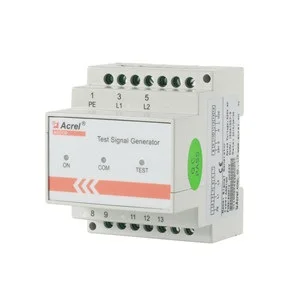

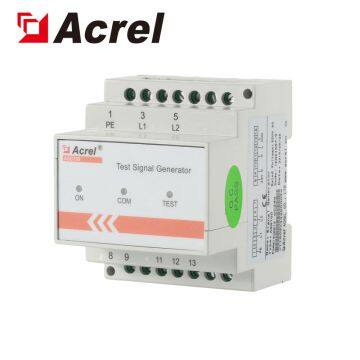

ASG100 test signal generator ● Can Bus communication; ● When the monitored IT system has an insulation fault, it can initiate and generate the fault location signal to the system, and realize fault locating function with the help of fault locator; ● Functions of L1, L2 disconnection detection, and can display the results through the luminous LED;

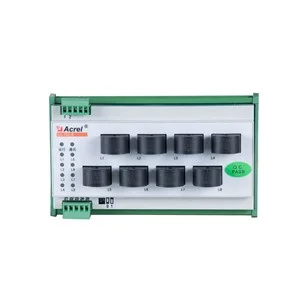

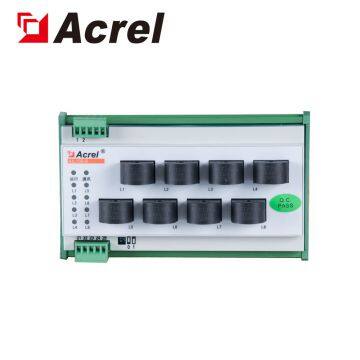

AIL100-4/AIL100-8 Insulation Fault Locator ● CAN bus technology; ● Cooperate with ASG100 test signal generator to realize fault locating function; ● Can locate 4 or 8 circuits; ● LED display show the fault circuit;

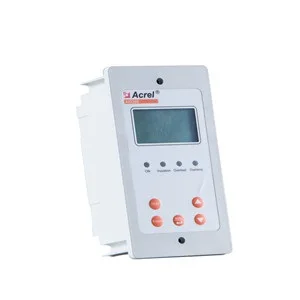

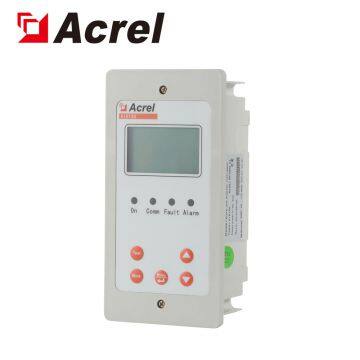

AID200 Concentrated Alarms and Display Instrument ● Wall mounted installation; ● Can monitor 16 IT systems; ● Sound and light alarm with LCD light; ● Manually eliminate the alarm sound; ● Events logging function;

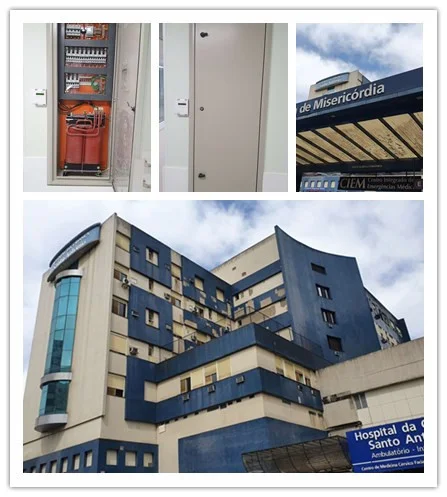

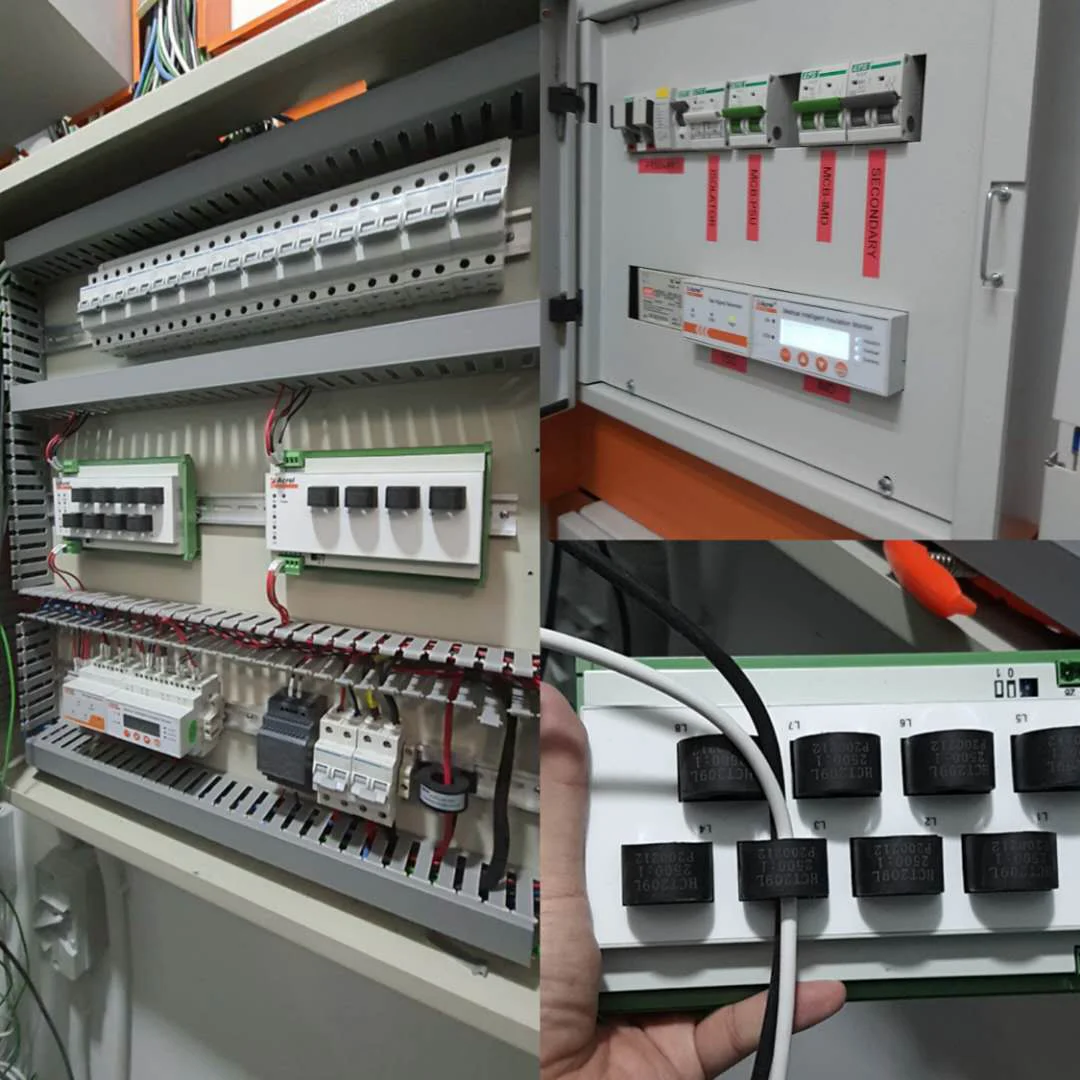

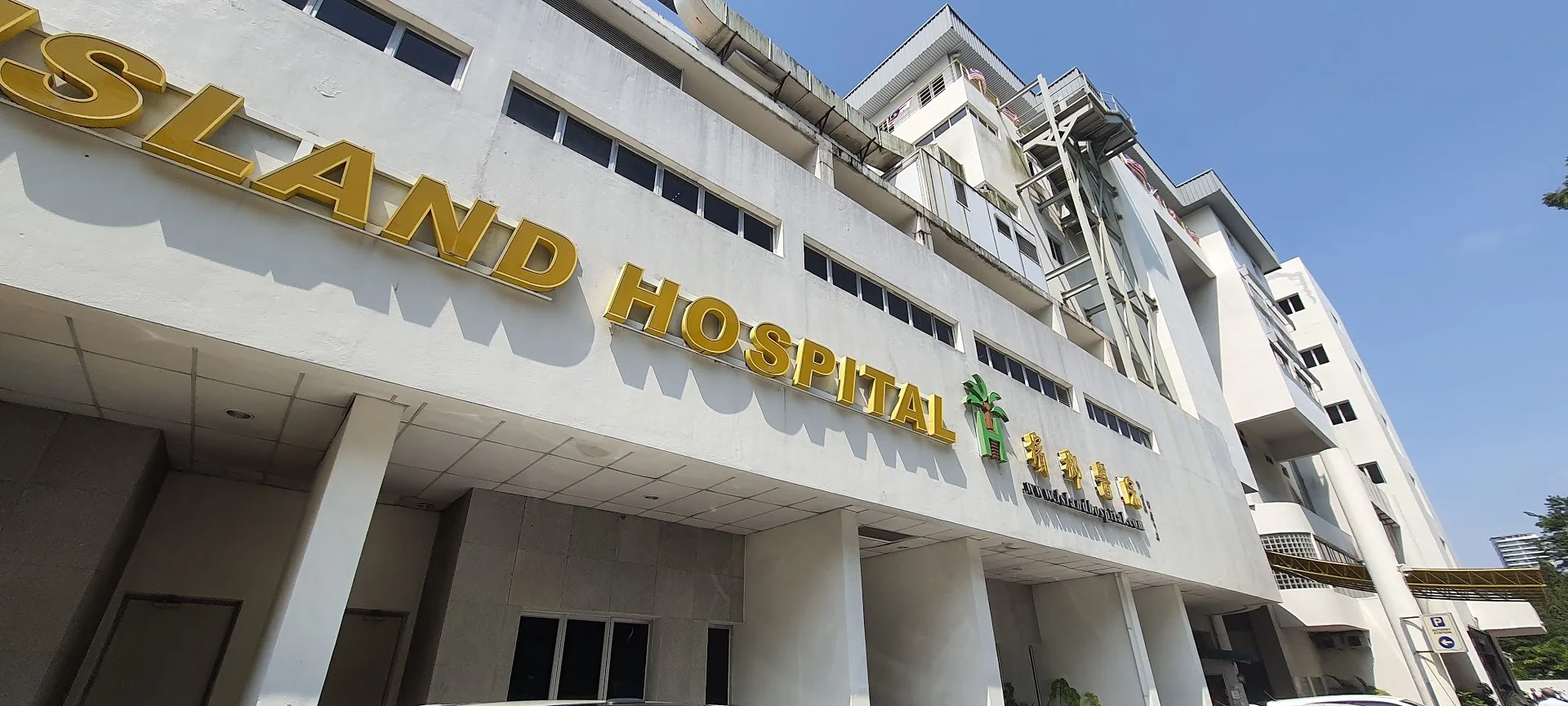

Customer Photos

Certificate

Customers

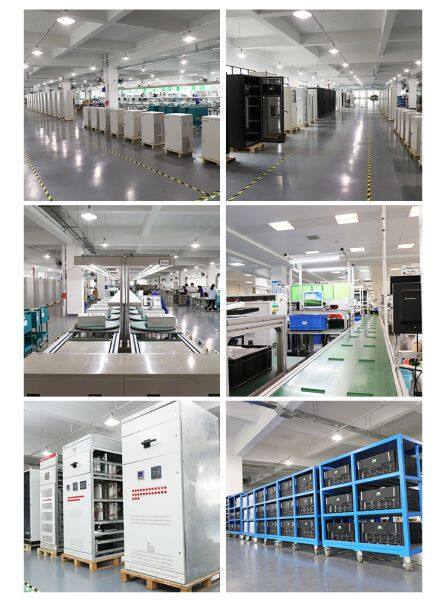

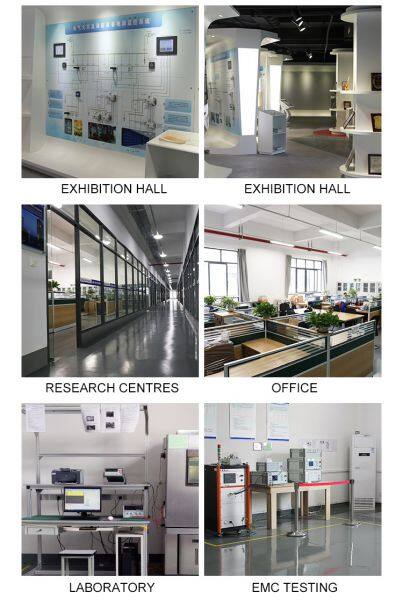

Company Profile
