1/2" 2/2 Way Auto Drain Solenoid Valve
US$ 18 - 500
/ Set
1 Set(Min. Order)
- Ningbo or ShangHai
- T/T Credit Card
You May Like
-
2W200-20 Direct Acting Solenoid Valve 220v ac Water
-
KLTJ-08 1/4" Direct Acting Brass Material Adjustable Steam Valve for Steam Iron
-
Aluminum Material 2/2 Way Direct Acting 2V025-06 Solenoid Valve KLQD Brand
-
Two-position Two-way Electric Auto Drain Solenoid Valve With Timer
-
2P025-08 DC12V Plastic Micro Solenoid Water Valve
-
PU225-08 1 Inch Brass Martial Electric Magnetic Valve
Product Details
| Brand Name | KLQD | Place of Origin | Zhejiang, China | |
| Model Number | KLPT auto drain solenoid valve | Material | Brass |
Product Description
Product Description

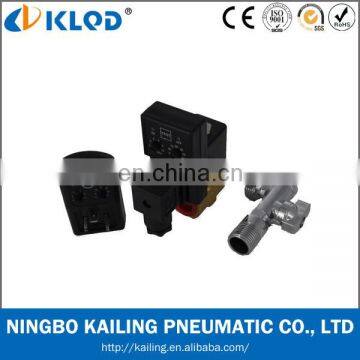

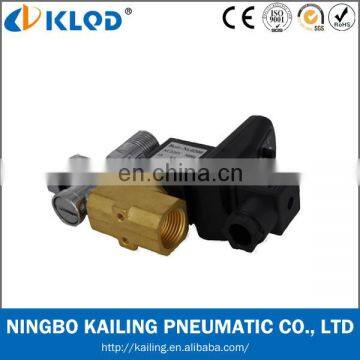

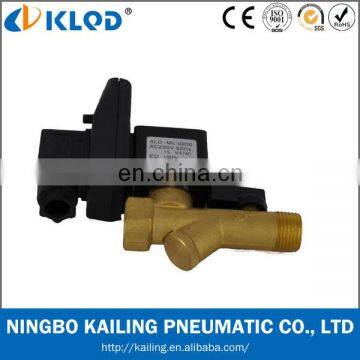

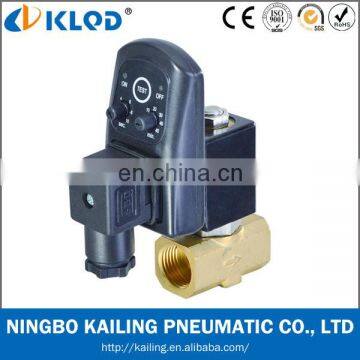

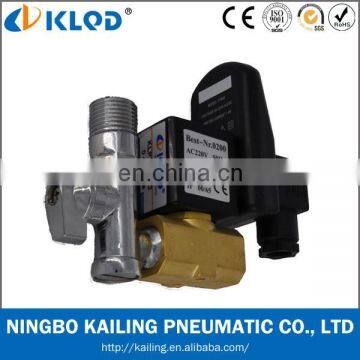

1/2" 2/2 way auto drain solenoid valve
Features :
Easy to install, fully automatic operation
Equipped with a ball valve filter, split with drain valve, an L-shaped structure
Specifications :
Voltage: AC DC
Voltage range: + -10%
Time interval ( OFF ): 0.5--45 minutes (adjustable)
Discharge time ( ON ): 0.5--10 seconds (adjustable)
Manual test button: Yes( micro switch )
The current consumption: Max 4mA
Ambient temperature: -40 °C to 60 °C.
Protection grade: IP65
Shell material: Flame retardant ABS plastic
Electrical connection: DIN43650A
Indicator lamp: LED indicating power on / off
Type: two-way direct-acting valve
Flow aperture: 5 mm
Insulation class: H
In / out port size: 1/2"
Maximum working pressure: 1.6Mpa
Maximum temperature: 90 °C
Valve material: Forging brass
Have stock for more than 100 sets
