Home > Products > Solenoid valve > 2/2 Way Standard Diaphragm Normally Closed 220V Water Solenoid Valve 2W160-15-AC220V

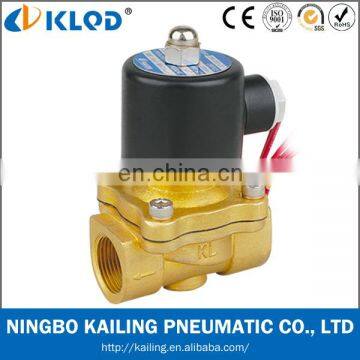

2/2 Way Standard Diaphragm Normally Closed 220V Water Solenoid Valve 2W160-15-AC220V
US$ 8 - 50
/ Set
1 Set(Min. Order)
- Ningbo/ShangHai China
- T/T Credit Card
You May Like
-
1/2" Brass Automatic Water Drain Valve KLPT-12/"-AC220V
-
1/2" Automatic Electronic Timed Air Compressor Drain Tank Valve
-
Automatic Electronic Timed Air Compressor Condensate Auto Drain Valve
-
Brass Material Auto Shut off Water Valve PU220-06
-
China Manufactory 2 Way Brass Gas Air Water Solenoid Valve 24v
-
4V210-08 Airtac Function 12V Mini Solenoid Valve Aluminum Body
Product Details
| Brand Name | KLQD brand 220v water solenoid valve | Place of Origin | Zhejiang, China | |
| Model Number | 2W 220v water solenoid valve | Material | Brass | |
| Application | General | Structure | Diaphragm | |
| Standard or Nonstandard | Standard | Pressure | Medium Pressure | |
| Power | Solenoid | Port Size | 1/2" | |
| Media | Water | Temperature of Media | Medium Temperature |
Product Description
Product Description
2/2 way standard diaphragm normally closed 220V water solenoid valve
Skype: CaoxL090
Media: Gas, Water, Air, Oil (below 20cst), Weak acid & alkali, Vacuum
Function type: Normally Closed (N/C), Normally Open (N/O)
Pressure: Normally Closed 10bar; Normally Open 6bar
Temperature: -5 ÷80℃
Mode of action: Direct acting 220v water solenoid valve
Body material: Brass
Sealing material: NBR,EPDM,Viton
Protection class: IP65
Model | 2W160-15 |
Working Medium | Air,Water,Oil,Gas |
Motion Pattern | Direct Drive Type |
Type | Normal Close Type 220v water solenoid valve |
Aperture of Flow Rate | 16 |
CV Value | 4.8 |
Joint Pipe Bore | G1/2" |
Operation Fluid Viscosity | 20CST Below |
Working-pressure | Air:0~0.7Mpa; Water,Oil:0~0.5Mpa |
Max Pressure Resistance | 1.0MPa |
Operating Temperture | -5~80°C |
Voltage Range | -10%~+10% |
Material of Body | Brass |
Material of Oil Seal | NBR,EPDM or VITON |
