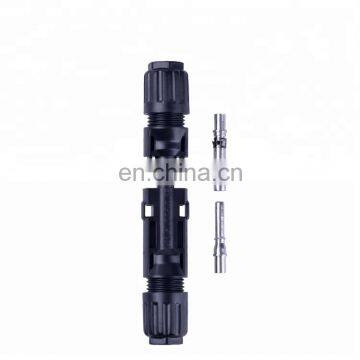

High Quality Slocable Copper IP68 Connector CN40 Solar Connector Pin
US$ 0.5 - 0.8
/ Set
100 Sets(Min. Order)
- Shenzhen
- T/T Credit Card
You May Like
-
TUV CE Certified High Current 50A 1000V DC IP68 Waterproof Solar Connecteurs
-
TUV Approved 30A 50A Solar PV System Solar Connector Leads
-
IP67 IP68 Waterproof DC System Genuine Solar PV Connectors
-
Slocable IP68 Waterproof DC System 4mm 6mm 10mm PV Solar Connector
-
Solar PV Connector for 2.5mm 4mm 6mm 10mm Cable Sunclix Connector
-
CE Approved With High Current 50A for Solar Power System 1to2 2to1 Solar y Branch
Product Details
| Brand Name | Slocable | Place of Origin | Guangdong, China | |
| Model Number | CN40-CM Solar Connector | Type | MCX | |
Product Description
Our Advantages
① Simple on-site processing
② Mating safety
③ Multiple plugging and unplugging cycles
④ Accomodates PV cable with different insulation diameter
⑤ High current carrying capacity
⑥ TUV approved
Company Introduction
Dongguan Slocable Photovoltaic Technology Co., Ltd.
Slocable company is a modern management in combination of design, production and sale system with strength of manufacturing Solar Cable, Solar connectors, Fuse holder and other accessories for many years. Choose us, and you will get all the products from raw material to finished products with TUV approval in the most competitive price.
Product Parameters
Male 2.5~10mm IP68 connector
Order No. | Parts P/N | Cable Spec | ||||
Connector | Terminal | Conductor Size(mm2) | Cable OD(∅Dmm) | |||
CN40-CMMM-14 | CN40-CMMM-H | CN40-CM-MT14 | AWG14(2.5mm2) | ∅4.5~∅8.5 | ||
CN40-CMMM-12 | CN40-CM-MT12 | AWG12(4.0mm2) | ||||
CN40-CMMM-10 | CN40-CM-MT10 | AWG10(6.0mm2) | ||||
CN40-CMMM-8 | CN40-CM-MT8 | AWG8(10.0mm2) | ||||
Female 2.5~10mm IP68 connector
Order No. | Parts P/N | Cable Spec | ||||
Connector | Terminal | Conductor Size(mm2) | Cable OD(∅Dmm) | |||
CN40-CFPM-14 | CN40-CFPM-H | CN40-CM-FT14 | AWG14(2.5mm2) | ∅4.5~∅8.5 | ||
CN40-CFPM-12 | CN40-CM-FT12 | AWG12(4.0mm2) | ||||
CN40-CFPM-10 | CN40-CM-FT10 | AWG10(6.0mm2) | ||||
CN40-CFPM-8 | CN40-CM-FT8 | AWG8(10mm2) | ||||
Technical Data of 2.5~10mm IP68 connector
Rated current | 50A(2.5-10.0mm2) | Degree of protection | IP68 |
Rated voltage | 1000/ 1500V | Flame class | UL94-V0 |
Test voltage | 6000V(50Hz, 1min) | Safety class | Ⅱ |
Overvoltage category | CATⅢ | Suitable cable | OD 4.5-8.5(2.5-10.0mm2) |
Pollution degree | 2 | Insertion force | ≤50N |
Contact resistance of plug connector | <0.5mΩ | Withdrawal force | ≥50N |
Contact material | Copper, tinned | Connecting System | Crimp connection |
Insulation material | PPO | Temperature range | -40℃~+90℃ |
Data Certificatess

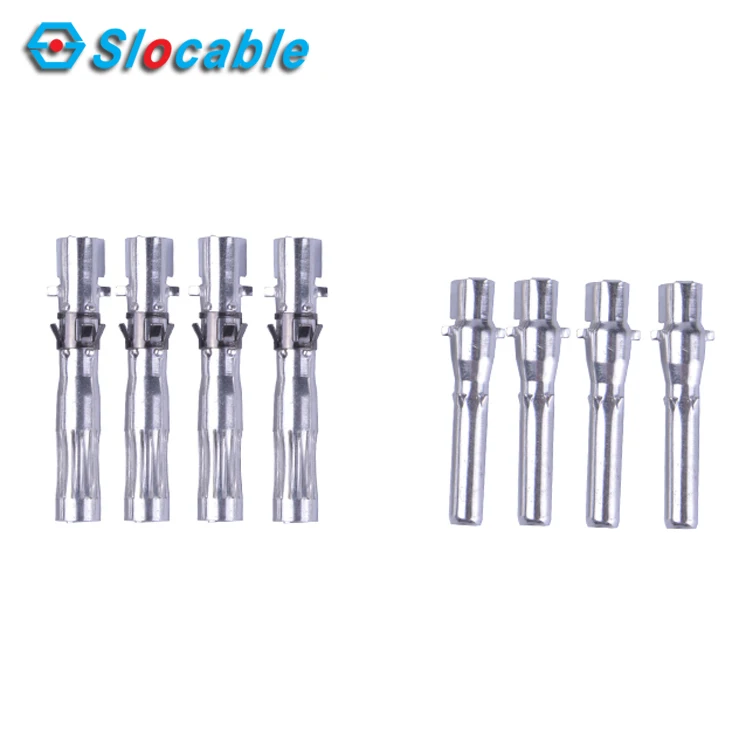

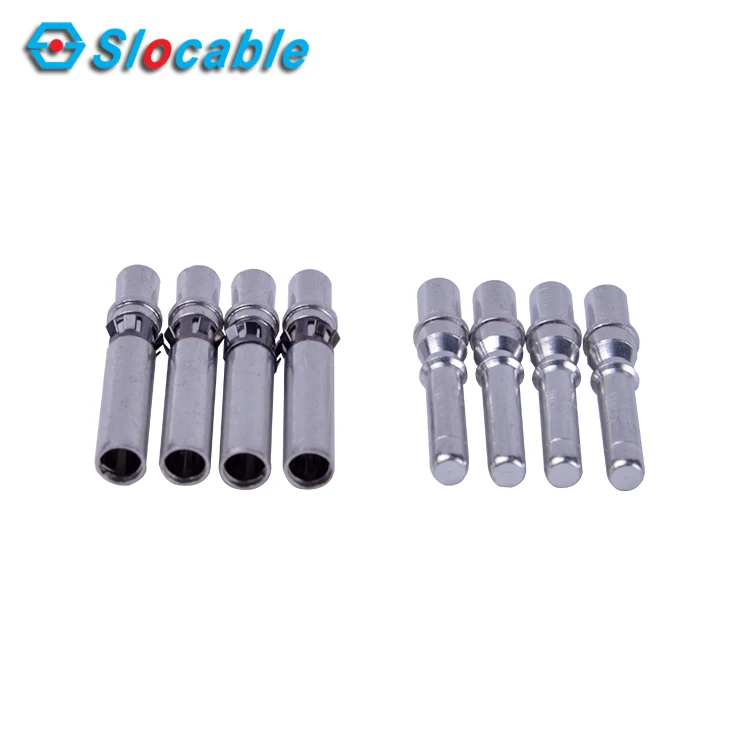

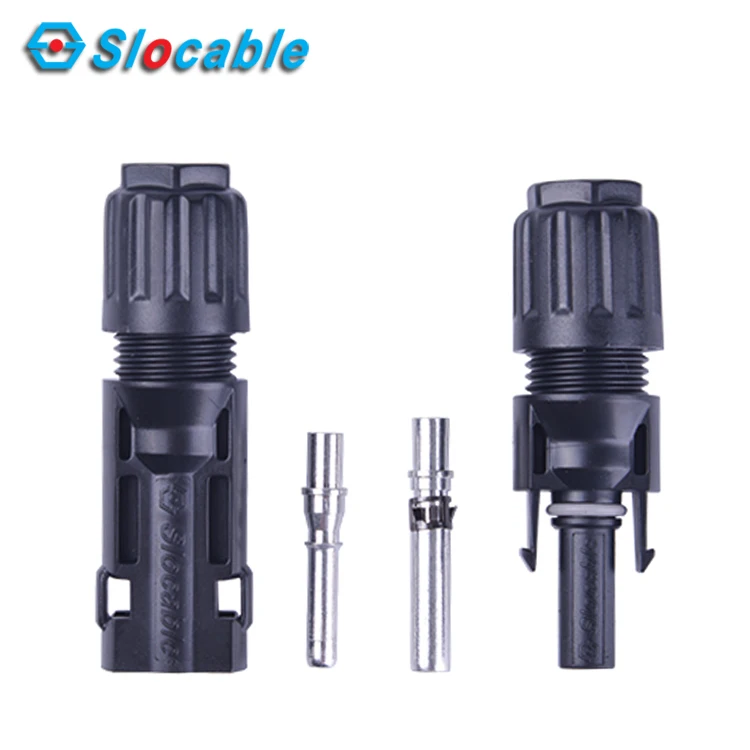

More Pictures
of 2.5~10mm IP68 connector
Product Processing
of 2.5~10mm IP68 connector
Product Packing
Our Exhibition

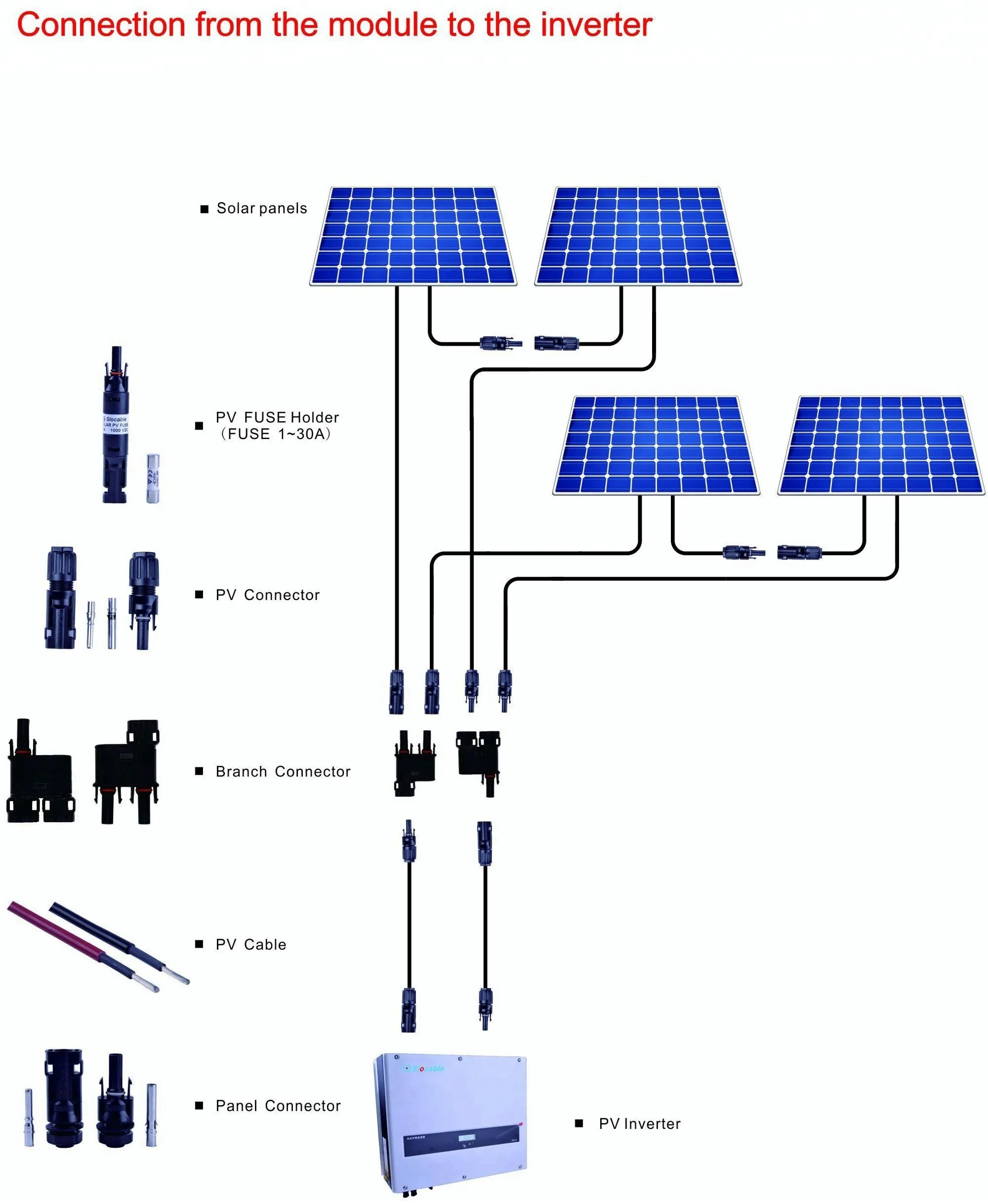

Application Project
