Slocable Solar PV Plug Multi Contact T Connector or Y Type 2in1 Branch Connector
- T/T Credit Card
You May Like
-
IP68 Waterproof 1500v Solar Connector PV DC Solar Panel Connector
-
TUV Approved 2 Pins PV Solar Connector Copper Contact for Solar Energy System
-
Solar PV System Supplied Solar DC 50a Connector
-
1500V High Current Waterproof Connector Solar pv Connector Ip67 IP68
-
TUV Approval PV System Solar Quick Connector
-
TUV Approval PV System Plug for Home Solar Power
Product Details
| Brand Name | Slocable | Place of Origin | Guangdong, China | |
| Model Number | BC40N | Type | MMCX | |
Product Description
Solar PV Plug T Connector or Y Type 2in1 Branch Connector
Detail Information and Advantages of Y Type Connector
|
Technical Data of Y Type Connector
(We also produce 3 to1, 4 to 1, 5 to 1 type branch connectors,
you can consult me directly if necessary)
|
Technical Data of Y Type Connector |
|
|
Rated Current : 50A |
Degree of Protection: IP2*/IP68 |
|
Rated Voltage: 1500V/1000V DC |
Flame Class : UL94-V0 |
|
Test Voltage: 8000V (50Hz,1min) |
Safety Class: II |
|
Overvoltage Category: CATIII |
Temperature Range: -40℃ ~ +85℃ |
|
Contact Resistance: <0.5mΩ |
Insertion Force/Withdrawal Force: ≤50N/≥50N |
|
Contact Material: Copper, Tin Plated |
Insulation Material : PPO |

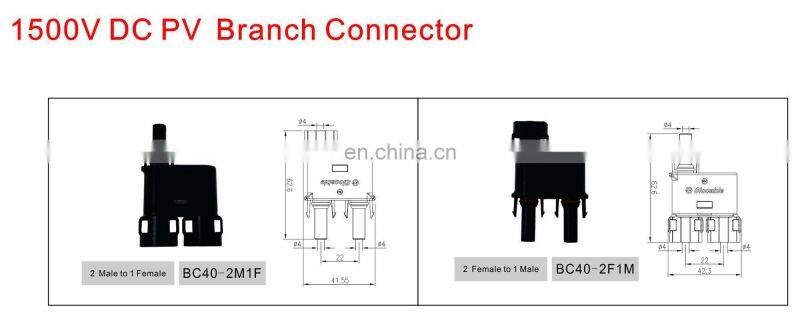

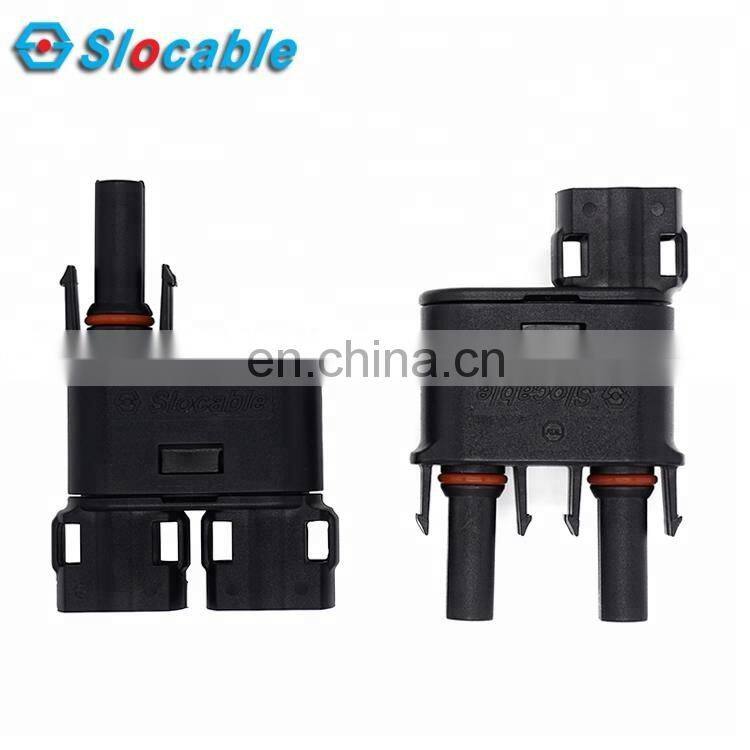

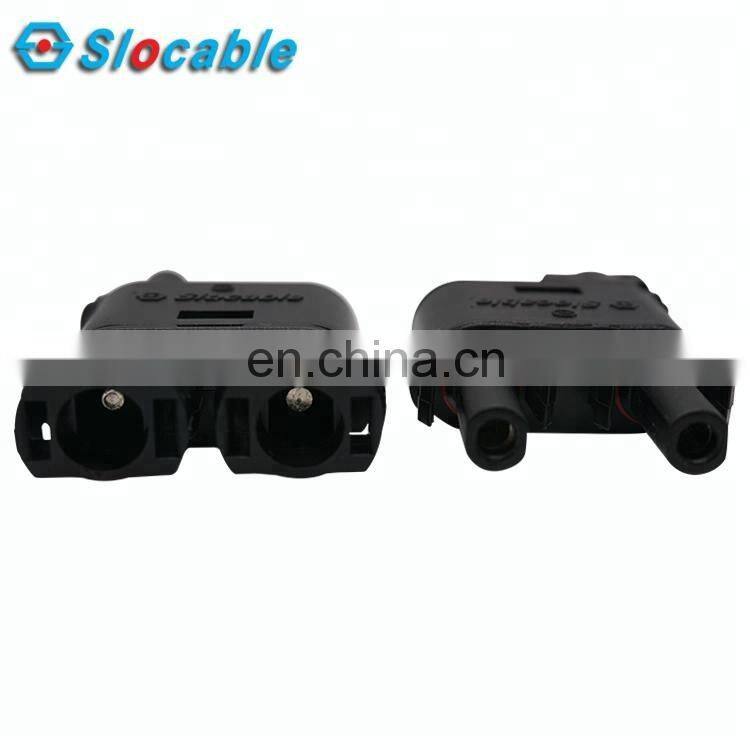

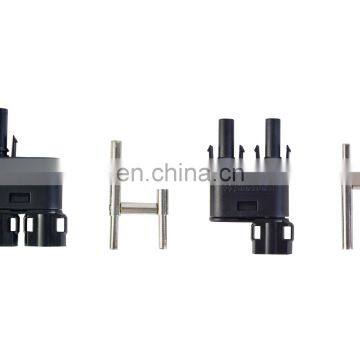

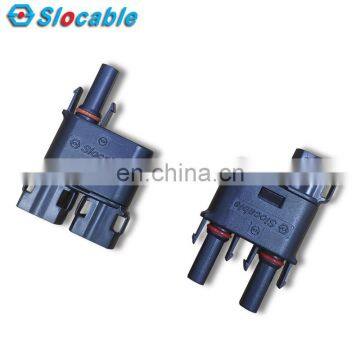

Pictures of Y Type Connector
