Home > Products > Solar PV connector > Solar Cable Panel 1500V 4in 1 DC Branch Connector 2020 New Product
Solar Cable Panel 1500V 4in 1 DC Branch Connector 2020 New Product
- T/T Credit Card
You May Like
-
Slocable 1500V CN40 Green Energy Cablel Connector Price for Solar System
-
1500V Selling Price of Solar Panel Connector for PV System
-
Slocable CN40 Power PPO Cable Solar PV Connector
-
2020 New Product Green Energy 1500V PV Cable Connector
-
High Quality Hotsell 1500V TUV DC 3 to 1 Solar Branch Connector
-
Slocable IP68 Good 2 to 1 Solar PV Branch Connector
Product Details
| Brand Name | Slocable | Place of Origin | Guangdong, China | |
| Model Number | BC60 Branch Connector | Type | MMCX | |
Product Description
Solar Cable Panel 1500V 4in 1 DC Branch Connector 2020 New Product
Detail Information and Advantages of 4to1 Branch Connector
|

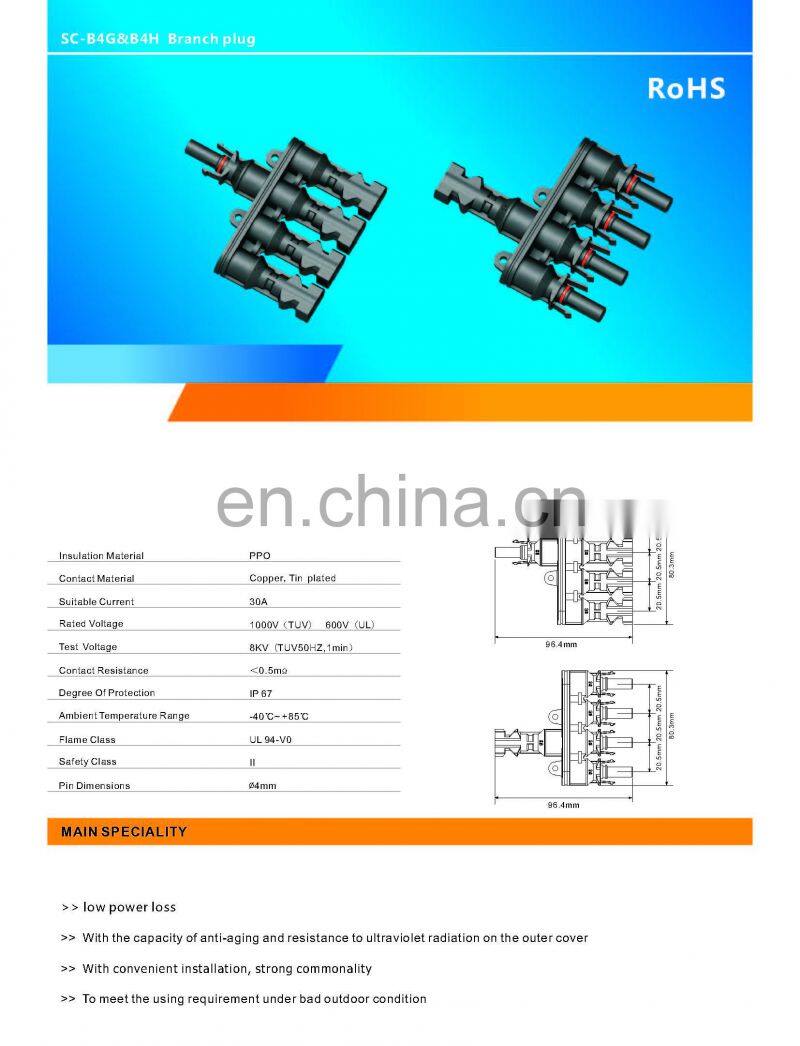

Technical Data of 4to1 Branch Connector

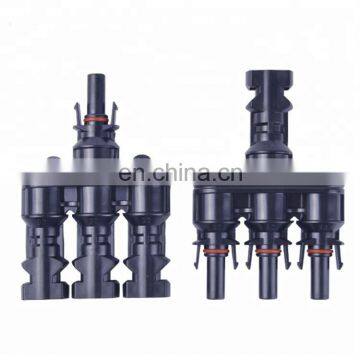

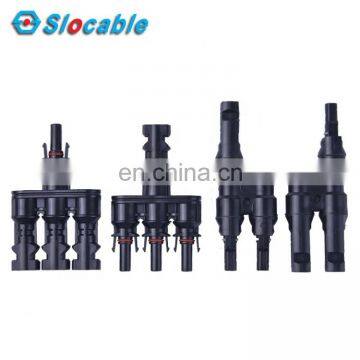

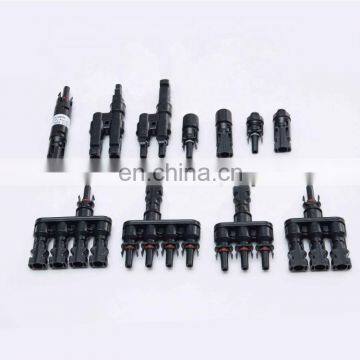

(We also produce 2to1, 3 to 1 and 5 to 1 type branch connectors, you can consult me directly if necessary)
|
Technical Data of 4to1 Branch Connector |
|
|
Rated Current : 30A |
Degree of Protection: IP2*/IP67 |
|
Rated Voltage: 1000V/1500V DC |
Flame Class: UL94-V0 |
|
Test Voltage: 8000V (50Hz,1min) |
Safety Class: II |
|
Overvoltage Category: CATIII |
Temperature Range: -40℃ ~ +85℃ |
|
Contact Resistance: <0.5mΩ |
Insertion Force/Withdrawal Force: ≤50N/≥50N |
|
Contact Material: Copper, Tin Plated |
Insulation Material: PPO |

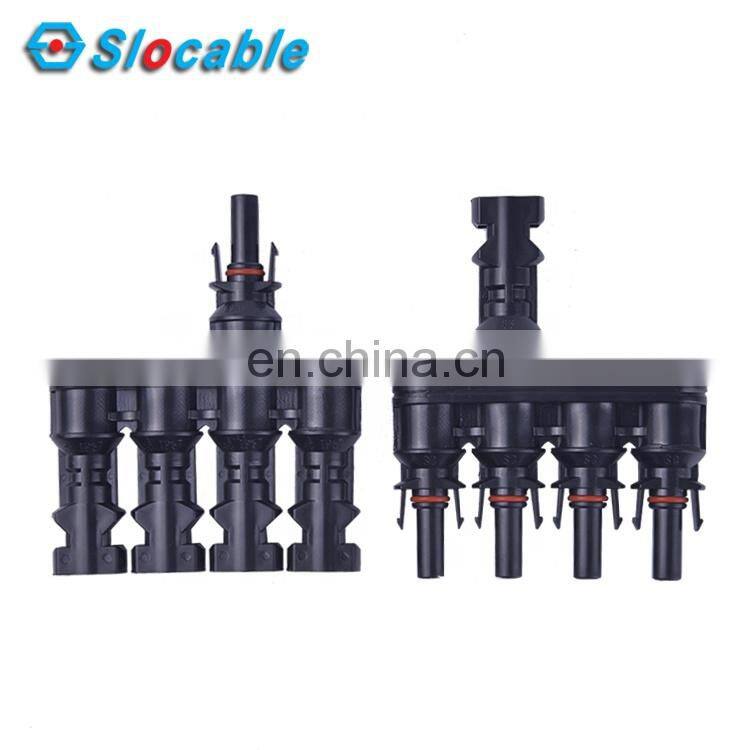

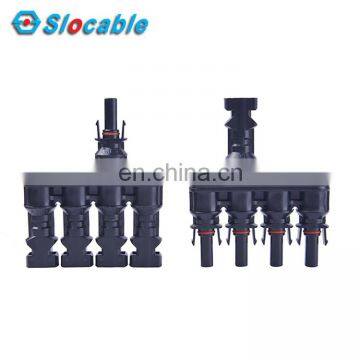

Pictures of 4to1 Branch Connector
Click the following picture to get more Slocbale products:
Certificates
Our Factory
Packing and Shipping
Our Exhibition
.
IF any inquiry, don't hesitate to contact me!
