Home > Products > Solar PV connector > CN40 Connector Solar Panel Plug for Solar Cable
CN40 Connector Solar Panel Plug for Solar Cable
- Shenzhen
- T/T Credit Card
You May Like
-
Slocable TUV SUD CE IEC Hight Waterproof IP67 1500V Branch Kits
-
CN40 Connector Plug in Solar System With Open Copper Terminal
-
Slocable TUV IEC Certificated 4mm2 Lathed Terminal PV Waterproof Connector
-
Slocable Solar PV Plug Multi Contact T Connector or Y Type 2in1 Branch Connector
-
IP68 Waterproof 1500v Solar Connector PV DC Solar Panel Connector
-
TUV Approved 2 Pins PV Solar Connector Copper Contact for Solar Energy System
Product Details
| Brand Name | Slocable | Place of Origin | Guangdong, China | |
| Model Number | CN40-CM Solar Connector | Type | MCX | |
| Application | Power |
Product Description

Solar Connector solar panel plug for solar cable
| Advantage |
|
| Technical Data | |
Contact material: Copper, Tin plated | Overvoltage category: CATⅢ |
Insulation material: PPO | Pollution degree: 2 degree |

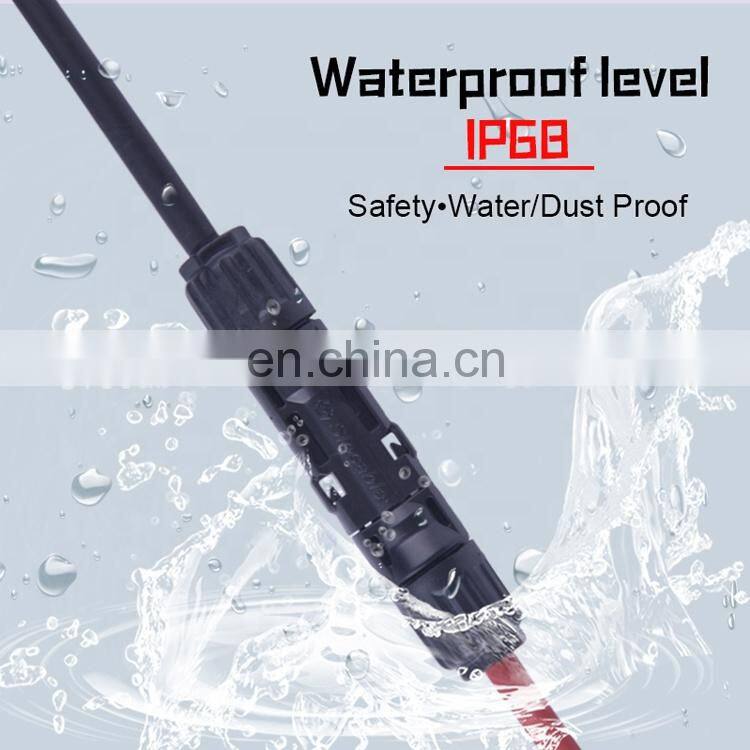

Degree of protection: IP2X/IP68 | Flame class: UL94-V0 |
Rated current: 30A(2.5mm2), 50A(4.0mm2, 6.0mm2) | Insertion force: Max.50N |
Test voltage: 8kV(50Hz, 1min) | Withdralwal force: Min.50N |
Contact resistant: <0.5mΩ | Ambient temperature range: -40℃~+90℃(IEC) |
Safety class: Ⅱclass | Connecting system: Crimp connection |
Suitable cable cross sections: 2.5/4.0/6.0/10.0mm2 14/12/10/8AWG | |

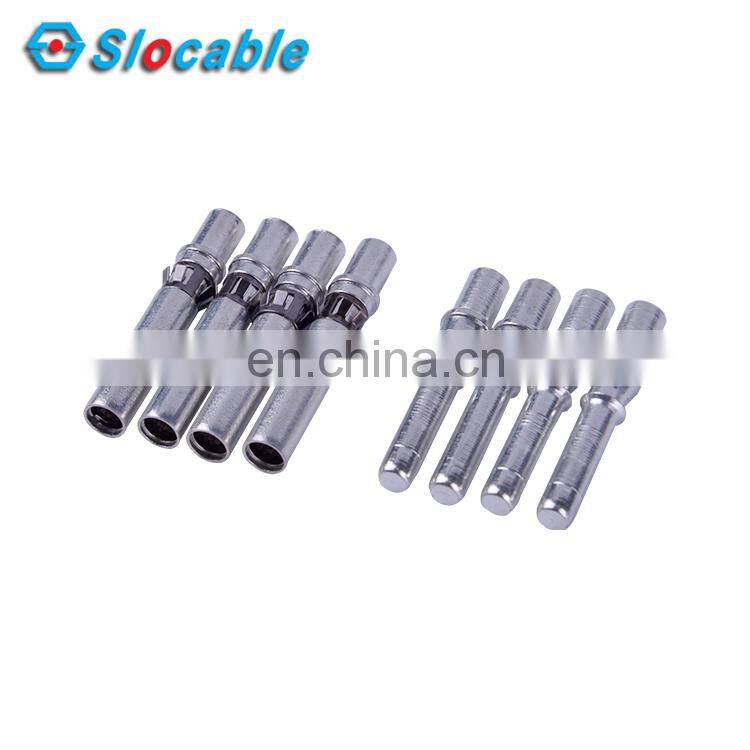

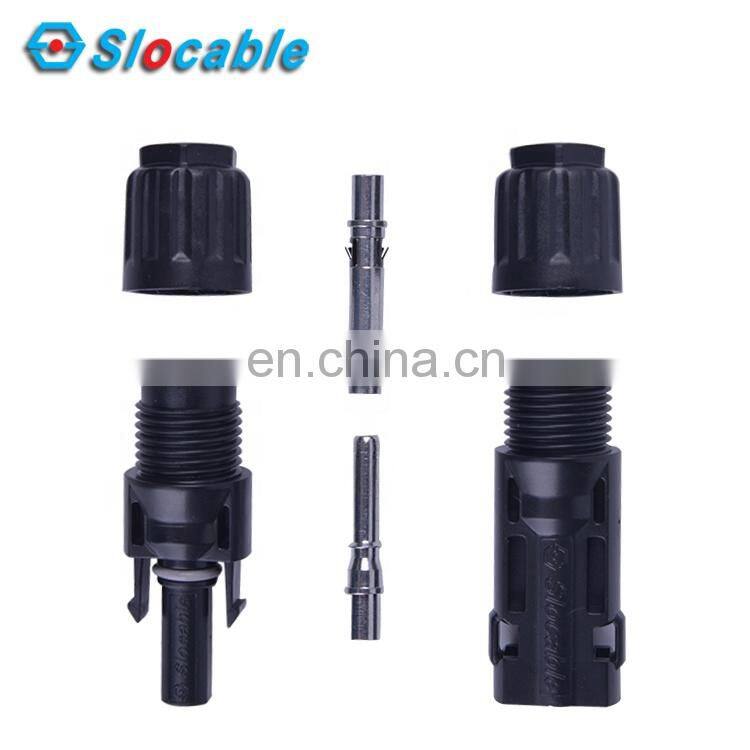

Male of solar connector
| Order No. | Part P/N | Cable Spec | ||
| Connector | Terminal | Conductor Size | Cable OD | |
| CN40-CMMM-14 | CN40-CMMM-H | CN40-CM-MT14 | AWG 14(2.5mm2) | Φ4.5~Φ8.5 |
| CN40-CMMM-12 | CN40-CM-MT12 | AWG12(4.0mm2) | ||
| CN40-CMMM-10 | CN40-CM-MT10 | AWG10(2.5mm2) | ||
Female of solar connector
| Order No. | Part P/N | Cable Spec | ||
| Connector | Terminal | Conductor Size | Cable OD | |
| CN40-CFPM-14 | CN40-CFPM-H | CN40-CM-FT14 | AWG 14(2.5mm2) | Φ4.5~Φ8.5 |
| CN40-CFPM-12 | CN40-CM-FT12 | AWG 14(2.5mm2) | ||
| CN40-CFPM-10 | CN40-CM-FT10 | AWG 14(2.5mm2) | ||

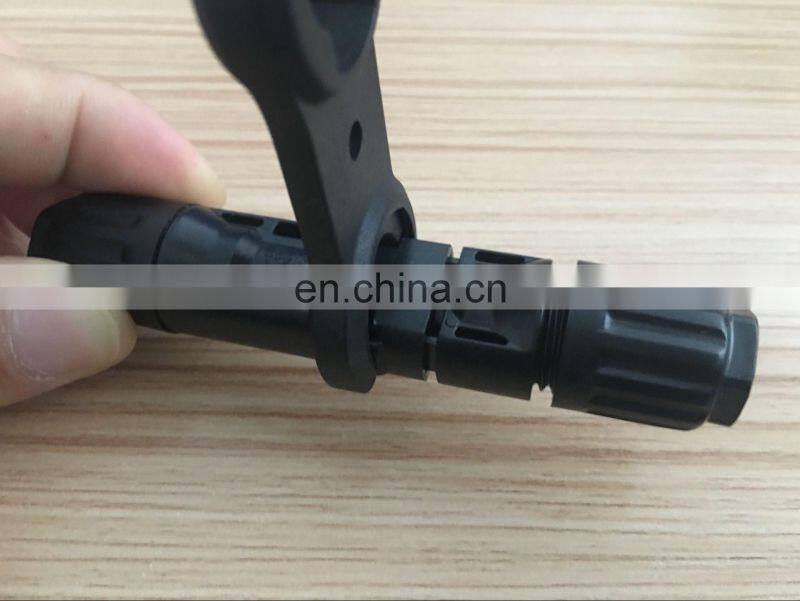

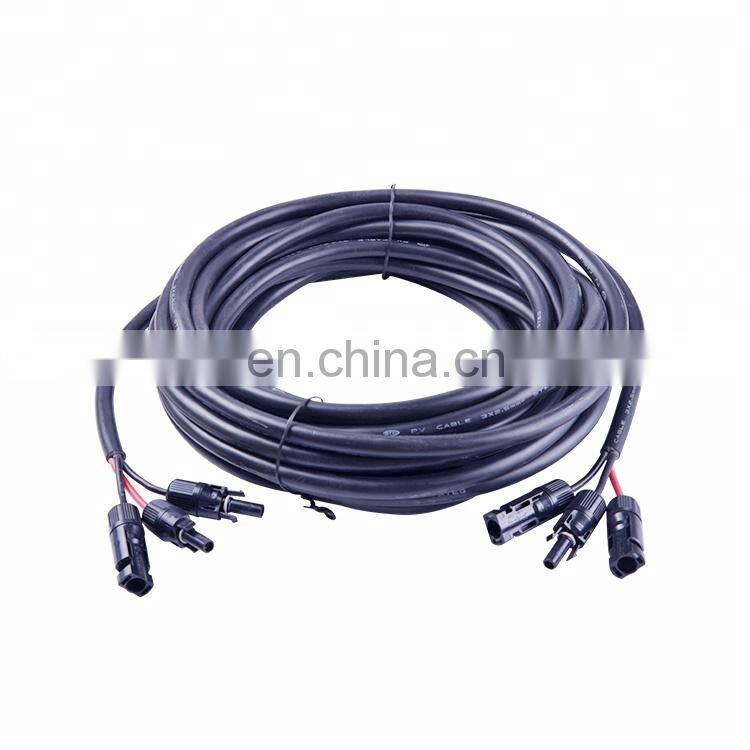

More pictures
Product Processing

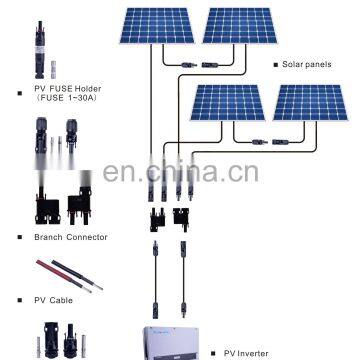

Application Projects
