Slocable 2 PfG 1169 PV1-F Tinned Copper PV Dual Core 4mm2 DC Solar Cable for Solar Project
- Shenzhen
- T/T Credit Card
You May Like
-
Flexible Cable Abrasion Resistant 2 Core Cable Tin Plated Copper Wire 2.5mm
-
1000V 1500V Copper Wire DC Solar Power Cable 10mm for PV System
-
XLPE/XLPO/PVC Insulated High Current 70A DC PV Solar Cable 6.0mm2
-
TUV CE Flexible Power Single Core Cable 4mm2 DC Solar PV Cable
-
Black Red Blue TUV Approved UV Resistant DC Copper Solar PV Cable 4mm2 12awg
-
Durable UV Resistance 2.5mm2 Solar Extension Cable
Product Details
| Brand Name | Slocable | Place of Origin | Guangdong, China | |
| Model Number | CA204B-PE solar cable | Type | High Voltage | |
| Conductor Material | Copper |
Product Description
Slocable 2 PfG 1169 PV1-F Tinned Copper PV Dual Core 4mm2 DC Solar Cable for Solar Project
Product Description

Size | Cross Section | Conductor Structure | Outer Diameter | Max. DC Resistance at 20℃ | Rated Voltage | Rated Current |
| mm² | mm | mm | Ω/km | V DC | A | |
| 2 x 2.5mm² | 2.5mm² | 49 x ∅0.25 | 5.4 X 10.9 | 8.06 | 1000/1500 | 30A |
| 2 x 4.0mm² | 4.0mm² | 56 x ∅0.285 | 6.1 X 12.3 | 4.97 | 1000/1500 | 50A |
| 2 x 6.0mm² | 6.0mm² | 78 x ∅0.30 | 6.4 X 12.9 | 3.52 | 1000/1500 | 70A |
Technical Data
Conductor: 99.7% copper, tinned | UV resistance |
| Insulation material: XLPE(XLPO) | High voltage and High current |
| Double walls insulation | Temperature range: -40°C ~ +85°C |
| Halogen-free material | Color: Black |
| Flame test according to: DIN EN 50265-2-1 UL 1571(VW-1) | Smallest permissible bending radius: 5 x D |
Advantages of Product
- Dual wall insulation,Electron beam cross-linked.
- Resistance to UV,water,ozone,fluids,salt,general weathering.
- Halogen free,flame,retardant,low toxicity.
- Flexibility and stripping performance.
- TUV approved.
- High current carrying capacity.
- Resistance to abrasion.

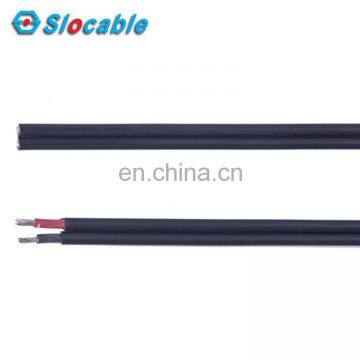

Product Photos
Company Information
Frequently Asked Question
Q1: What is your company's Main Products ? You are the Manufacturer or the trader ?
Solar Cables, Solar Connectors, PV Fuse Holder,Circuit breakers and other
solar relative products.We're the Manufacturer with more than 11 years experience.
1) All raw material we selected the high quality one.
2) Professional & Skilful workers care every details in handling the producing.
3) Quality Control Department specially responsible for quality checking in each process.
Q4: Do you provide OEM Project Service ?
OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects.
What's more, our R&D team will give you the professional suggestions.
Q5: How Could I get the Sample?
We are honored to offer you samples,Samples is free provided,but need pay the courier freight.
If you have a courier account, you can send your courier to collect samples.
Q6: How long is the Delivery Time?
1) For Sample: 1-3 Days ;
2) For small Orders: 3-10 Days;
3) For mass Orders: 10-18 Days.
