TUV 2PfG 1169 PV1-F 4mm2 Electric Solar pv Cable Wire Power Cable
- T/T Credit Card
You May Like
-
TUV 1500VAC DC UV Resistance Double Insulation PV Solar Cable 6mm
-
Favorable Price XPLE Insulation DC Power Twin Core Solar Cable 6mm2
-
Slocable High Quality 1000V 1500V Twin Core Solar PV Cable 4mm for Power Area
-
Slocable TUV CE ISO Sunlight Resistant Copper Armoured Wire Solar PV 1x10mm2 Cable
-
Slocable High Voltage UV Resistant DC PV 6mm2 Single Core Armored Wire 10awg Solar Cable
-
High Carrying Current XLPE Insulated DC 4mm Solar Cable for PV System
Product Details
| Brand Name | Slocable | Place of Origin | Guangdong, China | |
| Model Number | CA104B-PE solar cable | Type | High Voltage | |
| Insulation Material | XLPE | |||
| Jacket | PE | Conductor Material | Copper |
Product Description
TUV 2PfG 1169 PV1-F 4mm2 electric solar pv cable wire power cable
Product drawing
Technical Data
| Technical Data | |
Copper wire : 99.7% copper,tinned | UV resistant |
| Insulation material : XLPE(XLPO) | High voltage and High current |
| Double walls insulated | Temperature range : -40°C+90°C |
| Halogen-free material | Color : Black / Red / Blue |
Flame test according to : DIN EN 50265-2-1 / UL 1571(VW-1) | Smallest permissible Bending Radius : 5*D |

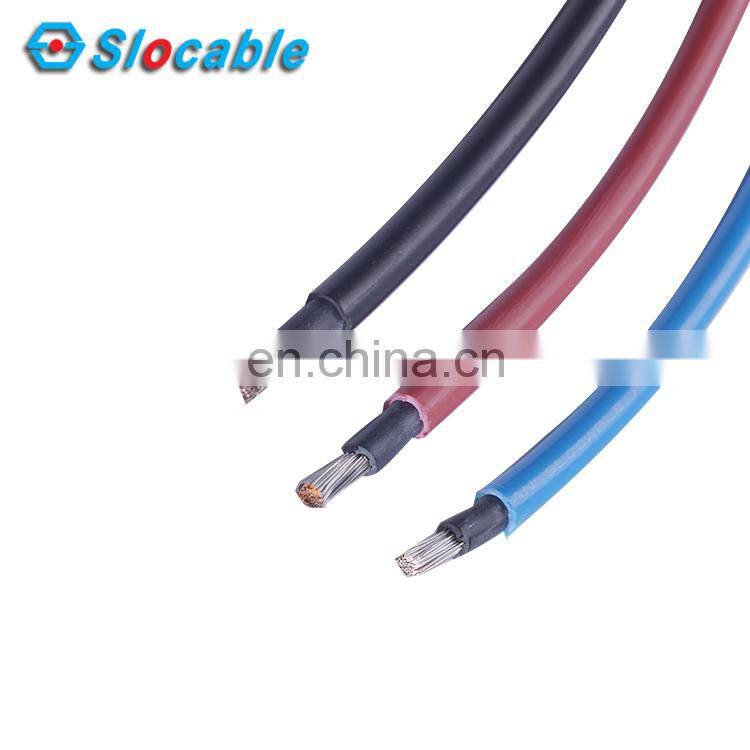

Product picture
Product description
| Size | Cross Section | Connductor Structure | Outer Diameter | Max.DC.Resistance (20°C) | Rated voltage | Rated Current |
| mm2 | mm | mm | Ω/Km | V | A | |
| 1*2.5mm2 | 2.5mm2 | 49*Ø0.25 | 5.4 | 5.4 | 1000/1500 | 30 |
| 1*4mm2 | 4mm2 | 56*Ø0.285 | 6.1 | 4.97 | 1000/1500 | 50 |
| 1*6mm2 | 6mm2 | 78*Ø0.30 | 6.4 | 3.52 | 1000/1500 | 70 |
| 1*10mm2 | 10mm2 | 74*Ø0.40 | 7.3 | 2.12 | 1000/1500 | 95 |
Product advantage
(1) Dual wall insulation,Electron beam cross-linked.
(2) Resistance to UV,water,ozone,fluids,salt,general weathering.
(2) Halogen free,flame,retardant,low toxicity.
(3) Flexibility and stripping performance.
(4) TUV approved.
(5) High current carrying capacity.
(6) Resistance to abrasion.

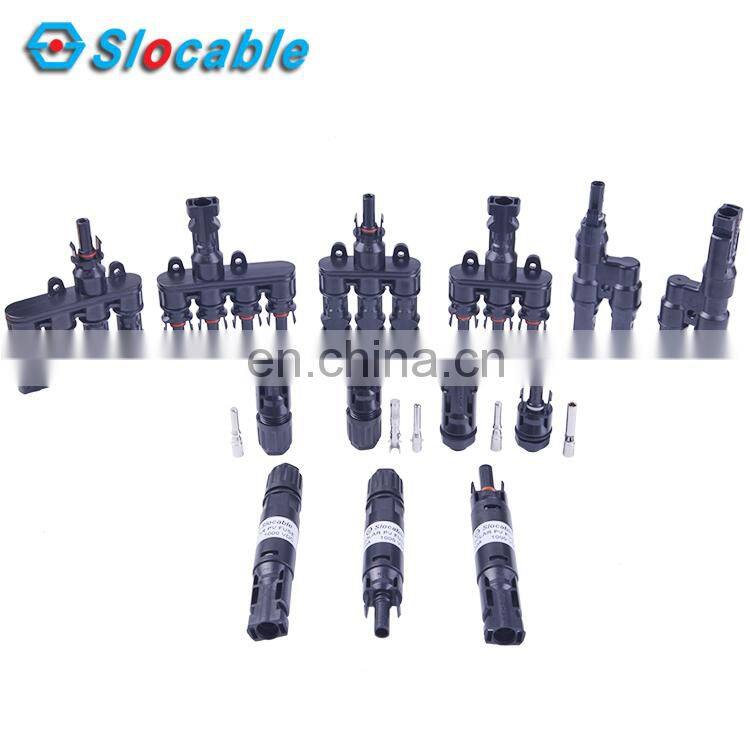

More products
Company and Factory
Our certification
Our exhibition

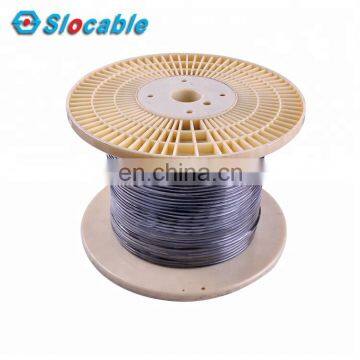

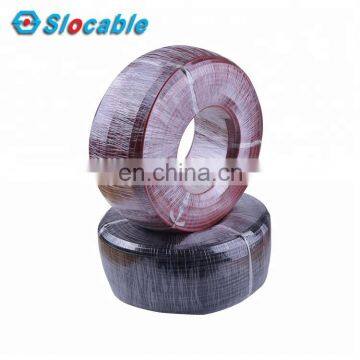

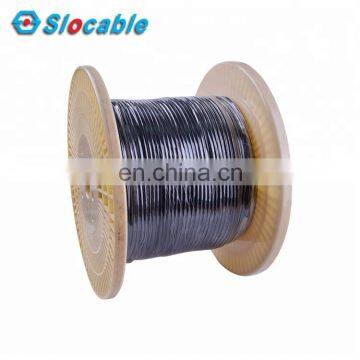

Packing & Shipping

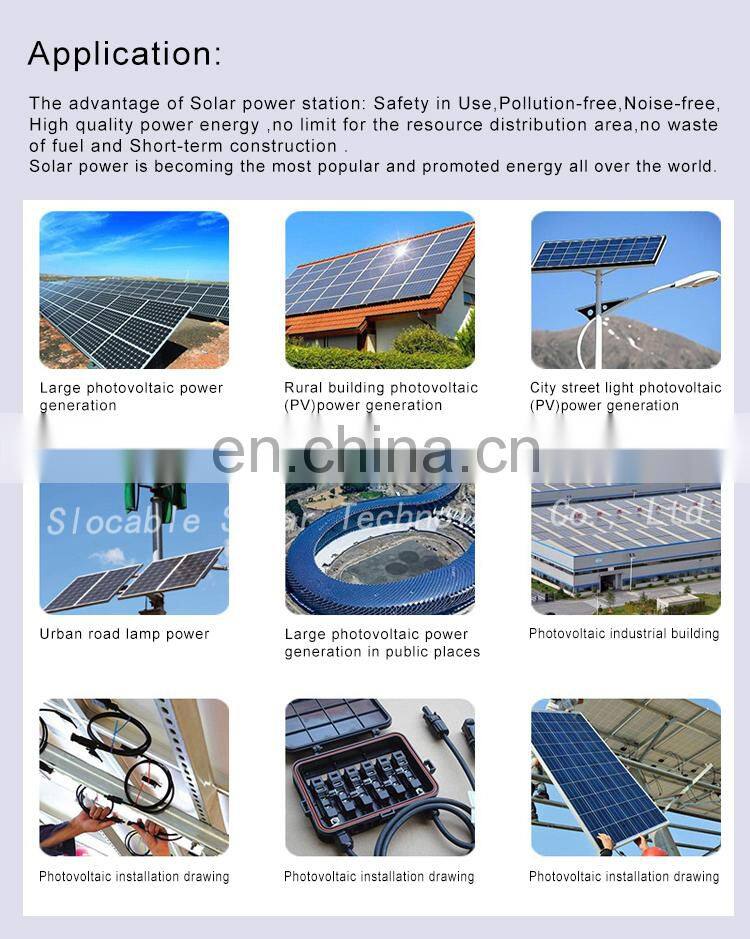

Our cooperation case
If you need further information,please feel free to contact us.
