TUV 1500VAC DC UV Resistance Double Insulation PV Solar Cable 6mm

FOB Price

US$ 0.63 - 0.67 / Meter

50 Meters(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

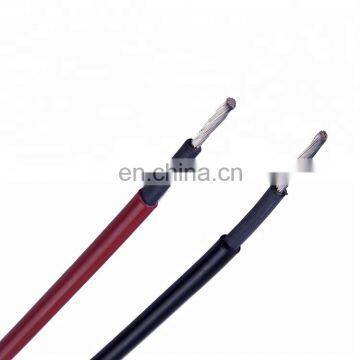

TUV 1500VAC DC UV resistance Double insulation PV Solar Cable 6mm

Technical Data

Technical Data of single core:

Size	Cross Section	Conductor Structure	Outer Diameter	Max. DC Resistance at 20℃	Rated Voltage	Rated Current
Size	mm2	mm	mm	Ω/km	V	A
1x2.5mm2	2.5mm2	49xΦ0.25	5.1	8.06	1000/1500	30
1x4.0mm2	4.0mm2	56xΦ0.285	6.1	4.97	1000/1500	50
1x6.0mm2	6.0mm2	78xΦ0.3	6.4	3.52	1000/1500	70
1x10mm2	10mm2	74xΦ0.4	7.3	2.12	1000/1500	95

Technical Data of double core:

Size	Cross Section	Conductor Structure	Outer Diameter	Max. DC Resistance at 20℃	Rated Voltage	Rated Current
Size	mm2	mm	mm	Ω/km	V	A
2x2.5mm2	2.5mm2	49xΦ0.25	5.1x10.9	8.06	1000/1500	30
2x4.0mm2	4.0mm2	56xΦ0.285	6.1x12.3	4.97	1000/1500	50
2x6.0mm2	6.0mm2	78xΦ0.3	6.4x12.9	3.52	1000/1500	70

Product Description

Advantage:

·Dual wall insulation.Electron beam cross-linked

·Excellent resistance to U.V,oil,greases,oxygen and ozone

·Excellent resistance to abrasion

·Halogen free, flame retardant,low toxicity

·Excellent flexibility and stripping performance

·High Voltage and Current carring capacity

·TUV approved

Description:

Copper wire : 99.7% copper, tinned	UV resistance
Insulation material : XLPE(XLPO)	High voltage and High current
Double walls insulated	Temperature range : -40℃~90℃

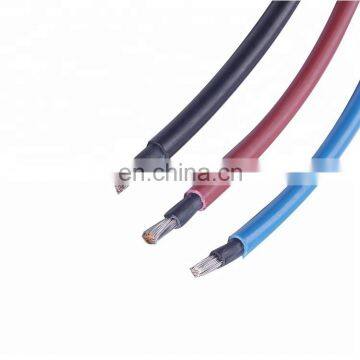

Halogen-free material	Color : Black / Red / Blue
Flame test according to : DIN EN 50265-2-1 / UL1571(VW-1)	Smallest permisssible bending radius : 5xD

Detailed Images

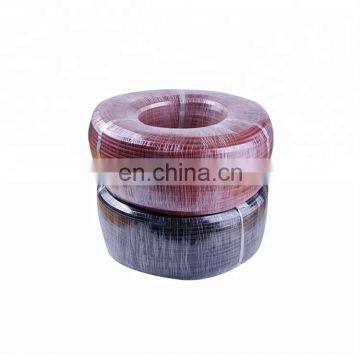

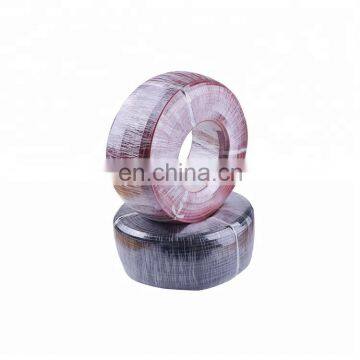

Pictures:
