1000V 1500V IP68 Waterproof PV Copper Wire 6mm2 DC Solar Cable
- 1000 Meter / Meters per Month
- T/T Credit Card
You May Like
-
IP68 Waterproof 1000V DC PVC/XLPE/XLPO 4mm PV Solar Cable 12 awg for Power System
-
2020 New Type Slocable UV Resistant EN50618 H1Z2Z2-K 12awg PV Solar Kabel 4mm
-
TUV Standard XLPE/XLPO Insulated Tin Copper Wire Solar PV Cable 2.5mm 14awg
-
Anti-crush 2x10AWG Solar Wires for Panel Connector
-
Durable Multiple-cores 2.5mm2 PV Power Cable
-
Reliable Dual Conductor pv cable 4mm2 12awg
Product Details
| Brand Name | Slocable | Place of Origin | Guangdong, China | |
| Model Number | CA106B-PE solar cable | Type | High Voltage | |
| Conductor Material | Copper |
Product Description

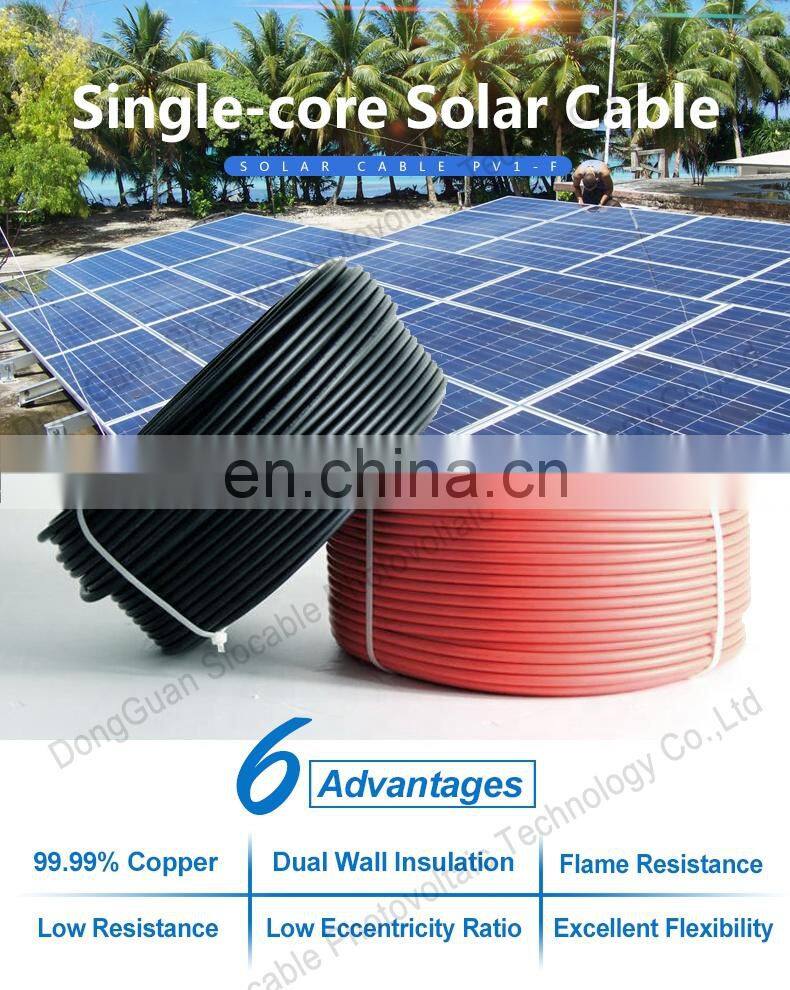

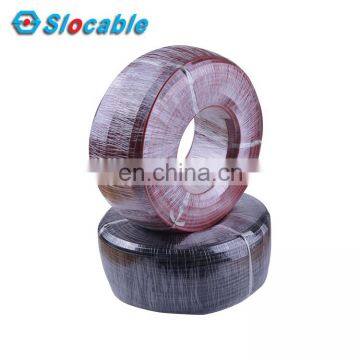

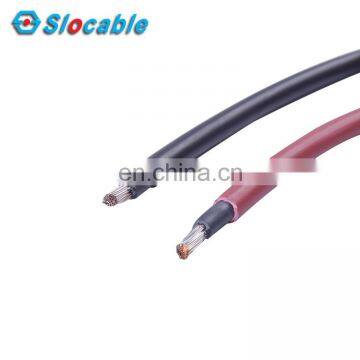

1000V 1500V IP68 Waterproof PV Copper Wire 6mm2 DC Solar Cable
Product Description
| Size | Cross Section | Conductor Structure | Outer Diameter |
Max. DC Resistance at 20℃ | Rated Voltage | Rated Current |
| mm² | mm | mm | Ω/km | V DC | A | |
| 1 x 2.5mm² | 2.5mm² | 49 x ∅0.25 | 5.4 | 8.06 | 1000/1500 | 30A |
| 1 x 4.0mm² | 4.0mm² | 56 x ∅0.285 | 6.1 | 4.97 | 1000/1500 | 50A |
| 1 x 6.0mm² | 6.0mm² | 78 x ∅0.30 | 6.4 | 3.52 | 1000/1500 | 70A |
| 1 x 10.0mm² | 10.0mm² | 74 x ∅0.40 | 7.3 | 2.12 | 1000/1500 | 95A |
Technical Date

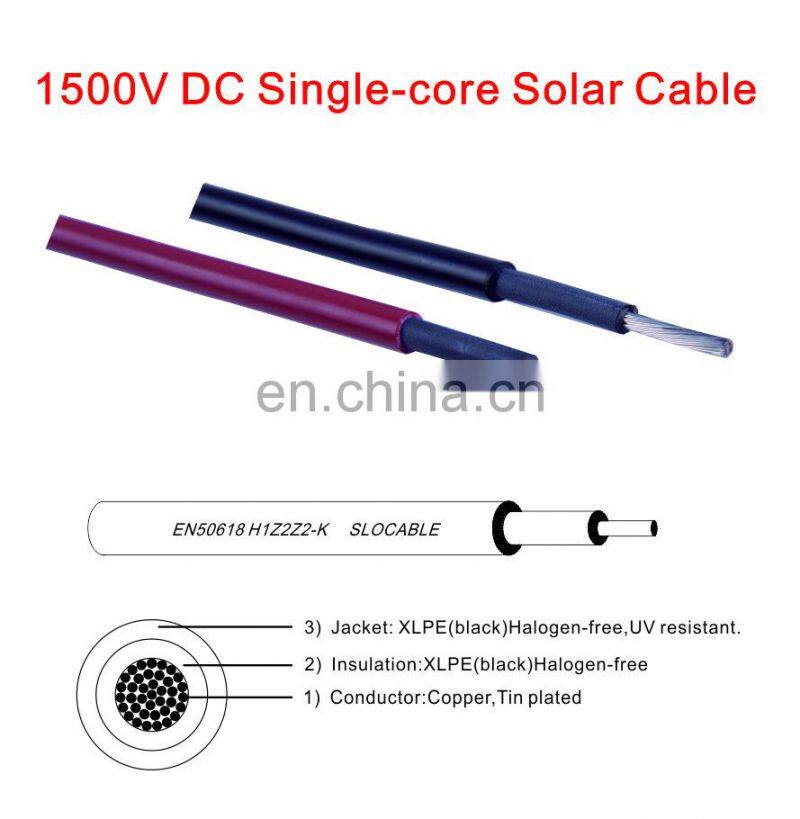

Conductor: 99.7% copper, tinned | UV resistance |
| Insulation material: XLPE(XLPO) | High voltage and High current |
| Double walls insulation | Temperature range: -40°C ~ +85°C |

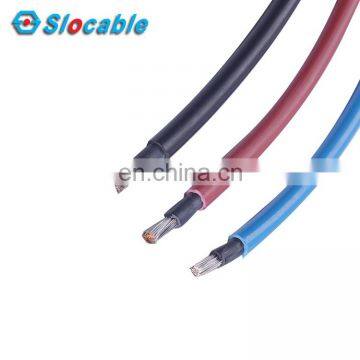

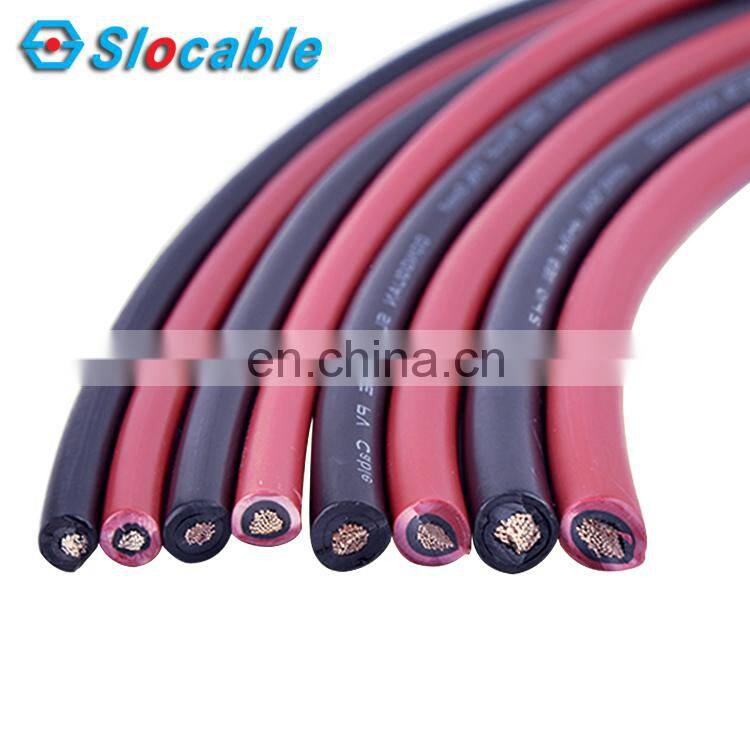

| Halogen-free material | Color: Black/Red/Blue |
| Flame test according to: DIN EN 50265-2-1 UL 1571(VW-1) | Smallest permissible bending radius: 5 x D |
Advantages of Product
- Dual wall insulation,Electron beam cross-linked.
- Resistance to UV,water,ozone,fluids,salt,general weathering.
- Halogen free,flame,retardant,low toxicity.
- Flexibility and stripping performance.
- TUV approved.
- High current carrying capacity.
- Resistance to abrasion.

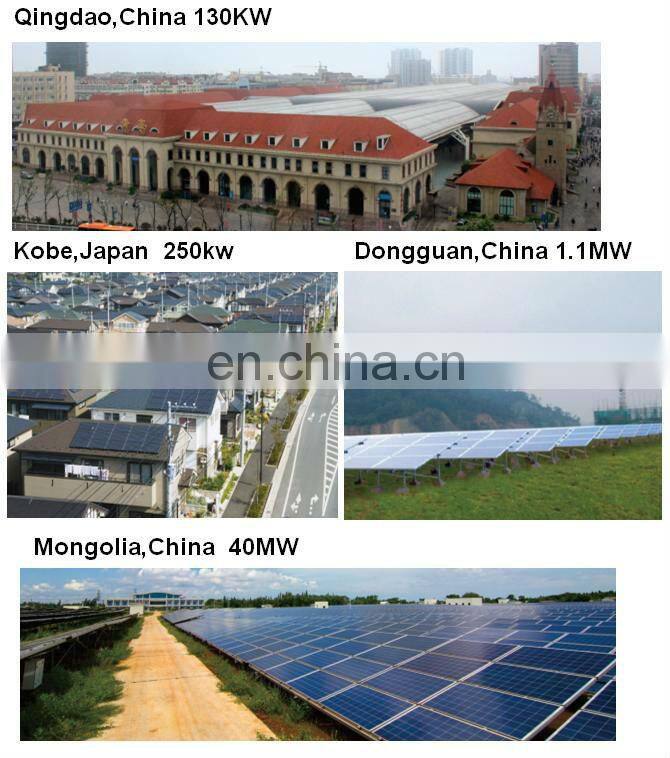

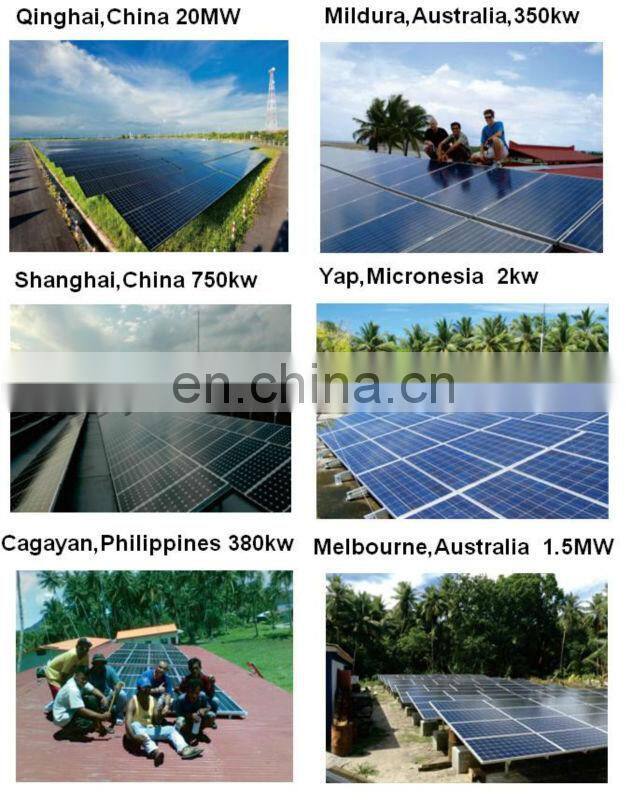

Cooperation Case
Frequently Asked Question
Q1: What is your company's Main Products ? You are the Manufacturer or the trader ?
Solar Cables, Solar Connectors, PV Fuse Holder,Circuit breakers and other
solar relative products.We're the Manufacturer with more than 11 years experience.
1) All raw material we selected the high quality one.
2) Professional & Skilful workers care every details in handling the producing.
3) Quality Control Department specially responsible for quality checking in each process.
Q4: Do you provide OEM Project Service ?
OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects.
What's more, our R&D team will give you the professional suggestions.
Q5: How Could I get the Sample?
We are honored to offer you samples,Samples is free provided,but need pay the courier freight.
If you have a courier account, you can send your courier to collect samples.
Q6: How long is the Delivery Time ?
1) For Sample: 1-3 Days ;
2) For small Orders: 3-10 Days;
3) For mass Orders: 10-18 Days.
